7-4 ELECTRICAL SYSTEM

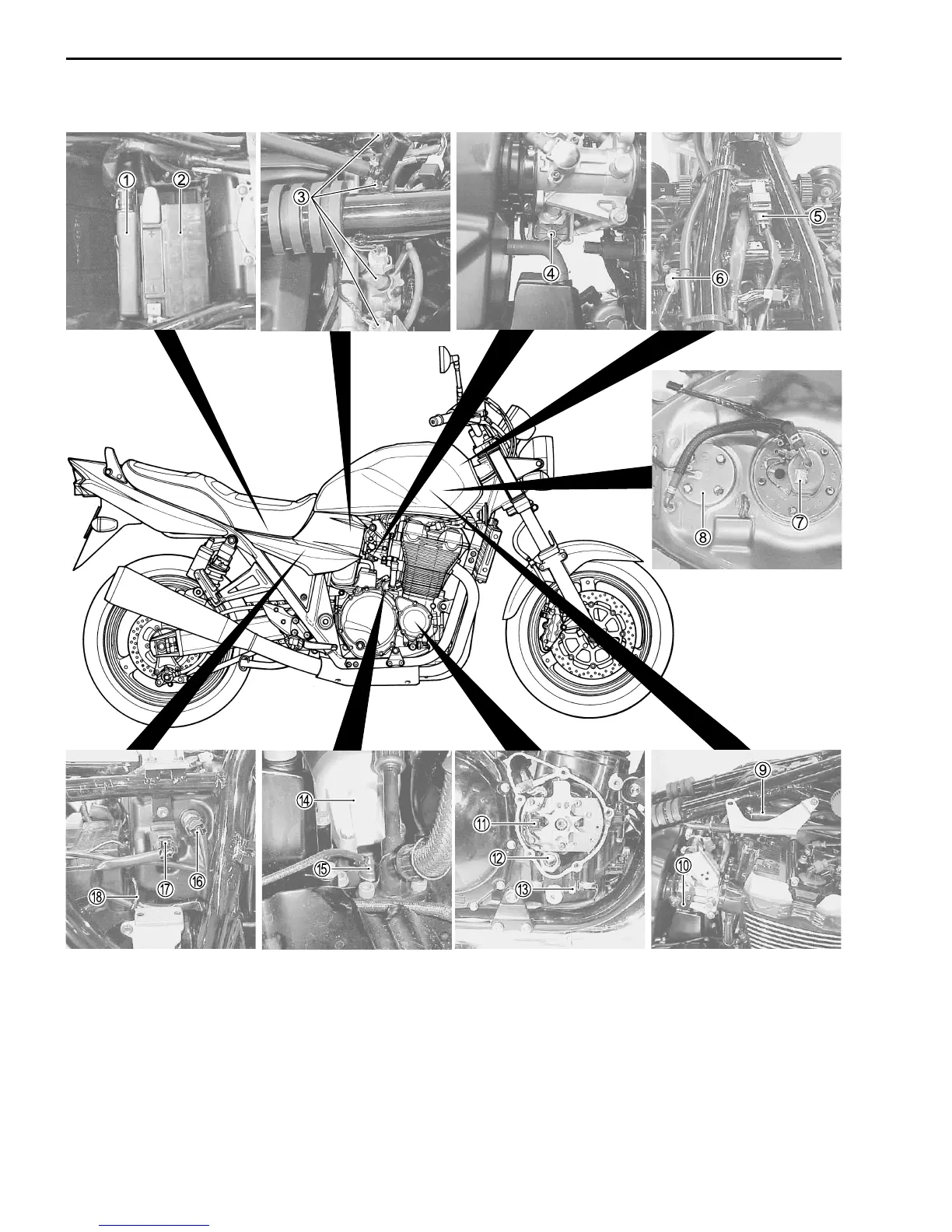

LOCATION OF ELECTRICAL COMPONENTS
1 ECM (Engine Control Module)
2 Battery
3 Fuel injector (4-46)
4 Actuator (4-42)
5 Intake air pressure sensor (4-33)
6 Cam position sensor (4-31)
7 Fuel pump (4-50)
8 Fuel level gauge
9 Ignition coil (No. 2 & 3)
0 Secondary throttle position sensor (4-43)
A CKP sensor
B Oil pressure switch
C Fan motor switch (5-10)
D Starter motor
E Oil temp. sensor (5-11)
F Intake air temp. sensor (4-38)
G Air pressure sensor (4-39)
H Tip over sensor (4-41)
