3-38 ENGINE
GEARSHIFT SYSTEM

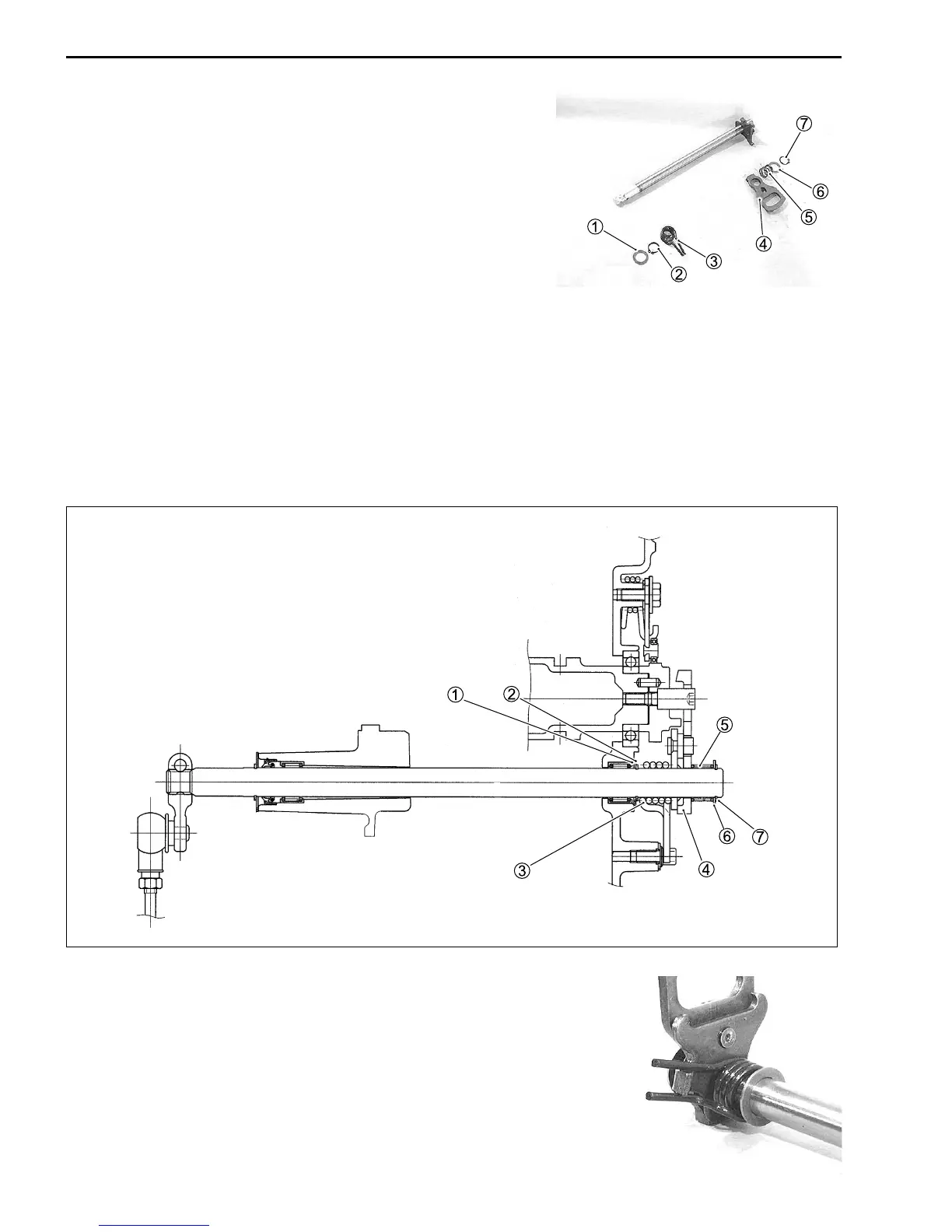

GEARSHIFT SHAFT/GEARSHIFT ARM DISASSEMBLY
• Remove the following parts from the gearshift shaft/gearshift
arm.
1 Washer 5 Plate return spring
2 Circlip 6 Washer
3 Gearshift shaft return spring 7 Circlip
4 Gearshift cam drive plate
\ 09900-06107: Snap ring pliers
GEARSHIFT SHAFT/GEARSHIFT ARM INSPECTION
• Inspect the gearshift shaft/gearshift arm for wear or bend.
• Inspect the return springs for damage or fatigue.
• Replace the arm or spring if there is anything unusual.
GEARSHIFT SHAFT/GEARSHIFT ARM REASSEMBLY
• Install the following parts to the gearshift shaft/gearshift arm as
shown in the illustration.
\ 09900-06107: Snap ring pliers
NOTE:
When installing the gearshift shaft return spring, position the stop-
per
of the gearshift arm between the shaft return spring ends.
