ENGINE 3-7

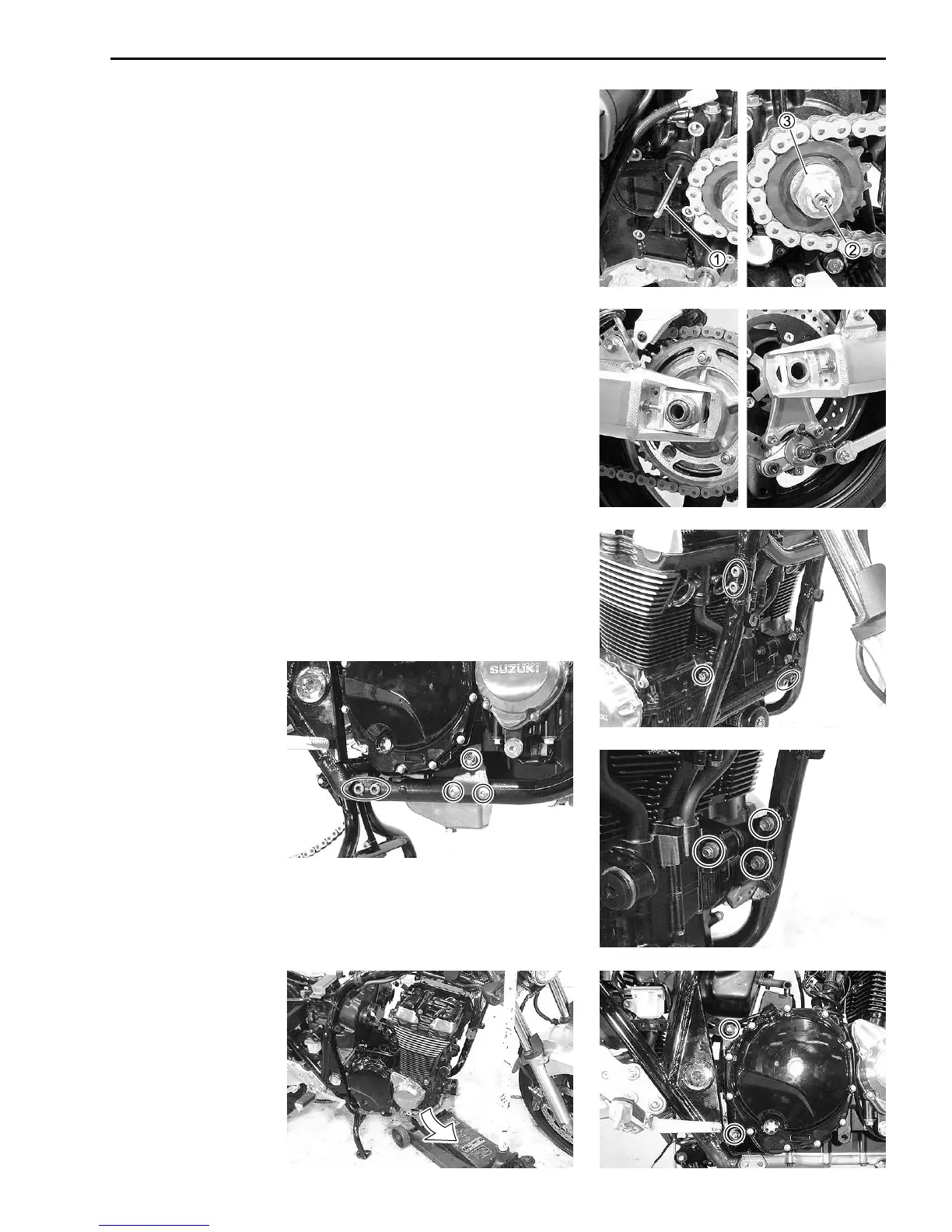

ENGINE MOUNTING
• Support the engine using an engine jack.
• With each engine mounting bolts and nuts removed,detach the
frame down tube .
• Remove the clutch push rod 1.
• Remove the speed sensor rotor 2.
• Remove the engine sprocket nut 3 and the washer.
• Remove the cotter pin. (For E-03, 28, 33)
• Loosen the rear axle nut and the rear torque link nut.
• Loosen the left and right chain adjusters.
• Push the rear wheel forward and make sure that the drive chain
has enough slack.
• Disengage the drive chain from the rear sprocket.
• Remove the engine sprocket.
• Draw out the engine mounting shafts and remove the engine
assembly from frame.
