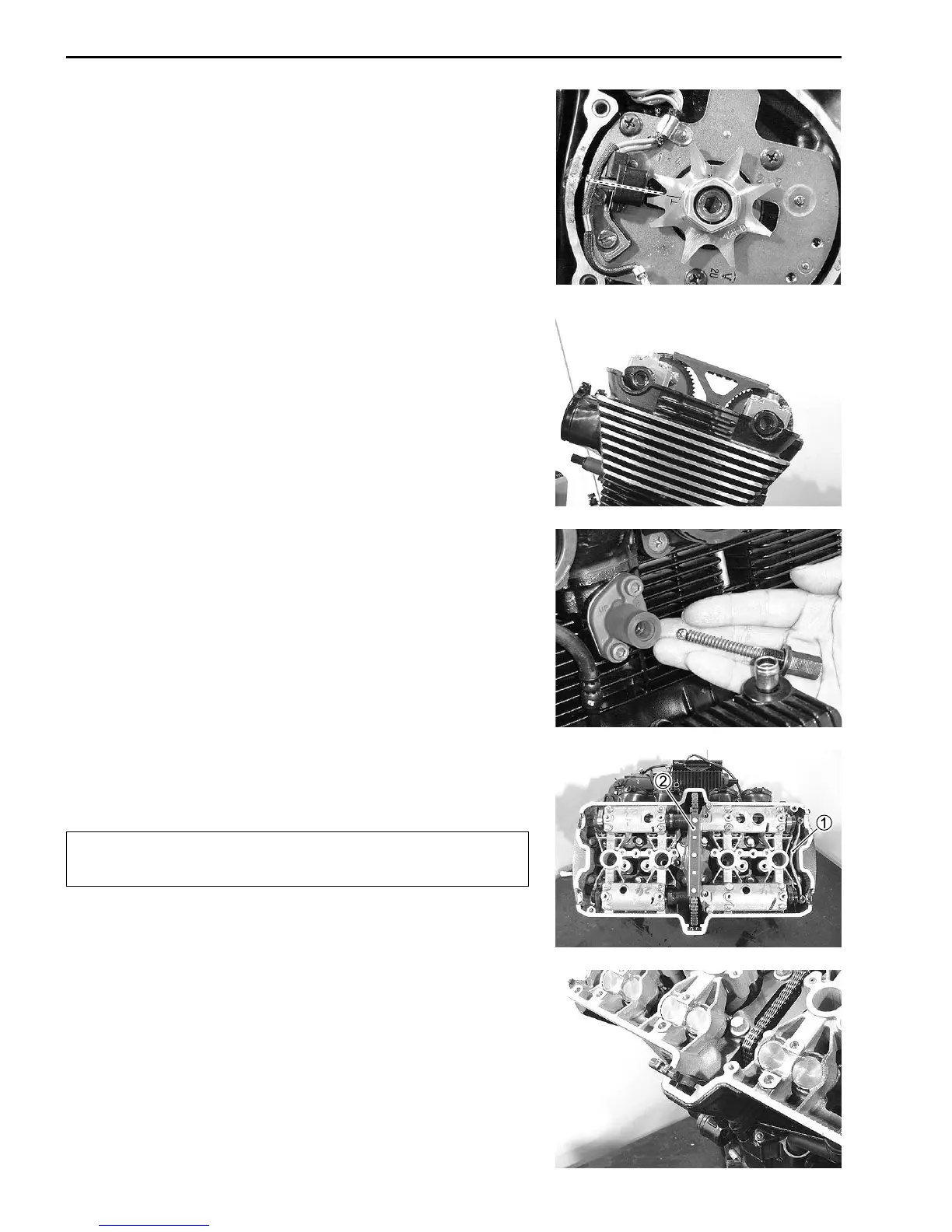

3-12 ENGINE
• Set the #1 cylinder at TDC.
Turn the crankshaft to bring the “T” line on the rotor to the tip of
signal generator, and the lines on camshaft facing outside.
• Remove the cam chain tension adjuster cap, the washer, the
spring and the steel ball.
• Remove the cam chain tension adjuster.
• Remove the oil pipe 1.
• Remove the cam chain guide 2 and camshaft journal holders.
Be sure to loosen the camshaft journal holder bolts
evenly by shifting the wrench diagonally.
• Remove the intake and exhaust camshafts.
• Remove the cam chain guide.
To Next Page
