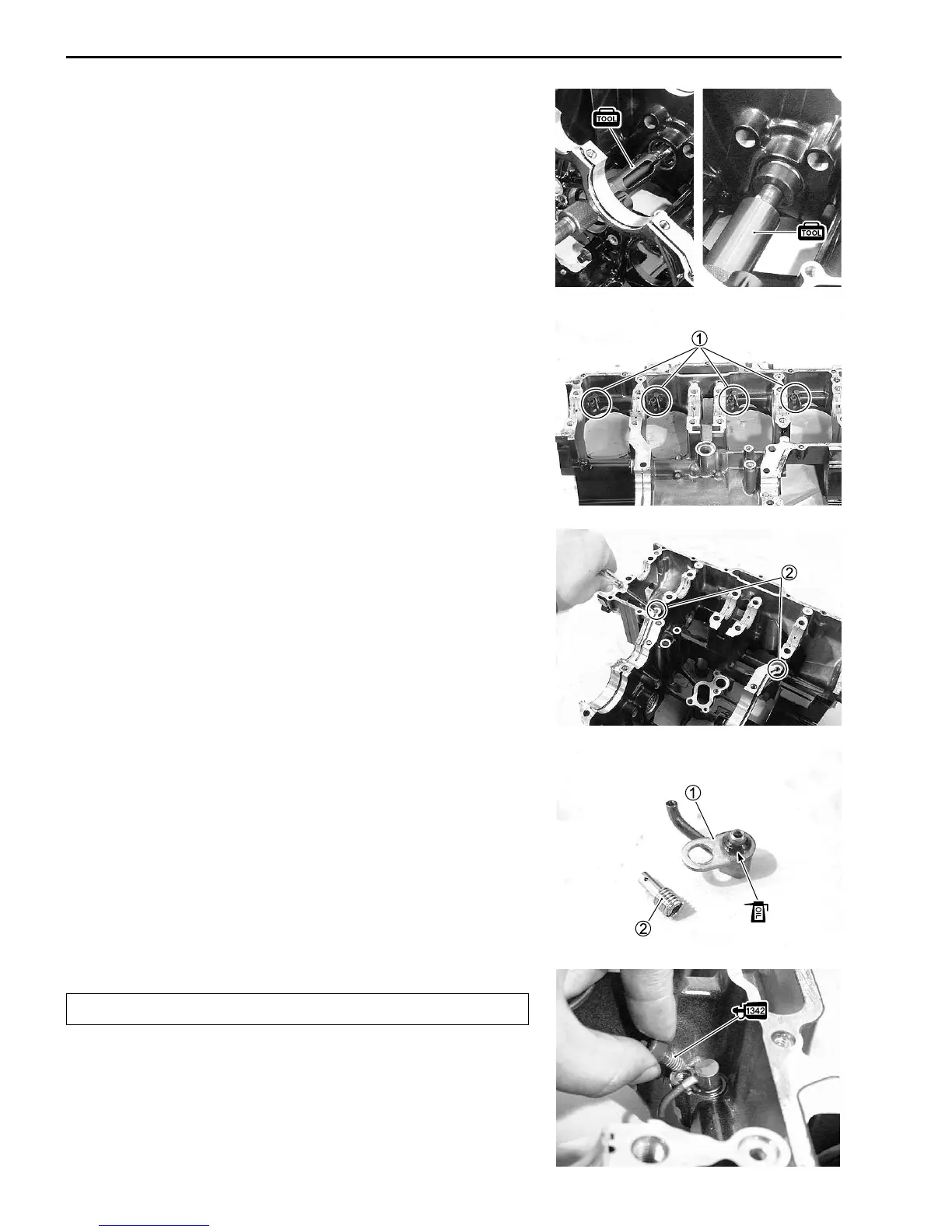

3-54 ENGINE
• Remove the gearshift cam bearing using the special tools.
\ 09923-74510: Bearing remover
09930-30102: Sliding shaft
• Install the bearing using the special tool.
\ 09913-70210: Bearing installer set (30 mm)
OIL JET
Removal
• Remove the piston cooling oil jets 1 from the upper crankcase.
• Remove the oil jets 2 (for transmission) from the lower crank-
case.
Inspection
• Check the oil jets for clogging.
• If they are clogged, clean their oil passage with a proper wire
and compressed air.
1 Piston cooling oil jet
2 Oil jet (#12) (For transmission)
Installation
• Fit the new O-rings to each piston cooling oil jet as shown and
apply engine oil to them.
Use the new O-rings to prevent oil pressure down.
• With the thread lock applied to the bolts, install each piston
cooling oil jet with the bolts.
J99000-32050: THREAD LOCK “1342”
" Piston cooling oil jet bolt: 10 N
.
m (1.0 kgf
.
m, 7.4 lb-ft)
