ENGINE 3-19
• Install the breather plate
2
.
• Apply a small quantity of THREAD LOCK SUPER “1322” to
the breather plate bolts and tighten then securely.
H99000-32080: THREAD LOCK SUPER “1322”
CYLINDER HEAD

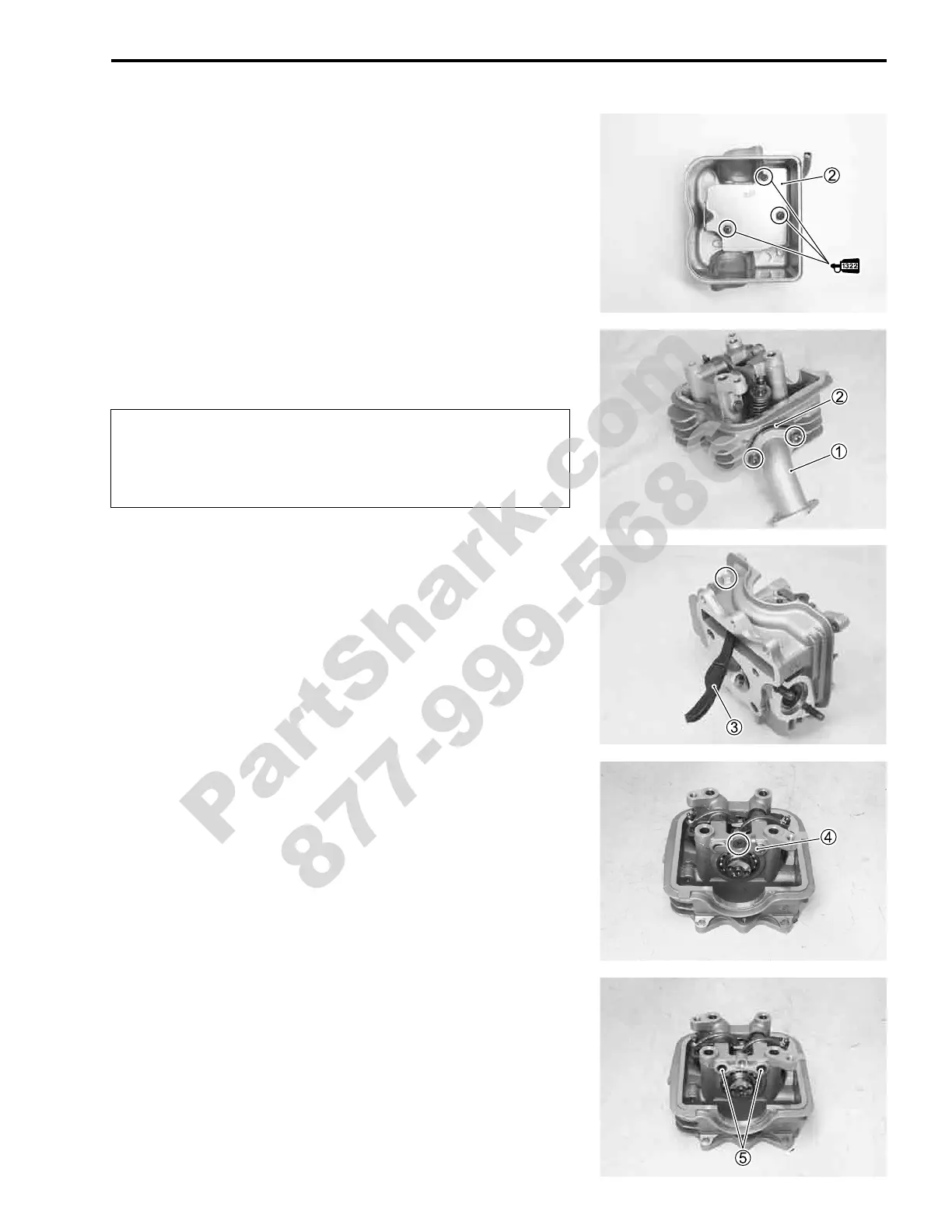

DISASSEMBLY
• Remove the intake pipe
1
and insulator
2
.
• Remove the cam chain guide
3
.
• Remove the camshaft retainer
4
.
• Remove the rocker arm shafts
5
.
Identify the position of each removed part. Organize
the parts in their respective groups (i.e., exhaust or
intake) so that they can be installed in their original
locations.
