1.2 Plugging the satellite module
The assembly must be carried out with the power OFF. The satellite module must be plugged on the « SAT COM » plug
of the TAC6 regulation board.
Caution: A bad positioning of the satellite module on circuit TAC6 can fatally damage both circuits!

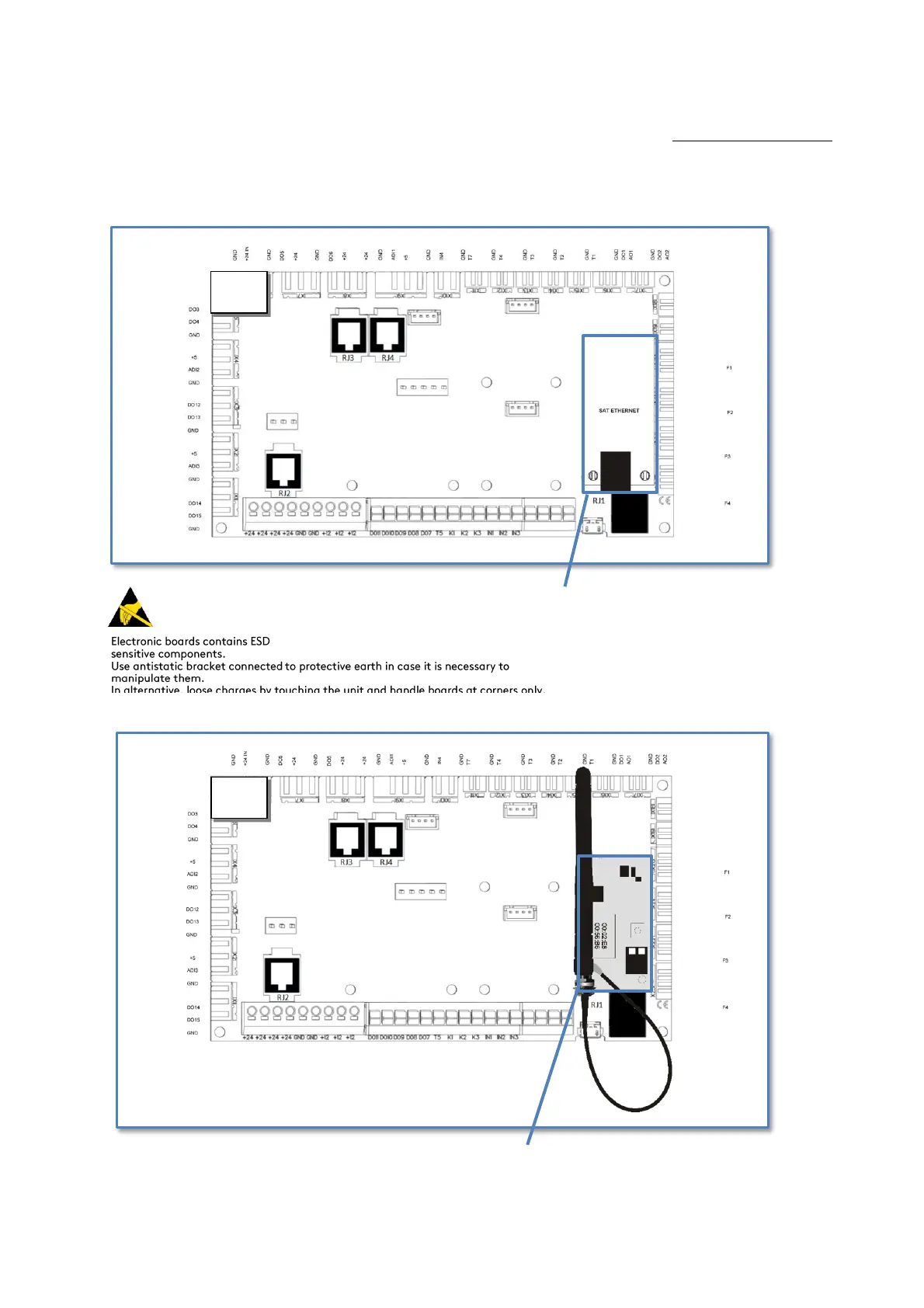

The following figure shows the installation of SAT ETHERNET and SAT WIFI on TAC6 control boards.
Figure 1 - Installation of SAT ETHERNET on TAC6 circuit
Figure 2 - Installation of SAT WIFI on TAC6 circuit
