1.3 Connections of the SATELLITE MODULES
1.3.1 SAT ETHERNET connection
The SAT Ethernet can be connected either to an existing local area network (LAN, see figure 5), or directly to a PC in a
Point-to-point link (see figure 6).
Just plug the Ethernet cable into the RJ45 connector on SAT ETHERNET and, only for Point-to-point connection with a
PC, connect the other extremity of the cable to the Ethernet network adapter of the PC.

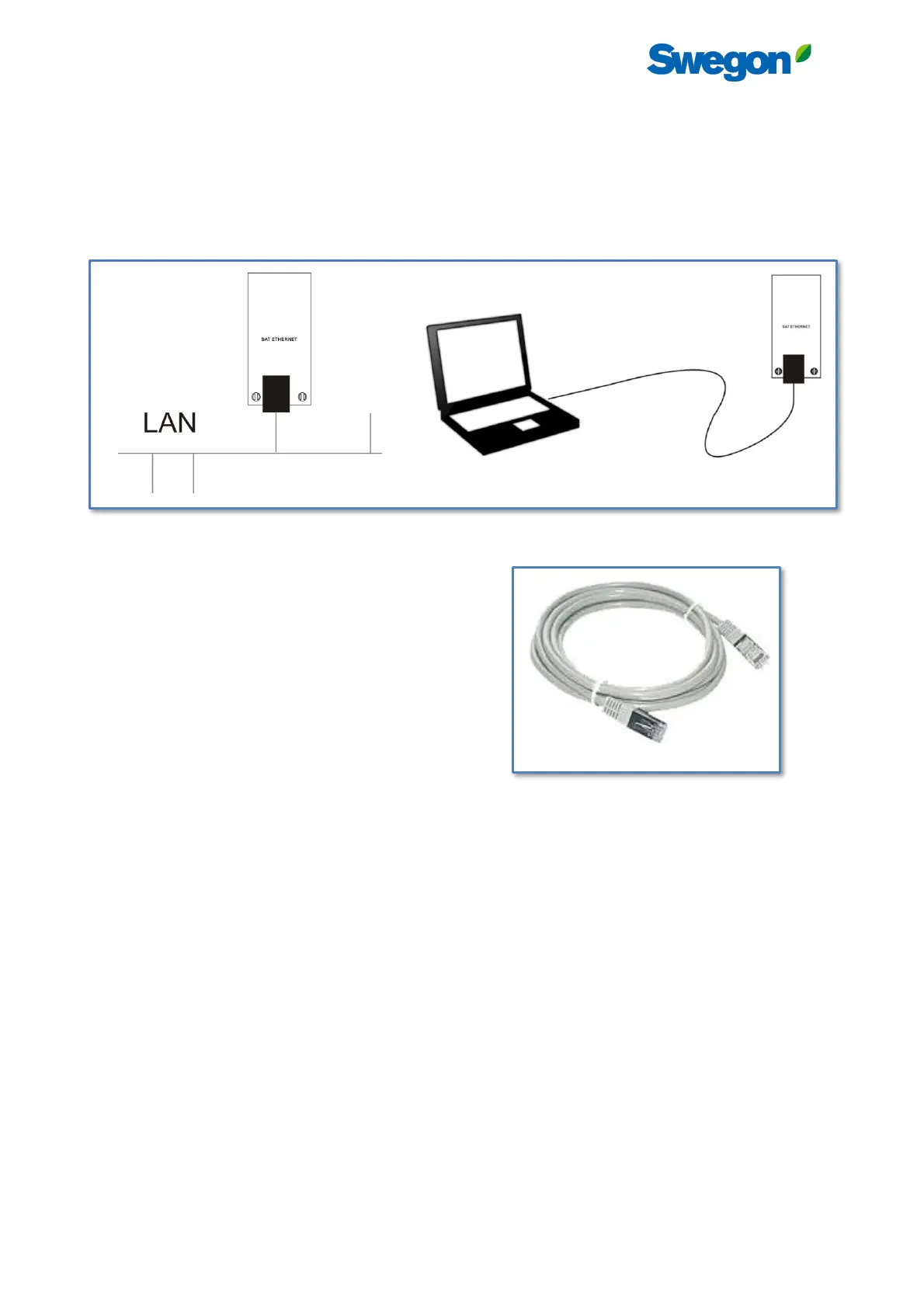

Figure 3 - SAT ETHERNET connection in a LAN Figure 4 - SAT ETHERNET Point-to-point connection with a PC
Cable Specifications:
• Ethernet cable, UTP category 5, 5e or 6 with RJ45
male connectors (figure 7).
• Maximal length = 100m.
Figure 5 - Example of UTP category 5 cable with RJ45
male connectors
