Swienty DANA api MATIC - Maintenance; Mounting of New Sealing; Mounting of New Shaft Seal and Ball Bearing

30
31
ENGLISH
MAINTENANCE
Other than cleaning the pump housing NO maintenance is necessary.
 ATTENTION:Thepumpmayneverrunwithoutallingsubstanceforalongerperiodof
time (i.e. without honey or similar substance), because this may cause it to get too hot
and thus damage the gears and/or shaft seals.

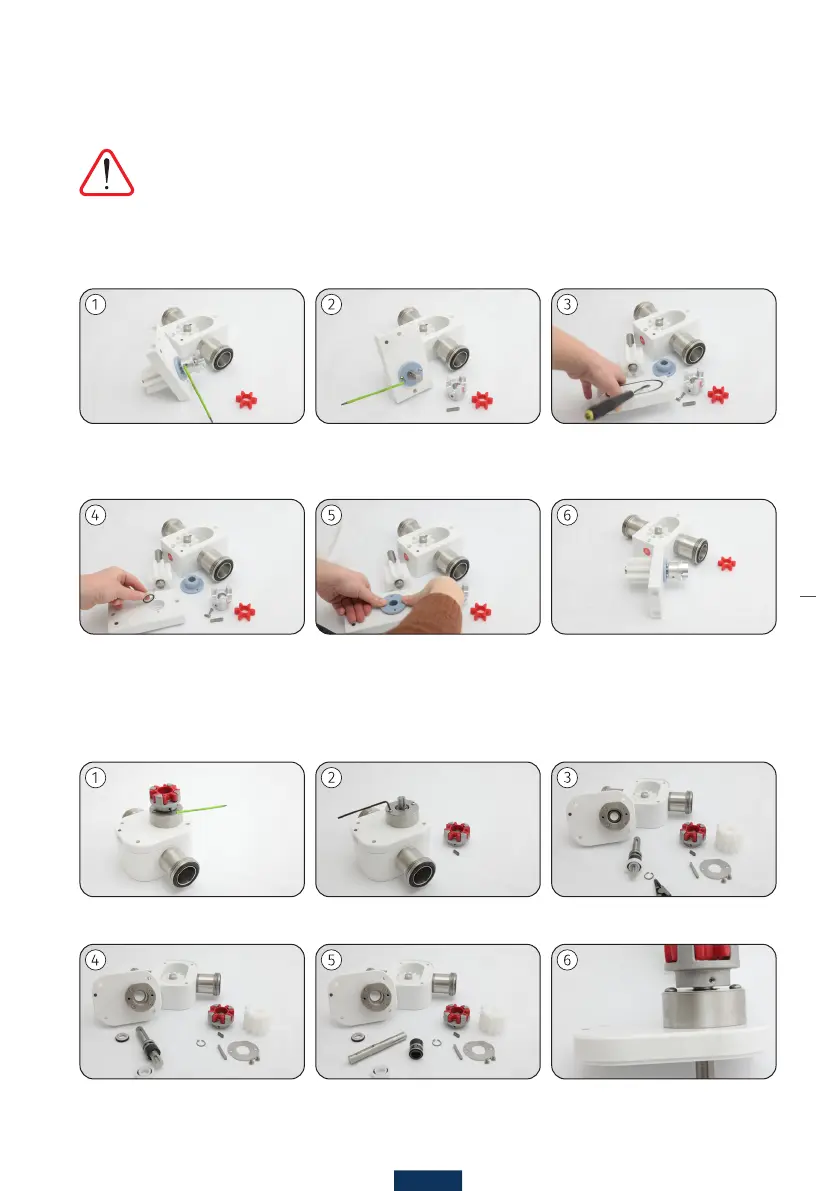

MOUNTING OF NEW SEALING - DANA API MATIC 1000
Unscrew the coupling from the
pump cover.
Unscrew the coupling.
Put the new sealing in, now you
can start to put the pump head
together again.
Remove the seal inside the bearing
housing and push/pull the gasket
and shaft seal off the drive shaft.
Then screw off the plastic part.
Then unscrew the cover plate.
The sealing gets positioned by
pressing the plastic part in with
your ngers.
Now replace shaft seal and ball bea-
ring with new ones and reassemble
following instructions bachwards.
Use a small, at screwdriver to
remove the sealing from the
backside of the pump cover.
Take the pump cover off, pull the drive
shaft out and remove the circlip.
The coupling needs to have approx.
5 mm distance from the plastic part
to ba able to rotate.
When mounting the coupling leave
a millimeter to the screws so it can
still rotate.
MOUNTING OF NEW SHAFT SEAL AND BALL BEARING - DANA API MATIC 2000+ AND 3000
