ENGLISH

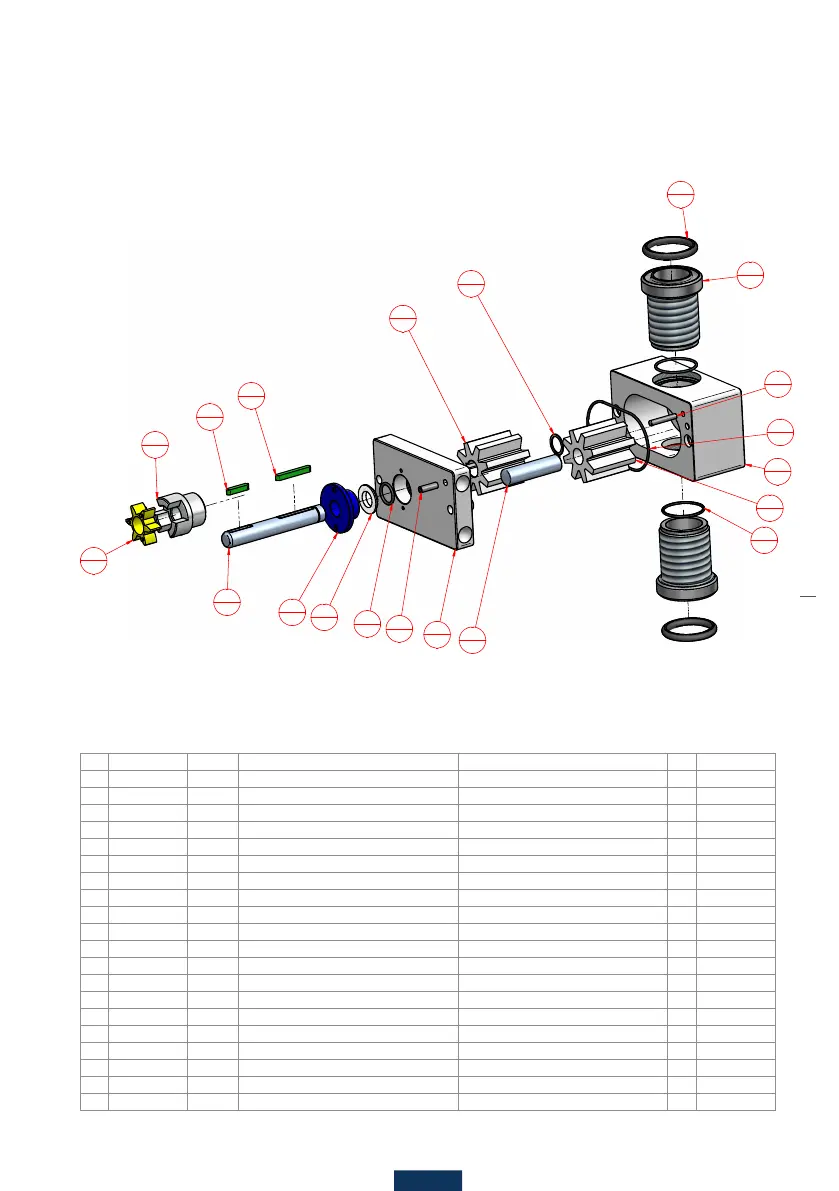

EXPANSION DRAWINGS
DANA api MATIC 1000
NO. DOC. NO. REV. NO. TITLE MATERIAL Qty. ITEM NO.
1 dt-054-010-1 09 Pump housing TECAPET White FG 1 210037
2 dt-054-011-1 06 Pump cover TECAPET White FG 1 210034
3 dt-004-015 00 Mupu holder Riatal LF ø50 1 60040159UC
4 dt-004-010A 00 Fitting Stainless steel, 304 Skal ø60x72 2 6004010A9F
5 dt-054-007 00 Drive shaft A304-slebet-h8 ø16x116 1 6004008AF
6 dt-004-009 00 Pulley shaft Stainless steel, 304 Blank ø16 h9x65 1 60040099F
7 Friløb 00 Gear ø51,5x52 Modul 5 8-DC-41,5 Con no. 60543015F 1 60543015F
8 Trækhjul 00 Gear ø51,5x52 Modul 5 8-DC-41,5 Con no. 60543015F 1 60543015F
9 Mupu seal 30312-0160-90-s Con no. 508201 1 508201
10 O-ring ø17,3x2,4 Con no. 508017 1 508017
11 Circlip ø16 A2 Con no. 701059D 1 701059D
12 O-ring ø37x2 Con no. 508037 2 508037
13 O-ring ø82x2 Con no. 508082 1 508082
14 O-ring BS 1.5 Con no. 500212 2 500212
15 Coupling pump housing Nav no. 504505A 1 504505A
16 Clow clutch element ø40 Nav no. 504509 1 504509
17 Feather key acid-proof 5x5x40 Con no. 701019D 1 701019D
18 Feather key acid-proof 5x5x25 Con no. 701017 1 701017
19 Magnet 5x30 pump fuse Nav no. 6004021 1 6004021
20 dt-054-035 00 Pin for magnet in pump housing Steel 1 6054035
