110
MOTORHOME CARE

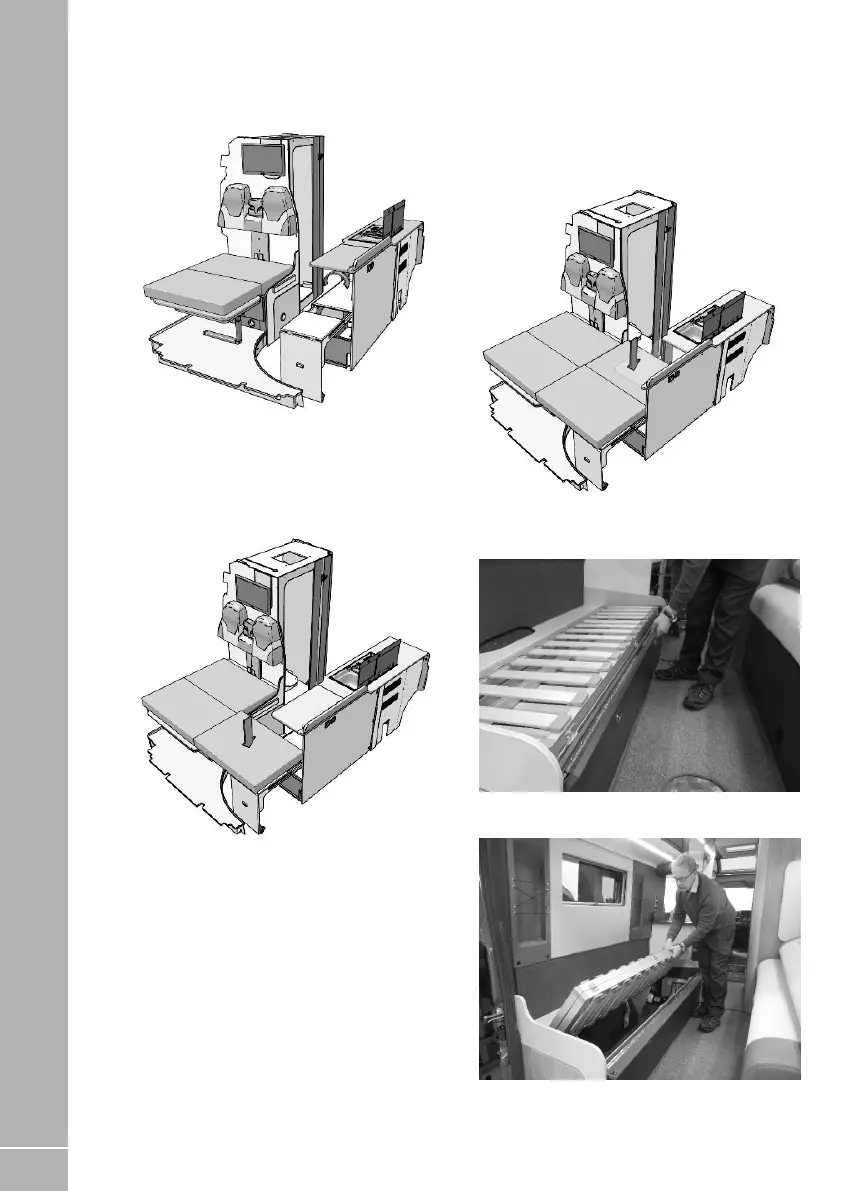

Step 6
Fold the front of the kitchen unit down into the
unit to form a flat base.
Step 7
Place the first cushion, with a board in the base,
at the front supported on the kitchen pull-out
and the table opposite.
Step 8
Place the remaining cushion, with a board in
the base, behind the first cushion supported
on the kitchen unit shelf and the support on the
bed end. The location buttons should stop the
cushions sliding out of position.
10.17 Rear Bed instructions
122/132/144/184
Step 1: Remove the Near side bed cushions and
release the front facia flap at the top of the bed
Step 2: Fold back the seat base.
