S306 with Pillar Plain Stand
III. Assembling the microscope
The components for the microscope are shipped detached for protection. Open the
Styrofoam packing with care and do not leave any components attached to the packing
being removed. Do not discard any of the packing materials until all of the components
have been identified. Remove the plastic covers from the microscope.
Locate the power cord and plug it in. Locate the power switch on the top of the stand and,
if applicable, select the incident or transmitted illumination as needed.
IV. Using the microscope
Interpapillary adjustment
Adjust the two eyepiece tubes until only one circular field can be seen through the two
eyepieces. If two separate circles appear, the interpapillary distance is too large; if two
overlapping circles appear, the interpapillary distance is too small. The eyepiece tube
allows a flexible adjustment of the interpapillary distance between 54 and 76mm.

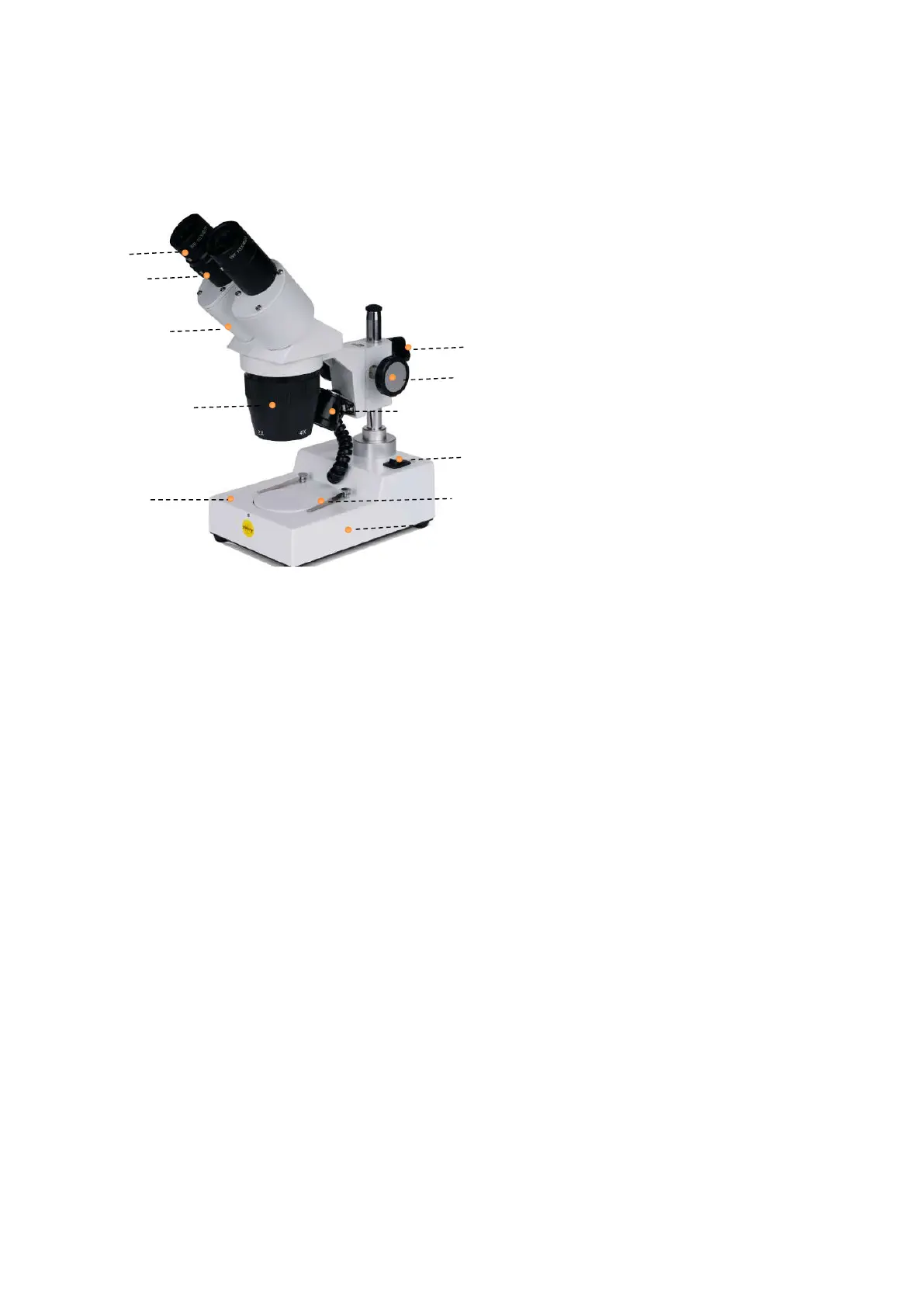

(1) Eyepiece
(2) Diopter adjustment
(3) 360° Rotatable Binocular head
(4) 2X/4X objectives turret
(5) Focusing knob
(6) Incident light
(7) Power switch
(8) Stage clips
(9) Stage plate
(10) Pillar plain stand
