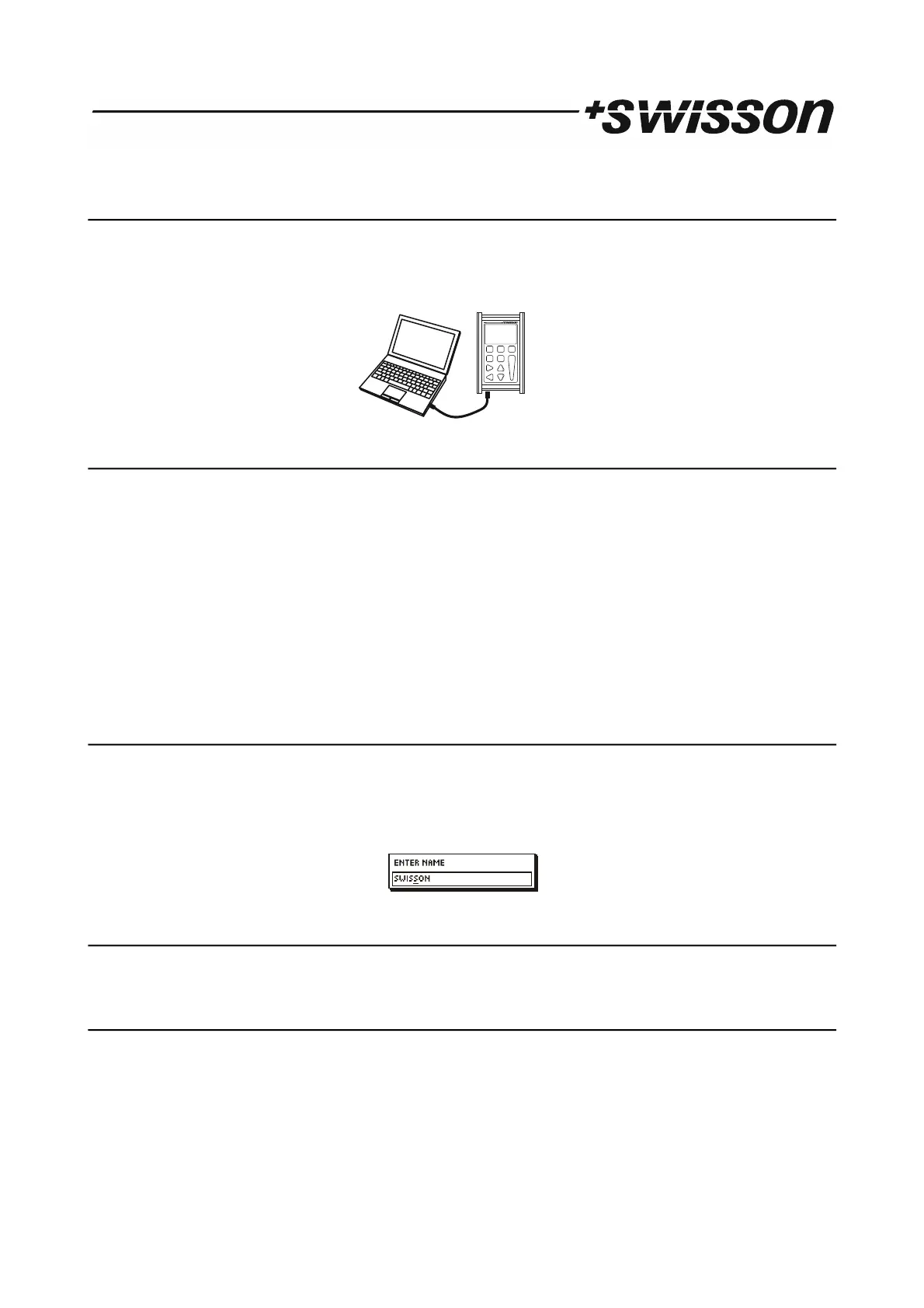

19 Connect to PC
The XMT PC Software can be downloaded from the Swisson website. www.swisson.com
• Install the XMT PC Software before connecting the XMT to the PC.
• Connect the XMT to the PC with a USB cable.
• Press the [MODE] button and choose PC Connection. Press now the [OK] button to enter the PC connection mode.
20 OPTIONS
Press the [MODE] button and choose OPTIONS. Now, press the [OK] button to enter the options menu.
The options menu has following items.
ENTER NAME Personalize your XMT.
LOAD DEFAULT OPTIONS Load the factory defaults.
SHOW BINARY ADDRESS Show a binary representation of the address in the DMX receive mode and in the DMX
send mode.
SHOW MIN MAX Show minimum and maximum values in the DMX receive mode.
CONTRAST Contrast setting for LCD display.
POWER SETTINGS Configure power settings of the XMT.
FIRMWARE UPDATE Mode to perform firmware update of the XMT.
20.1 ENTER NAME
Choose the ENTER NAME item with [UP] or [DOWN] button
Press [OK] to enter the name dialog.
Select the cursor position by pressing [CH+] or [CH-] and change the character at the cursor position using [+] and [-].
Pressing [0] will set the character to a blank space.
When done press [OK] and the name will be saved. Press [CANCEL] to keep the old name.
The name is displayed on the boot screen every time the XMT is turned on.
20.2 LOAD DEFAULT OPTIONS
• Choose the LOAD DEFAULT OPTIONS item with [UP]/[DOWN] buttons.
• Press [OK] to load the factory defaults.
20.3 SHOW BINARY ADDRESS
• Choose the SHOW BINARY ADDRESS item with [UP] or [DOWN] buttons.
• Press [OK] to select between NO, YES 0 and YES 1.
NO Binary address display is disabled.
YES 0 Binary address display is enabled. Address is displayed as 0-based binary.
Address 1 to 512 are mapped to the range of 0 to 511 for binary display. This is useful for 9bit dip
switches on DMX fixtures.
YES 1 Binary address display is enabled. The range of the binary addresses is 1 to 512.
18 PRELIMINARY
