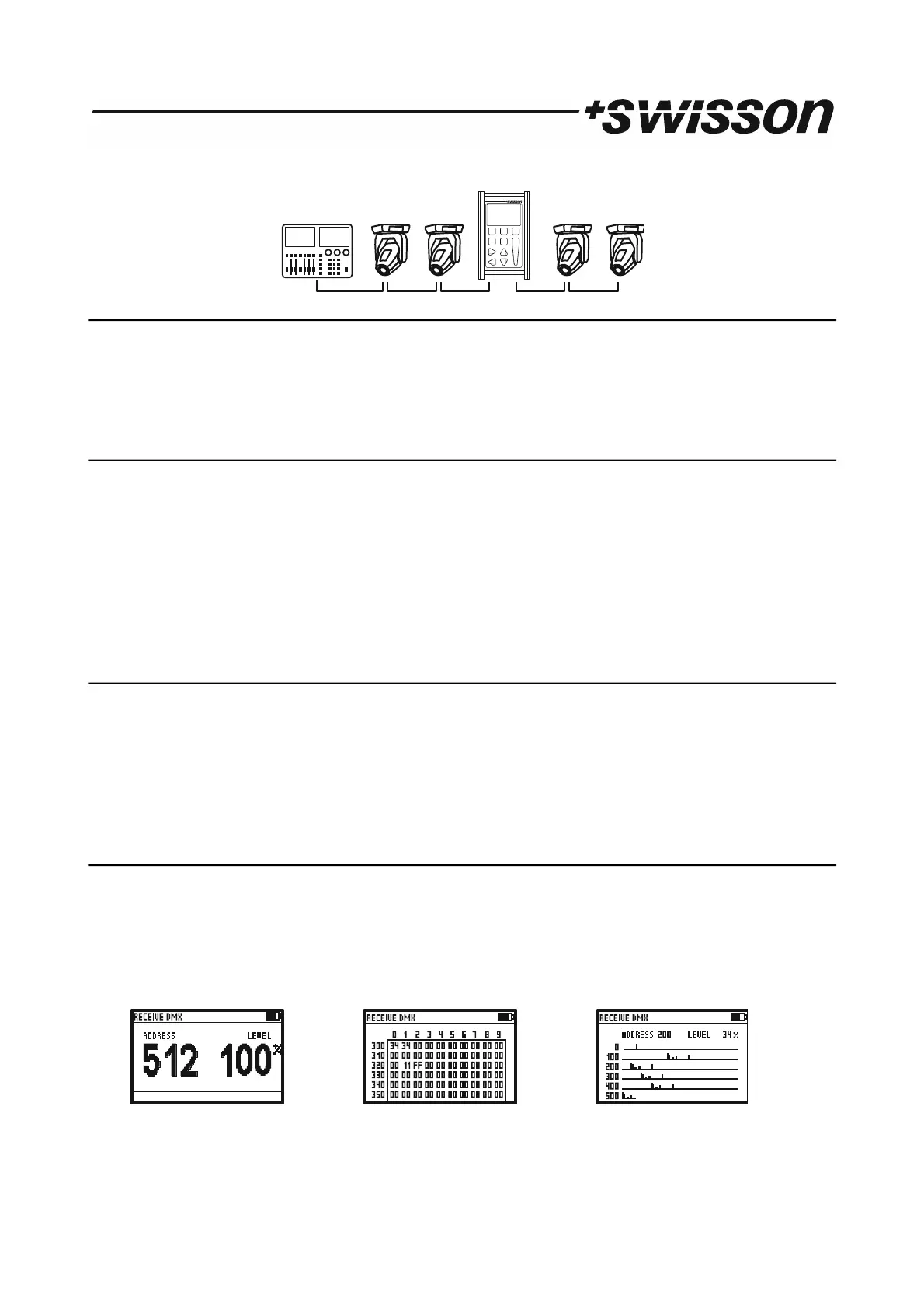

In receive mode, the received signal will be amplified and sent to the DMX out port. This allows you to connect the
XMT in the middle of the DMX line and the signal will be terminated at the DMX in port of the XMT.
11 Receiver Options
When the XMT is in receive mode, press the [OK] button to enter the special settings menu.
STORE SCENE Create a snapshot of the incoming DMX data and store the values to a scene.
SHOW LEVEL AS Choose whether the level is displayed in percents, decimal or hexadecimal.
DISPLAY MODE Select one of the following view types: Normal view, Table view or Graphical view.
ADDRESSES Navigate through all channels or only through channels receiving a non-zero DMX value.
11.1 STORE SCENE
In receive DMX mode:
• Press [OK] to access receiver options.
• Press [OK] again to access the list of scenes.
• Choose a scene with [UP] and [DOWN] buttons.
• Press [OK] to confirm.
• Press [CANCEL] twice to exit the receiver options.
There are 32 scenes which are accessible from the receive DMX mode, as well as from the send DMX mode. Storing
the received signal to a scene overwrites all 512 channels of that scene with the currently received values. The scenes
can be combined to a sequence by using the sequence editor. See chapter SEQUENCE.
11.2 SHOW LEVEL AS
In receive DMX mode:
• Press [OK] to access the receiver options.
• Choose the SHOW LEVEL AS item with [UP] or [DOWN] buttons.
• Press [OK] to change the level display format.
• Press [Cancel] to exit the receiver options.
The levels can be displayed in percent, decimal or hexadecimal.
In the Table view, the levels are always displayed in percents and 100% is shown as “FL”.
11.3 DISPLAY MODE
In receive DMX mode:
• Press [OK] to access the receiver options.
• Choose the DISPLAY MODE item using the [UP] and [DOWN] buttons.
• Press [OK] to change the display mode.
• Press [Cancel] to exit the receiver options.
8 PRELIMINARY
