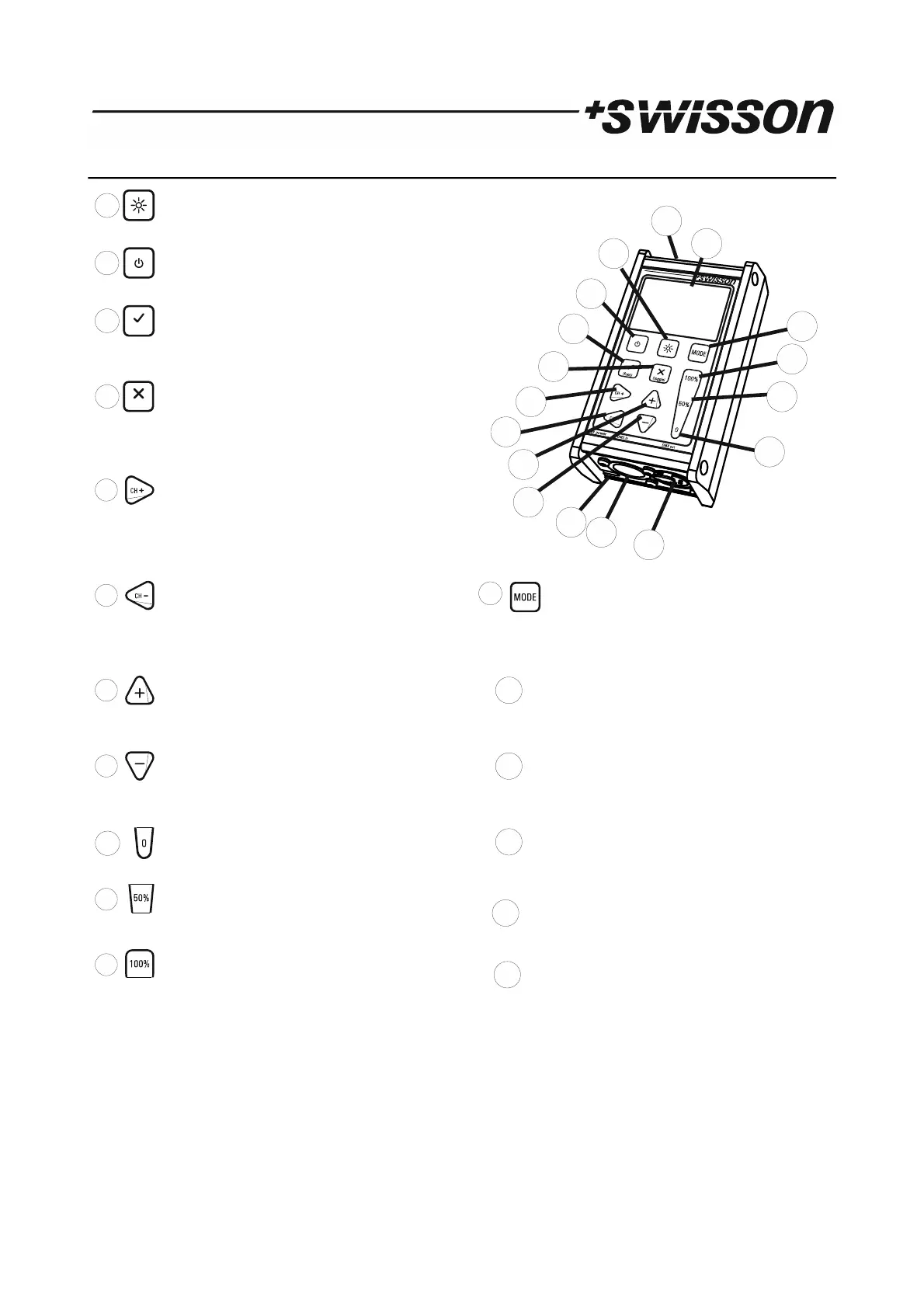

5 Overview
BACKLIGHT
With this button the backlight can be
switched on or off
POWER
With this button the device can be
switched on or off
OK [OK]
Choose a menu point with this button
Enter special settings
Enter the special settings menu
Cancel [CANCEL]
Escape from a menu point with this
button
Toggle
Toggle values in send mode
CHANNEL + [RIGHT]
Increase the DMX channel (address)
NAVITGATE
Use to navigate to the right in the user
menu
CHANNEL - [LEFT]
Decrease the DMX channel (address)
NAVITGATE
Use to navigate to the left in the user
menu
MODE
The operating mode can be selected by
pressing the mode button
VALUE + [UP]
Increase DMX value
NAVITGATE
Use to navigate up in the user menu
DISPLAY
LCD display with LED backlight
VALUE - [DOWN]
Decrease DMX value
NAVITGATE
Use to navigate down in the user menu
MICRO-USB SOCKET
Micro-USB socket for power-supply, PC
connection and firmware-update
CHANNEL to 0%
Set the DMX value to 0%
(Fast Access Button)
DMX IN
Connector to receive DMX
CHANNEL to 50%
Set the DMX value to 50%
(Fast Access Button)
DMX OUT
Connector to send DMX
CHANNEL at 100%
Set the DMX value at 100%
(Fast Access Button)
BATTERY
Battery compartment for 9V block battery
5 PRELIMINARY
