5.2.1 Easy Fit Regular/Thin Magnet Disk
Magnet disc

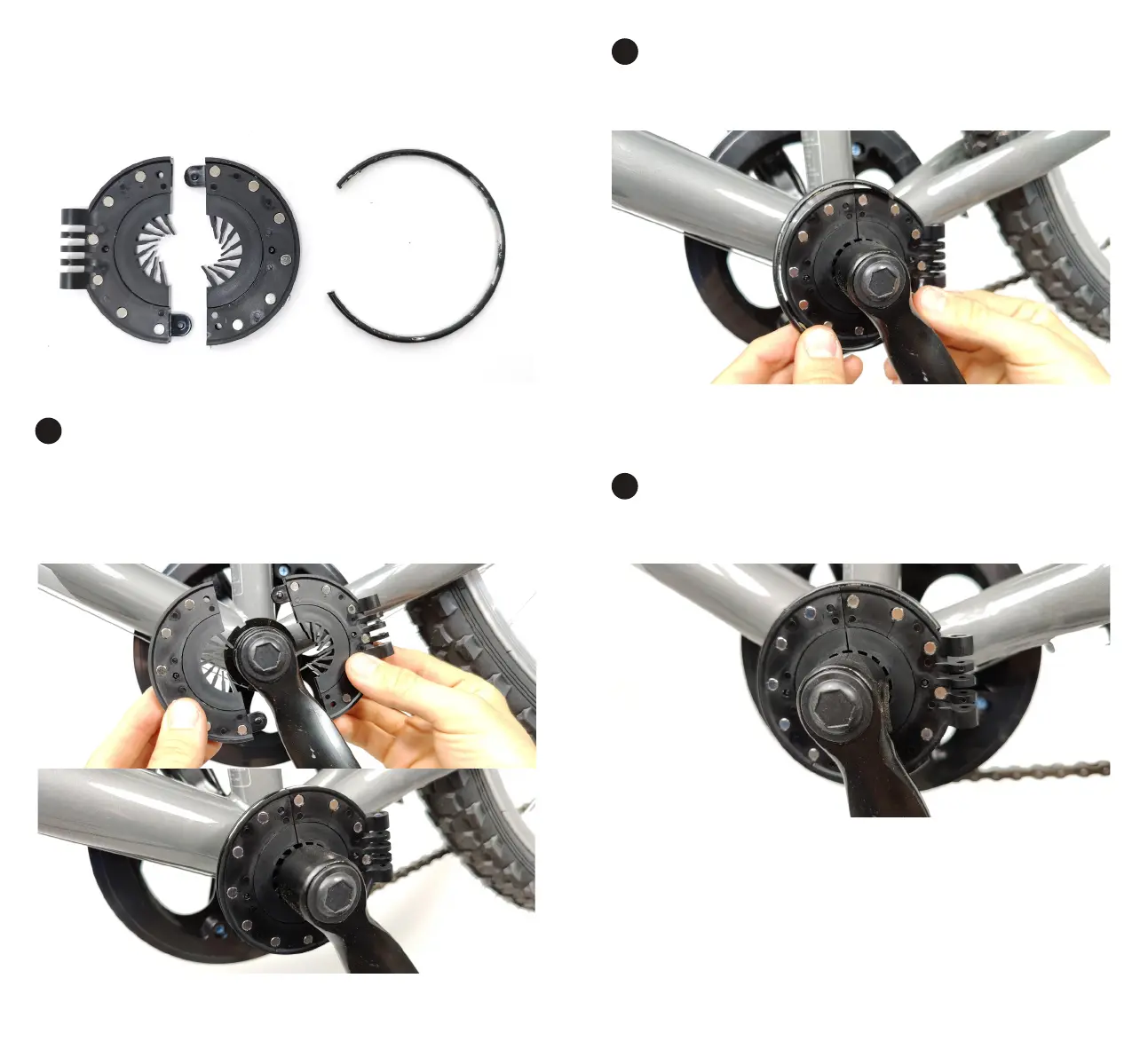

- Fit the magnet disk either side of the crank axle.
- The side of the bike should be opposite the side
with the chain.
- The smooth side of the magnet disk must be
facing the sensor.
Fit Retention Ring
Fit the retention ring around the magnet disk to secure it
in place. It’s easiest to start on one side and work the ring
around until you get to the other end.
Check Correctly Installed
Below is how the magnet disk should look once properly
fitted:
Troubleshooting
If the magnet disk doesn’t fit, check the troubleshooting section.
