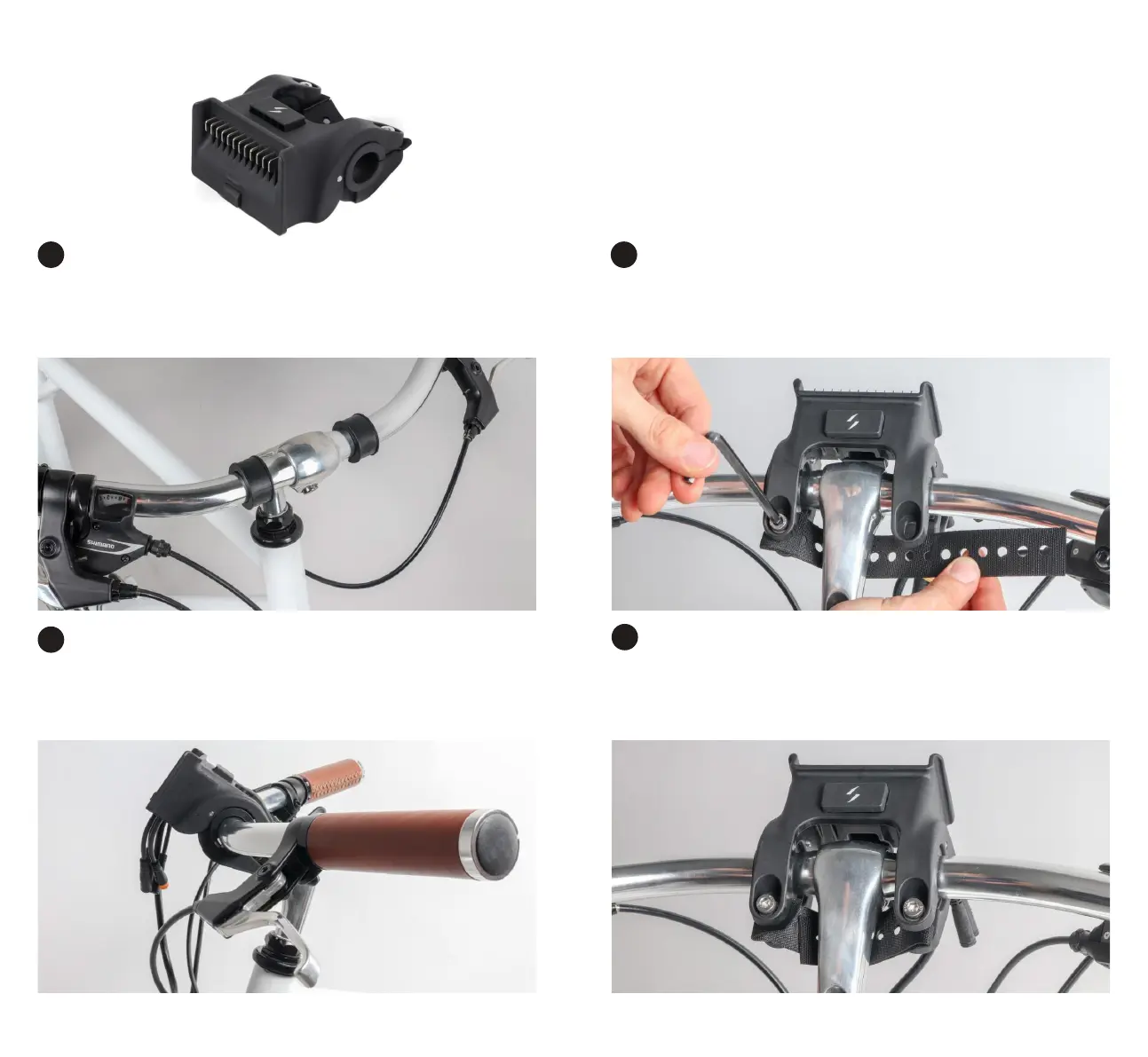

5.3 Quick Connect Handlebar Mount
Add rubber spacers to handlebars
- Fit the rubber handlebar spacers onto the handlebars.
(22mm diameter handlebars only).
- For larger sized handlebars (e.g. on mountain bikes) they
are not required.
Place mount onto handlebars angled upwards 45°
- Fit the Quick Connect Handlebar Mount over the spacers
onto the handlebar.
- Tilt the mount up approximately 45°, this is necessary to
ensure correct final installation.
2
1
Fit the Anti-Twist Strap
- Pass the Anti-Twist Strap underneath the handlebar stem.
Tighten strap in place
- Secure the strap on to the other arm of the mount. Use the
closest holes possible with the mount tilted upwards. Fold
the strap back on itself to increase its strength and keep it
looking tidy. Tighten the screws.
3
4
