5. Engine Removal
5-5

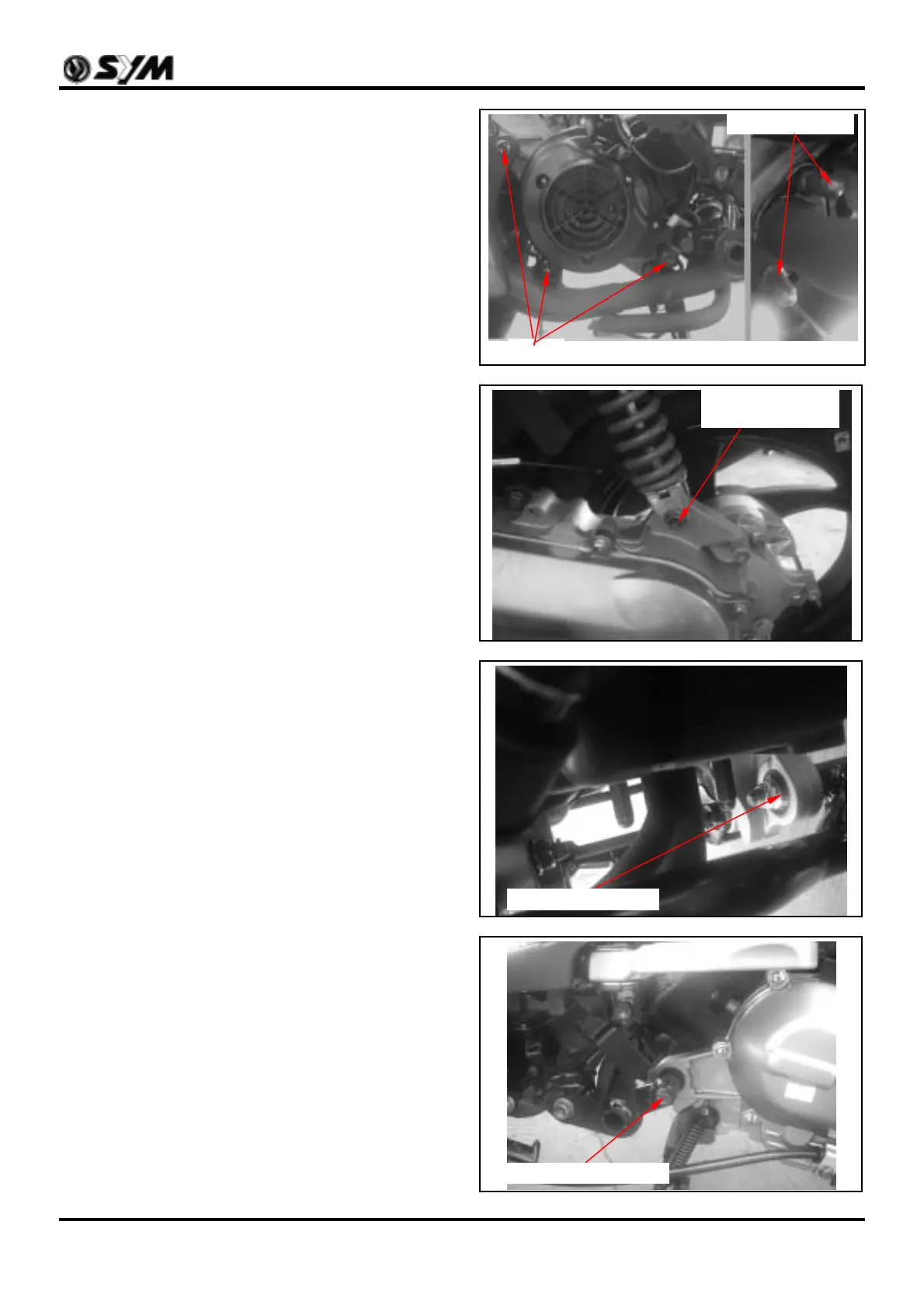

Remove two exhaust pipe connection nuts.
Remove three bolts beside fan cover and exhaust
pipe.
Support the engine and then remove cushion
lower mounting bolt.
Remove engine mounting nut and bolt. (Each side
1 bolt and 1 nut)
Remove the engine.
Engine mounting nut
Rear cushion lower
mounting bolt
Engine mounting bolt
3 bolts
Connection nuts
