6. Cylinder Head/Cylinder/Piston
6-3

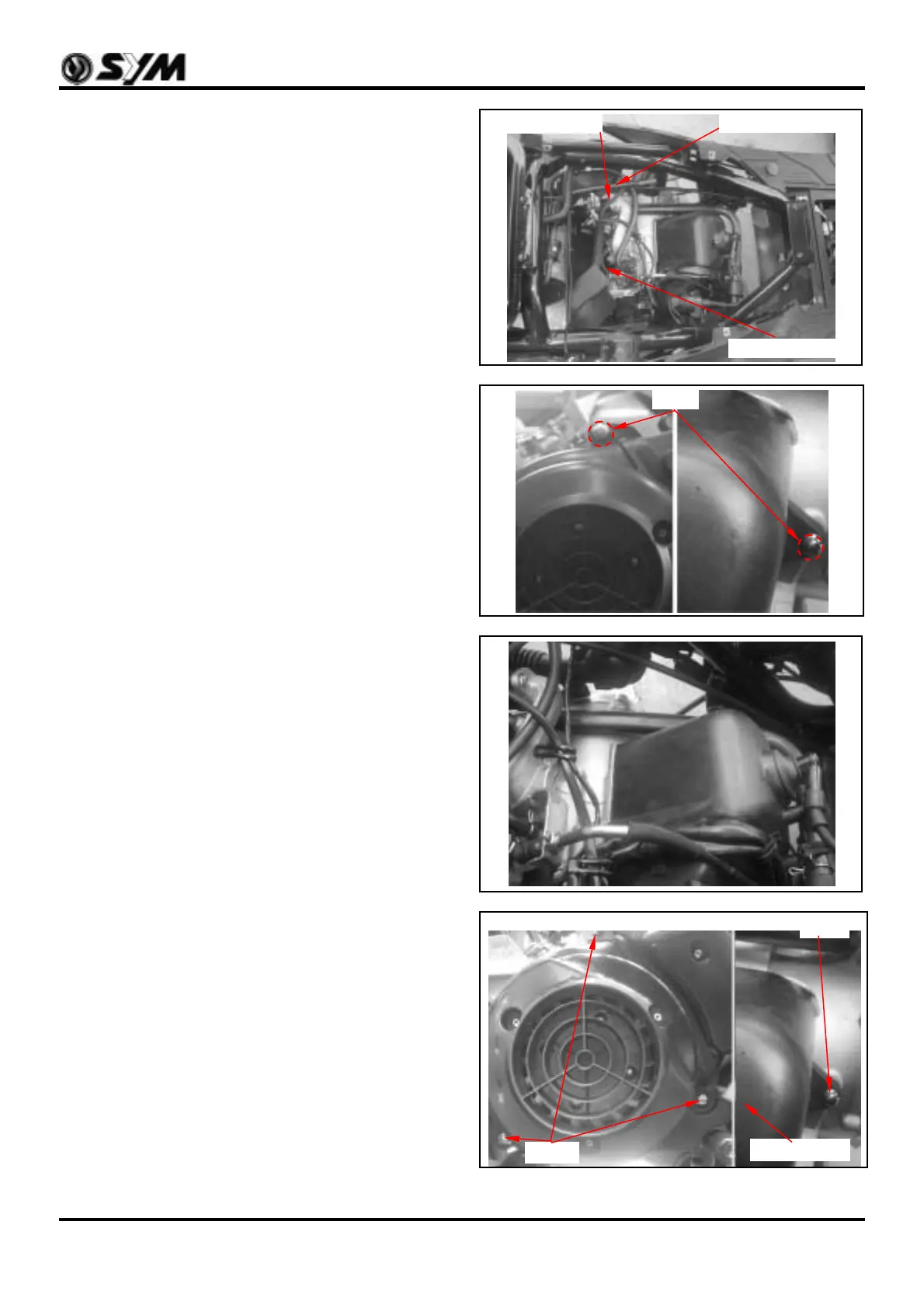

Cylinder Head
Cylinder Head Removal
Removal luggage box, body covers and center
cover.
Remove fuel pump tubes.
Remove spark plug cap.
Remove fuel pump bracket (2 nuts).
Remove vacuum tube and oil pump control cable
from engine shield.
Remove fan cover (3 bolts).
Remove engine shield mounting bolt (1 bolt).
3 bolts
Engine shield
1 bolt
2 nuts
Vacuum tube
Fuel output tube
Fuel inlet tube
To Next Page
