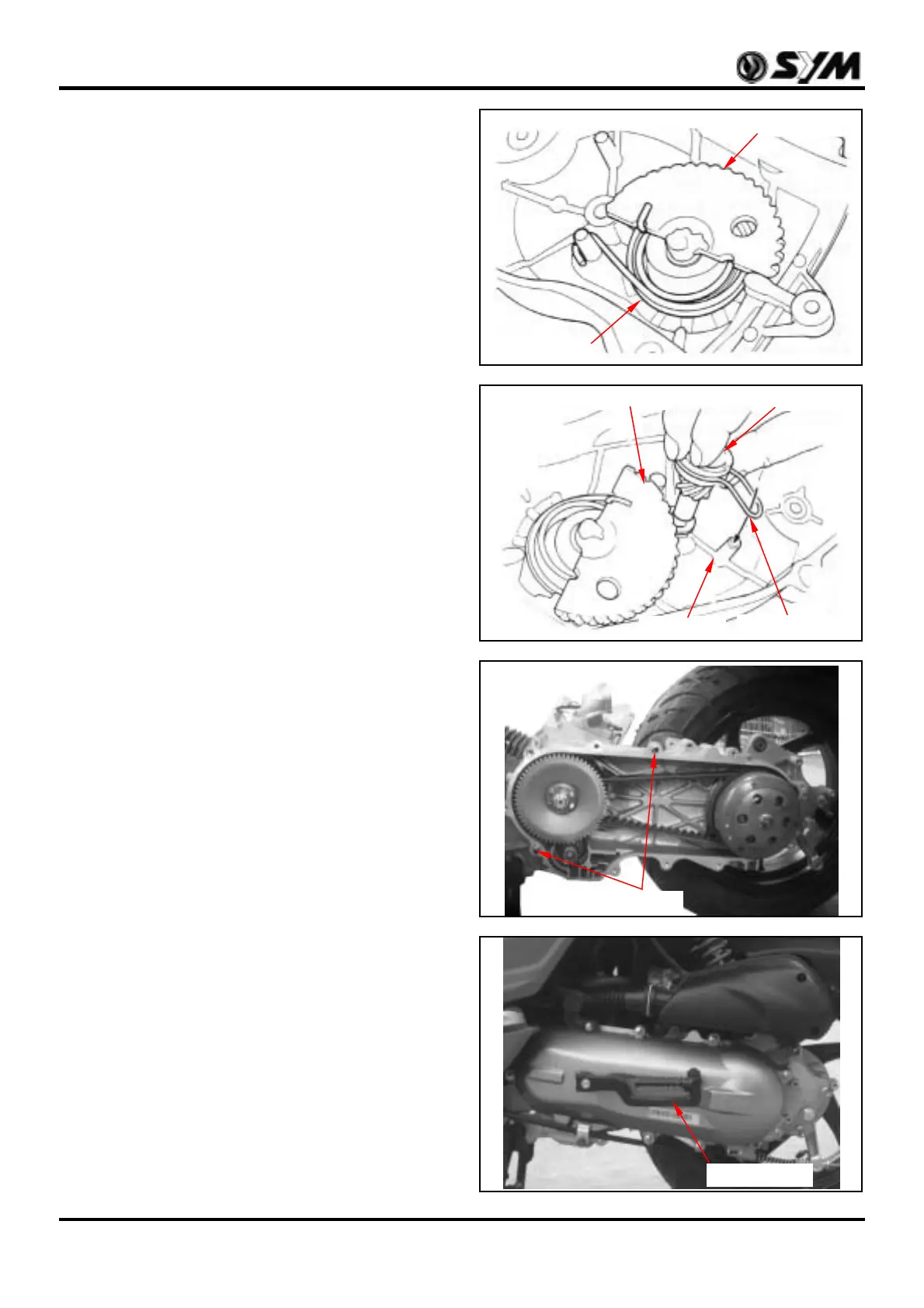

8. "V" Type Belt Drive System/Kick-Starter
8-4
Reassembly of Kick Starter
Install bush, return spring and starter spindle as
diagram shown.
Install thrust washer and snap clip onto starter
spindle.
Install kick-starter lever temporary.
Slightly rotate the lever and then align driven gear
with width-tooth on the starter spindle.
Install the friction spring of drive gear onto convex
part of the cover.
Installation of the Left Crankcase
Cover
Install the dowel pin and gasket.
Install the left crankcase cover.
Install kick-start arm.
Kick starter spindle
Convex part
Friction spring
Width-tooth
Return spring
Driven gear
Dowel pin
kick-start arm
