6. Cylinder Head/Cylinder/Piston
6-7

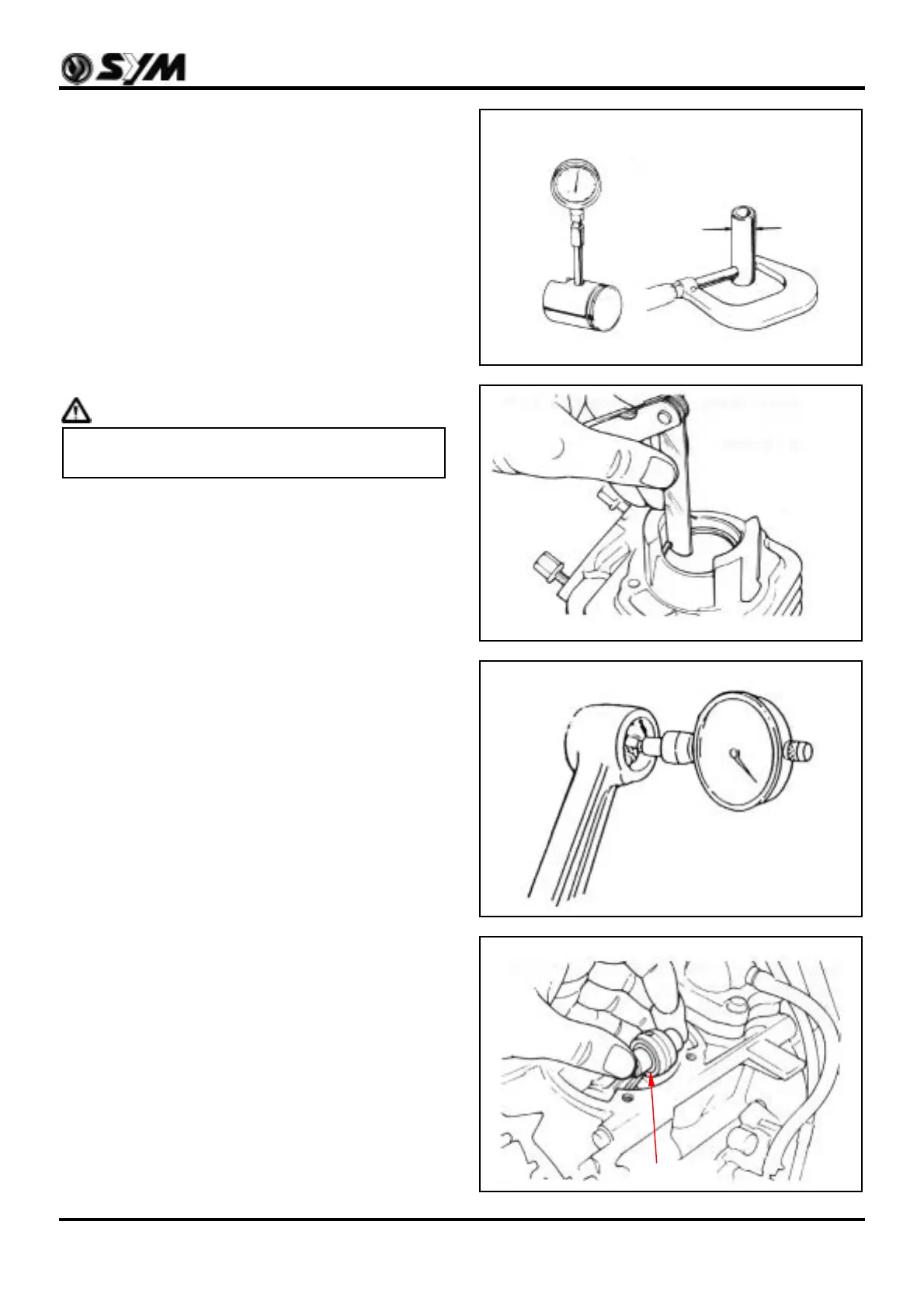

Measure the piston pinhole ID of piston.
Measure the OD of piston pin.
Piston Ring Inspection
Measure the end gap of each piston ring.
Caution
With the piston, push each piston ring into
cylinder correctly.
Connecting Rod Inspection
Measure the ID of connecting rod small end.
Install bearing and piston pin onto connecting rod
small end, and then check its clearance.
The ID of piston pinhole
The OD of piston pin
Clearance
