12. Brake System
12-9

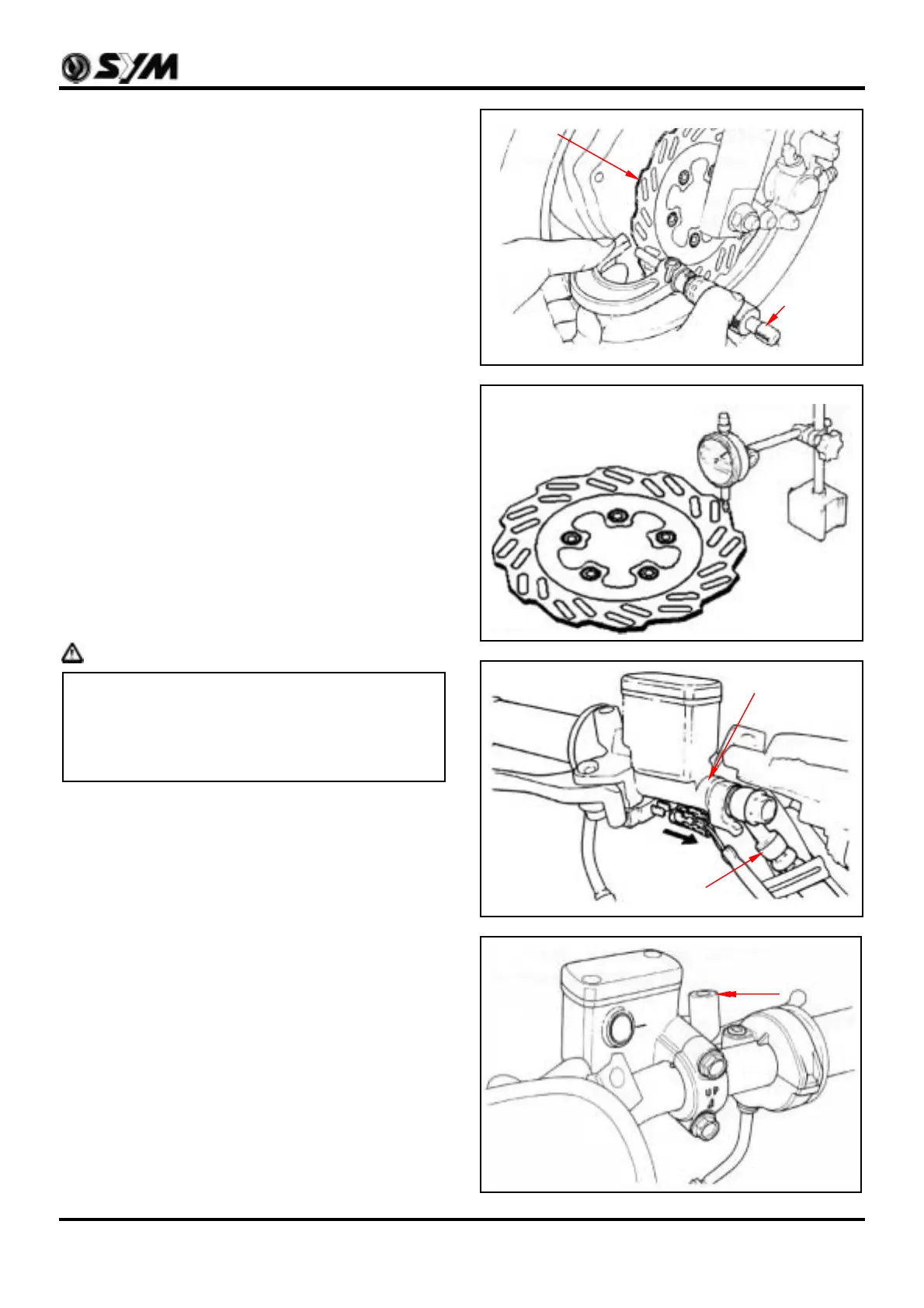

Brake Disc
Inspection
Visually check the brake disc for wear or break.
Measure the thickness of the disc at several
places. Replace the disc if it has exceeded the
service limit.
Remove the brake disc from wheel.
Check the disc for deformation and bend.
Allowable limit: 0.30 mm
Disc Brake - Master Cylinder
Master Cylinder Removal
Caution
y Do not let foreign materials enter into the
cylinder.
y The whole set of master cylinder; piston,
spring, diaphragm and cir clip should be
replaced as a set.
Remove the leads of brake light switch.
Drain out the brake fluid.
Remove the brake lever from the brake master
cylinder.
Remove the brake hose.
Remove the master cylinder seat and the master
cylinder.
Brake hose
Master cylinder
M
Brake disc
2 bolts
To Next Page
