SYM 16. ELECTRICAL EQUIPMENT
16-25
MAIN SWITCH/HORN

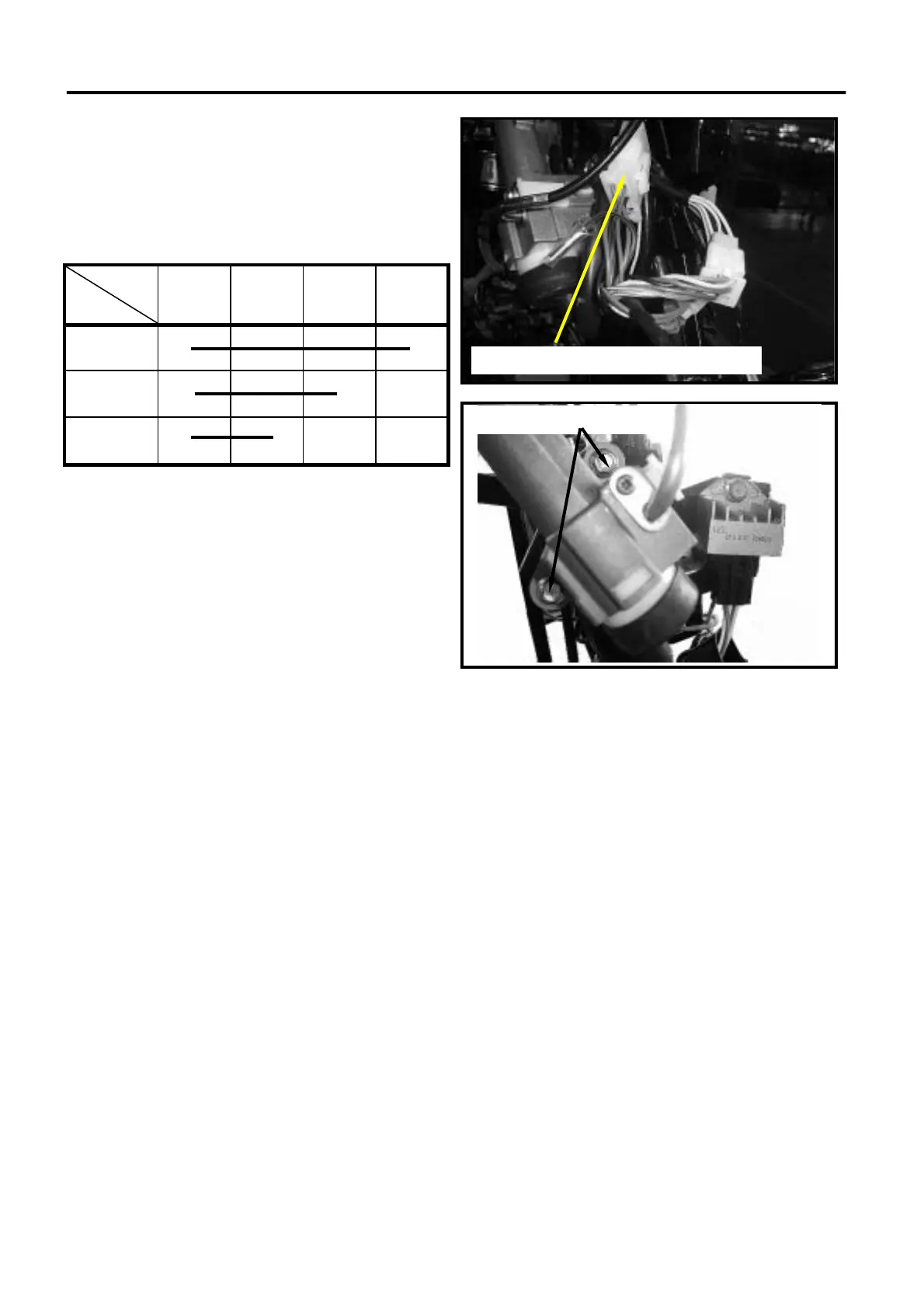

Main Switch
Check
Remove the headlight connector and the front
cover.
Disconnect main switch leads connector.
Check connector terminals for continuity.
color
Location
Black Red
green green
LOCK
●
●
OFF
●
●
ON
● ●
Replacement
Remove the main switch connector and fixing
bolts (bolts x 2)
Remove the main switch.
Install a new main switch and tighten the bolts.
(bolts x2)
main switch connector terminals
main switch bolts x 2
To Next Page
