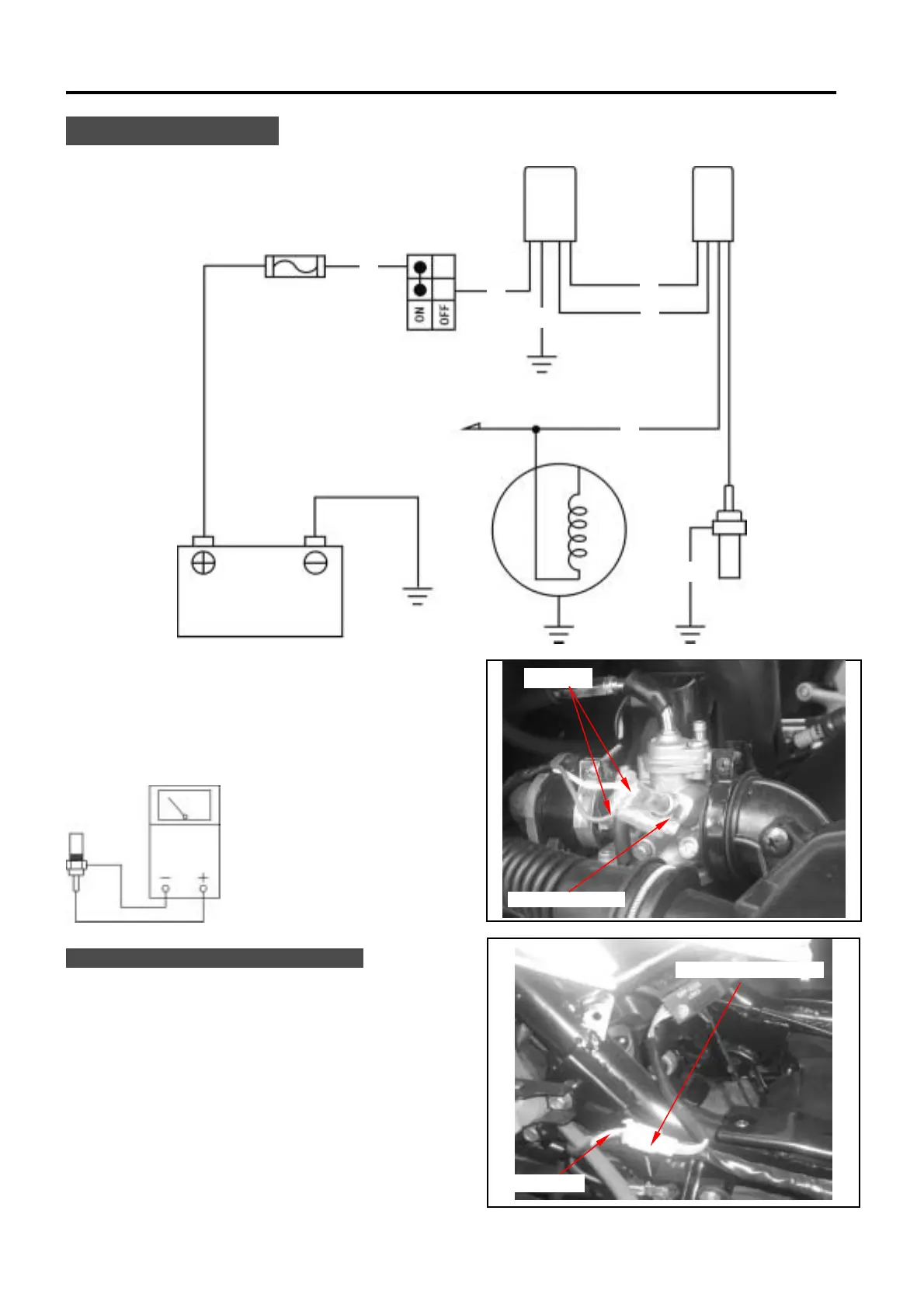

Carburetor Heater
Removal/Installation
Remove luggage box, rear carrier and body cover.
Remove carburetor heater wire pins.
Remove carburetor heater.
Inspection
Carburetor heater resistance : 7±10%Ω
Remove power filter coupler and thermo switch
coupler, and then remove power filter and thermo
switch.
Main switch
Power filter
Fuse 10A
Battery
Y
AC. Generator
To REG. REC.
G
B
G
B
W/Y
R
Thermo switch
G
Wire pins
Carburetor heater
Thermo switch coupler
Power filter
Carburetor heate
