8. "V" Type Belt Drive System/Kick-Starter
8-8

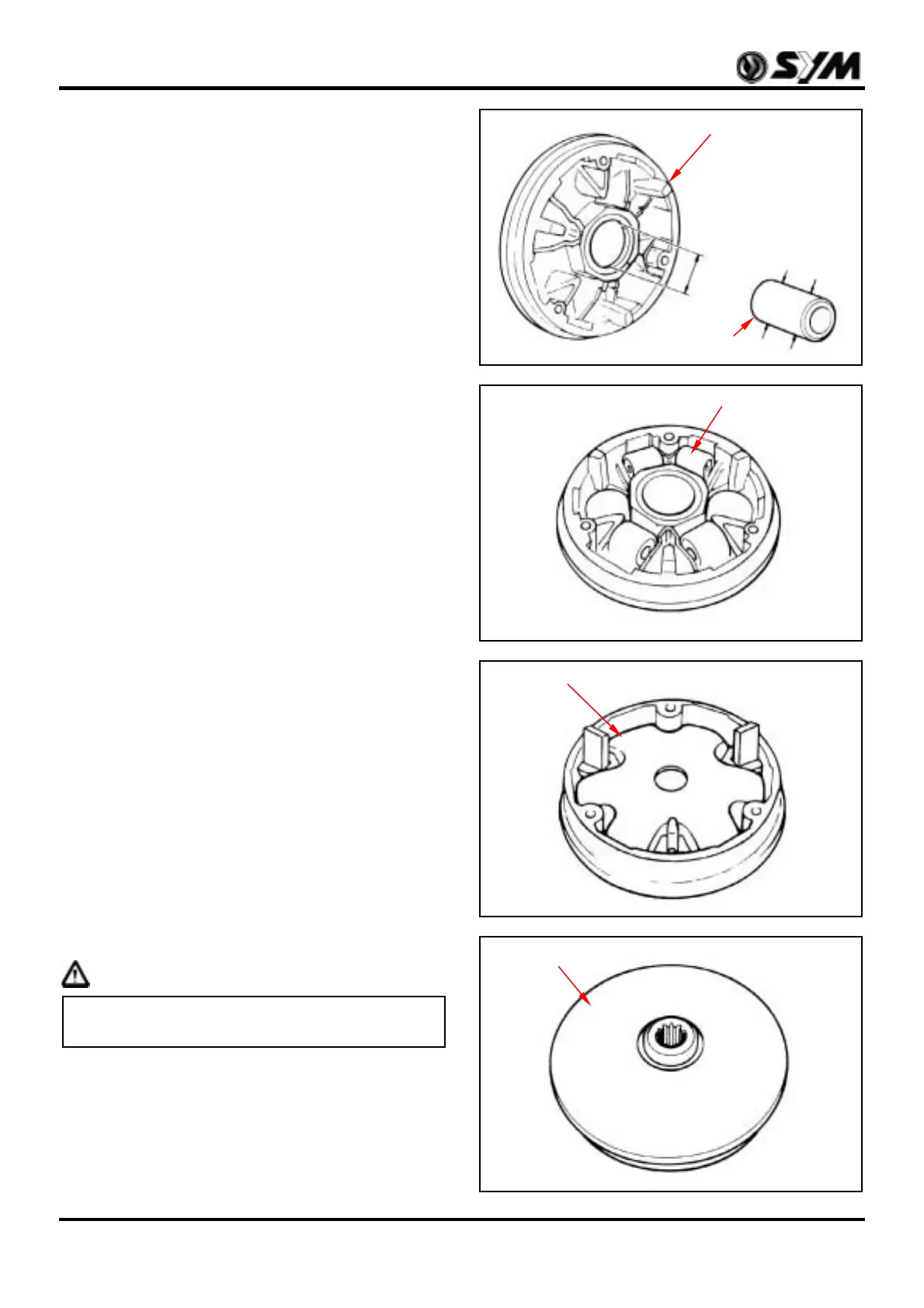

Check if movable drive face boss is worn or
damage and replace it if necessary.
Measure the outer diameter of drive face boss,
and replace it if it exceed service limit.
Measure the inner diameter of drive face, and
replace it if it exceed service limit.
Reassembly / Installation
Install weight rollers.
Install ramp plate.
Apply with some grease to inside of movable drive
face, and install drive face boss.
Caution
y The drive face has to be free of grease.
Clean it with cleaning solvent.
Weight roller
Drive face boss
Ramp plate
Drive face
Movable drive face
