13. Steering / Front Wheel / Front Cushion
13-4

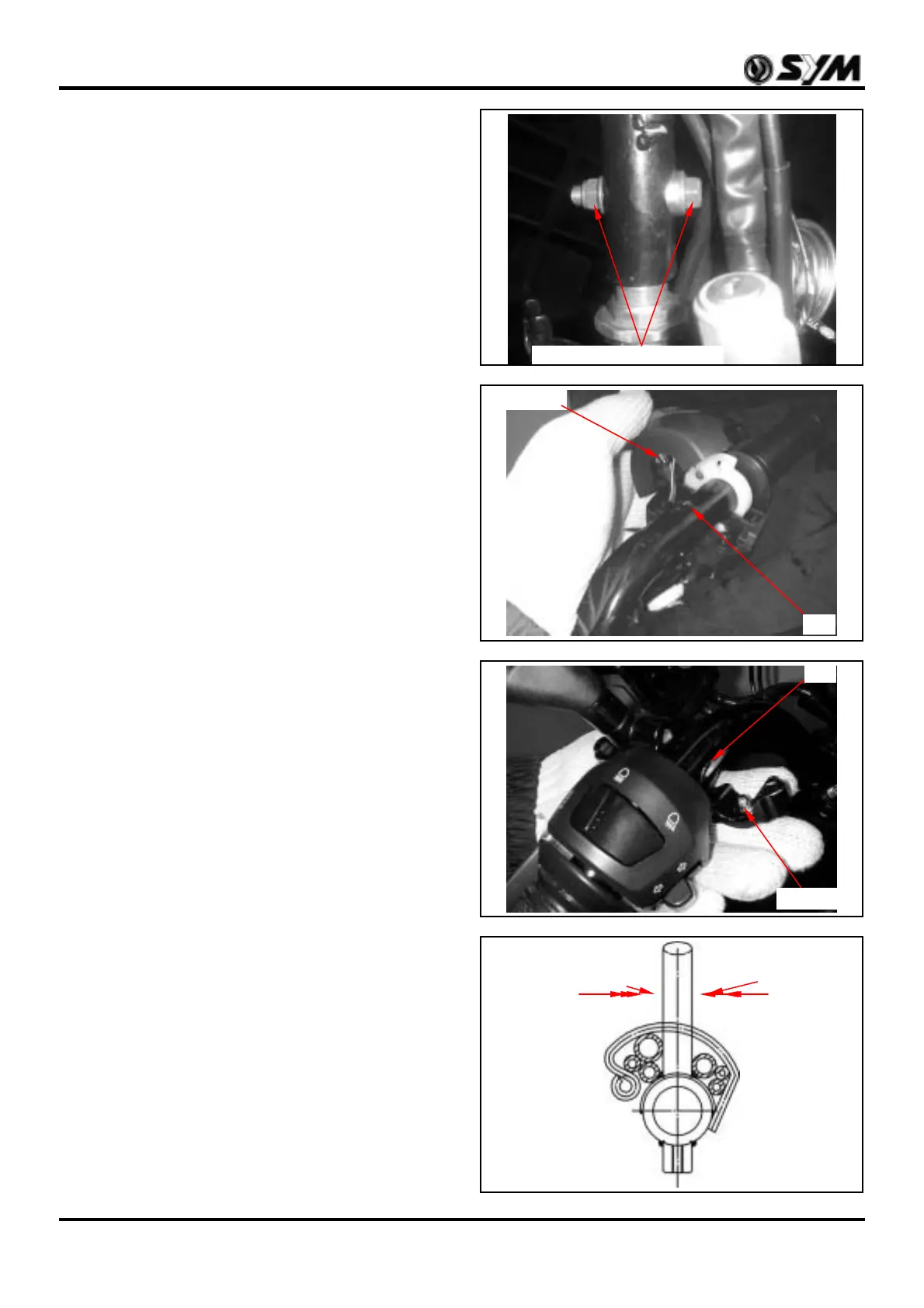

Remove handle mounting bolt and nut, and then
remove the handle.
Installation
Installs handle and align with bolt hole.
Install bolt and nut and then tighten it.
Torque value: 4.0~4.5kgf-m
Apply with grease onto throttle cable and the
sliding surface of handle grip.
Align the lock pin of the right handle switch with
the hole on the handle, and then install the right
handle switch.
Tighten the screws. (2 screws)
Align the lock pin of the left handle switch with the
hole on the handle, and then install the left handle
switch.
Tighten the screws. (2 screws)
Check hoses and cords dispose.
Install all components in reverse order of removal
procedures.
Conduct following adjustment:
y Oil pump control cable.
y Throttle operation.
y Brake lever free play (drum brake).
Handle mounting nut and bolt
Right handle
switch cord
Front brake hose
Hole
Lock pin
Hole
Lock pin
Throttle cable
Meter cord
Left handle
switch cord
Rear brake hose
(Rear brake cable)
Clip
Steering handle pipe
