14. Brake System
14-18

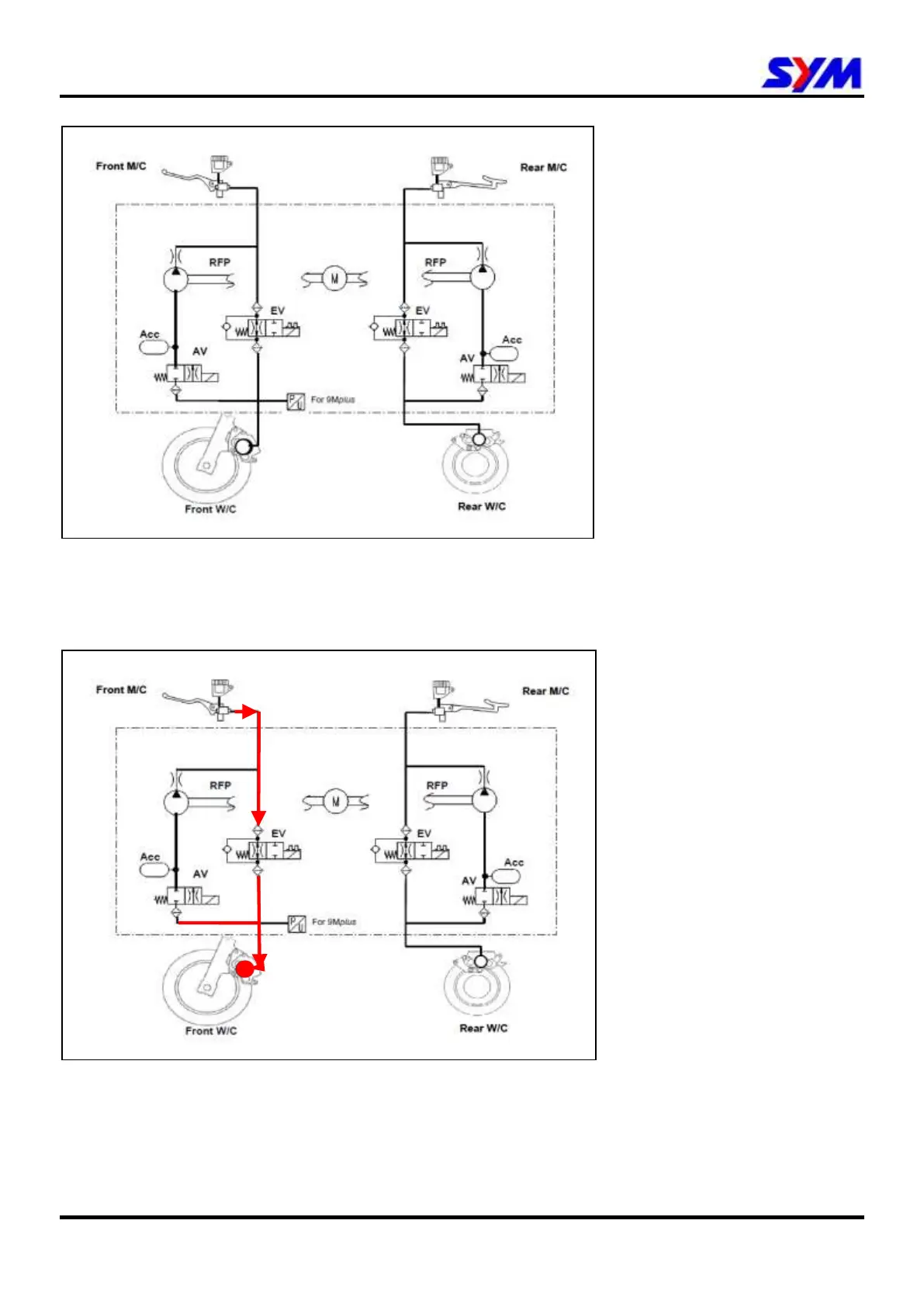

Continuous wheel slip
When the wheel speed sensors detect continuous wheel slip, EV keeps closed and AV is open. Brake
pressure is reduced (pulsing in the brake lever). Brake caliper lowers the pressure and braking force.
Normal brake without wheel slip
When the pressure reduction continues, the wheel speed sensors detect no wheel slip. EV keeps open
and AV is closed. Brake caliper receives pressure from master cylinder and normal brake is applied.
