Sym MAXSYM 400i User Manual

15-7

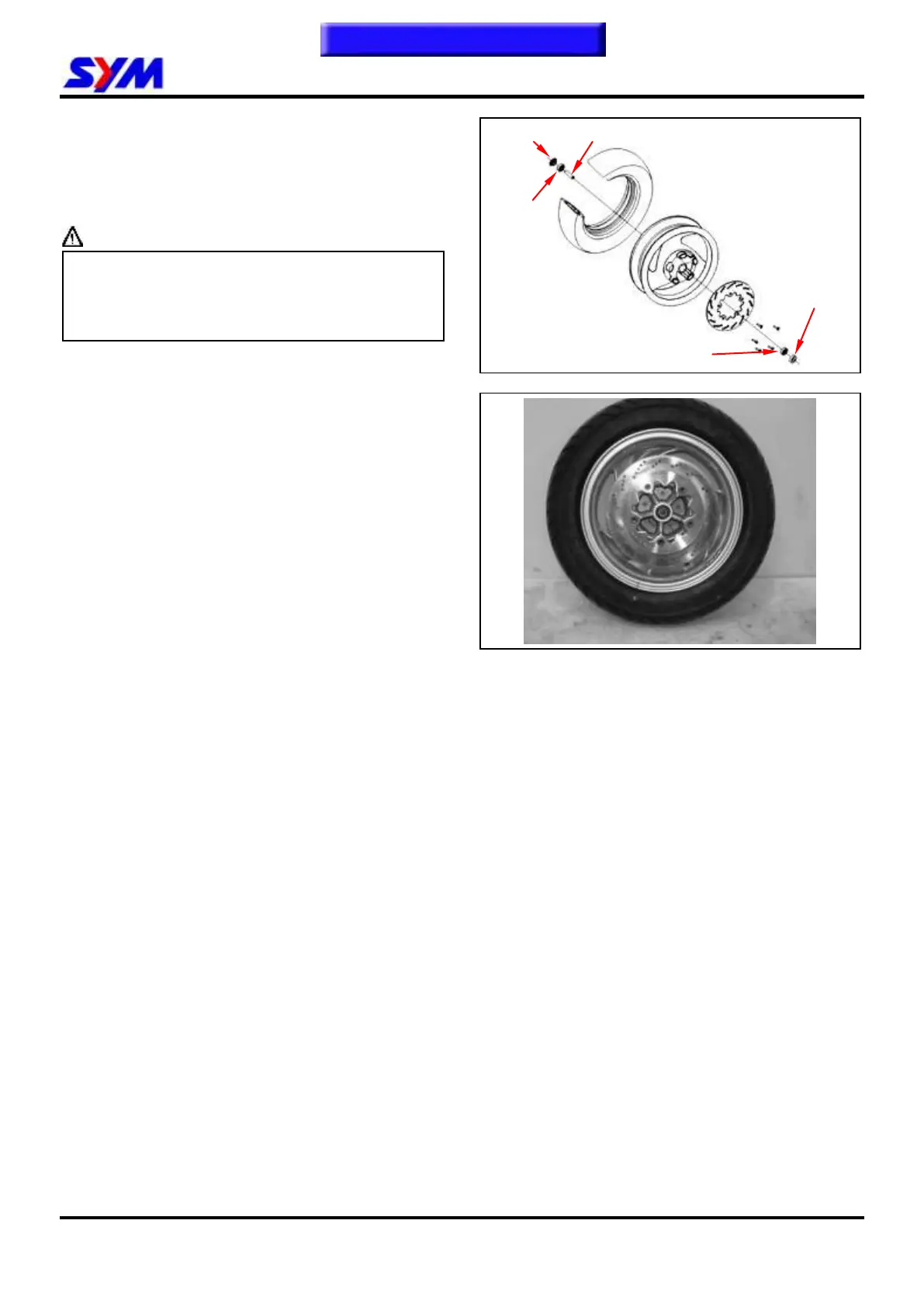

Assembly
Fill out the block of bearing by grease.
Drive the left bearing, dust seal and install the dist
collar.
Install the right side bearing.
Caution
 Carefully install the bearing in correct and
evenly.
 Bearing outer face should be faced up as
bearing installation.
Install the brake disk and then tighten the bolts.
Torque value: 4.0~4.5kgf-m
Dust seal
Dist collar
Bearing
6201U
Bearing 6201U
Dust seal
