Symbol P370 - Cradle Pin-Outs

4-6
P470/370 RF Scanner Product Reference Guide

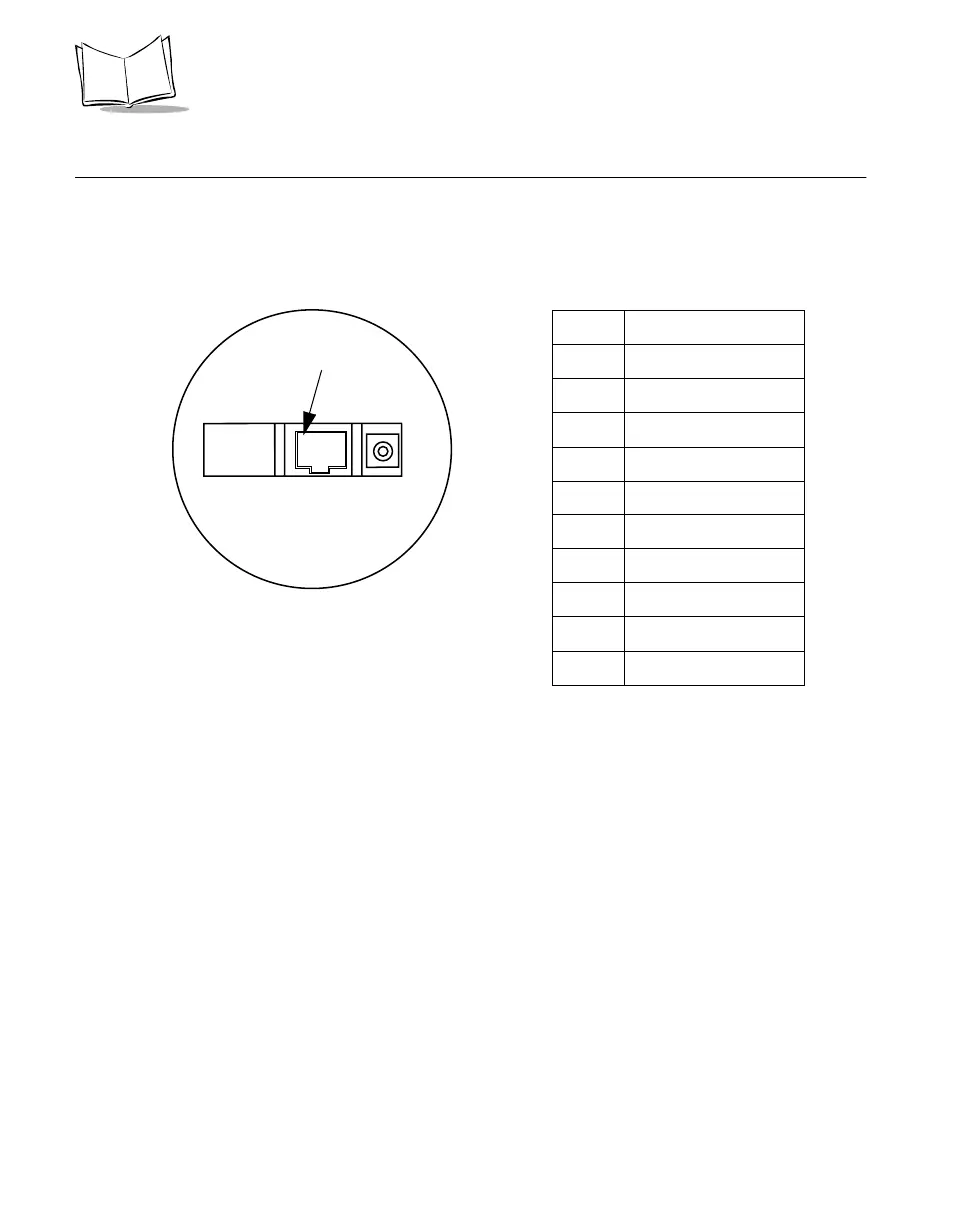

Cradle Pin-outs
The following table shows the pin-outs for COM1 on the cradle.
Table 4-3. Pin-outs
Pin Cradle
1 Reserved
2 VCC (Out)
3 Ground
4 Synapse Data
5 Synapse Clock
6RXD IN
7TXD OUT
8 DTR (Tied HI)
9CTS - IN
10 RTS - OUT
Pin 1
