www.SteamPoweredRadio.Com

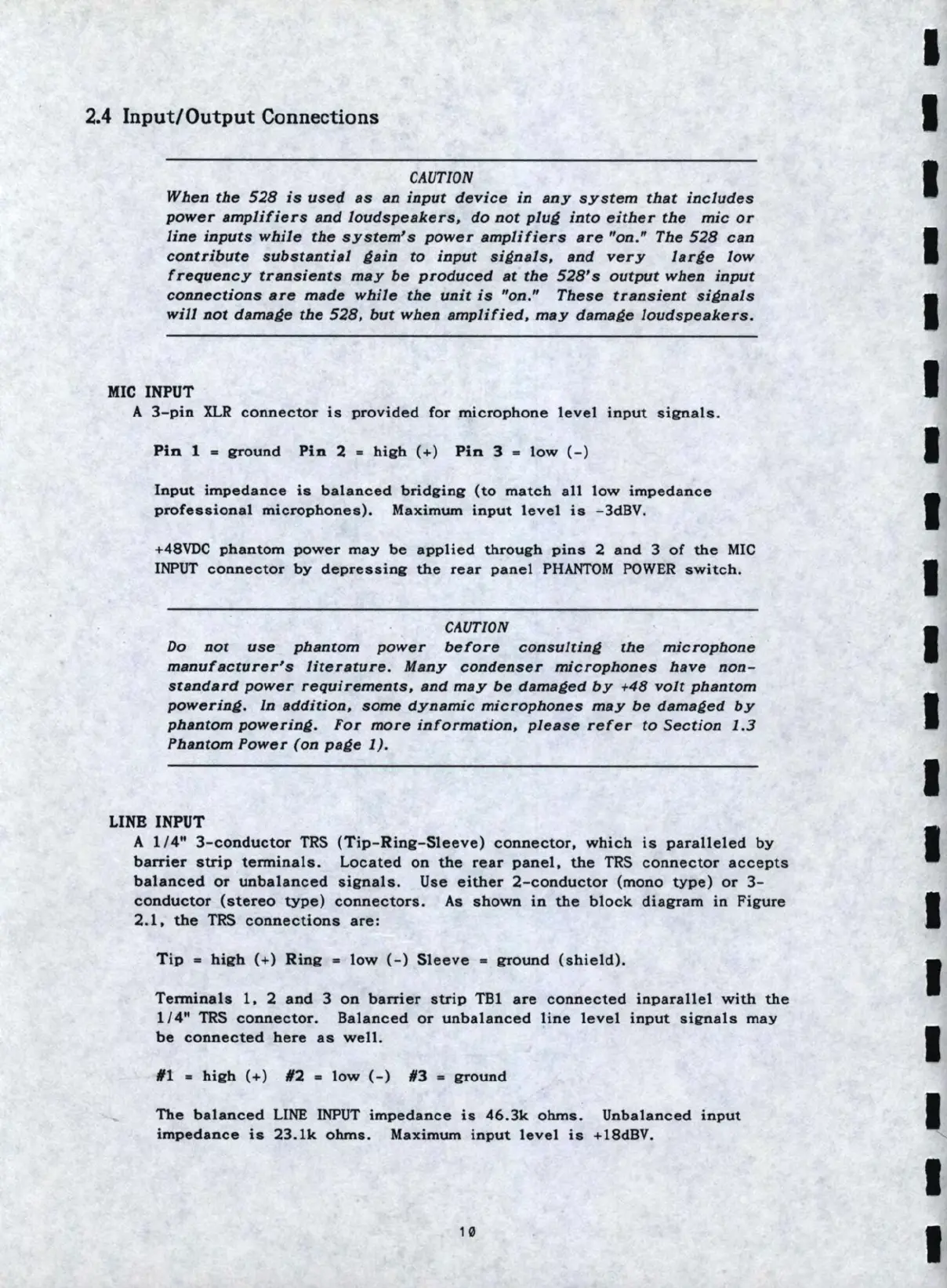

2.4
Input/
O
utput
Connections
CAUTION
When
the
528
is
used
as
an
input
device
in
any
system
that
includes
power
amplifiers
and
loudspeakers,
do
not
pluA
into
either
the
mic
or
line
inputs
while
the
system's
power
amplifiers
are
"on."
The
528
can
contribute
substantial
Aain
to
input
siAnals,
and
very
larAe
low
frequency
transients
may
be
produced
at
the
528
' s
output
when
input
connections
are
made
while
the
unit
is
"on."
These
transient
siAnals
will
not
damaAe
the
528
,
but
when
amplified,
may
damage
loudspeakers.
MIC
INPUT
A 3-
pin
XLR
connector
is
provided
for
microphone
level
input
signals.
Pin
1
ground
Pin
2
high
(+)
Pin
3
low
(-)
Input
impedance
is
balanced
bridging
(to
match
all
low
impedance
professional
microphones).
Maximum
input
level
is
-3dBV.
+48VDC
phantom
power
may
be
applied
through
pins
2
and
3
of
the
MIC
INPUT
connector
by
depressing
the
rear
panel
PHANTOM
POWER
switch.
CAUTION
Do
not
use
phantom
power
before
consultinA
the
microphone
manufacturer's
literature.
Many
condenser
microphones
have
non
-
standard
power
requirements
,
and
may
be
damaAed
by
+48
volt
phantom
powerinA.
In
addition,
some
dynamic
microphones
may
be
damaged
by
phanto
m
powerinA.
For
more
information,
please
refer
to
Section
1.3
Phanto
m
Power
(on
paAe
1).
LINB
INPUT
A 1/
4"
3-conductor
TRS
(Tip-Ring-
S
leeve)
connector,
which
is
paralleled
by
barrie
r
strip
te
rm
inals
.
Located
on
the
rear
panel
,
the
TRS
connector
accepts
balanced
or
unbalanced
signals
.
Use
either
2-conductor
(
mono
type)
or
3-
conductor
(stereo
type)
connectors
. As
shown
in
the
blo
ck
diagram
in
Figure
2.
1,
the
TRS
connections
are
:
Tip
high
(+)
Ring
low
(- )
Sleeve
ground
(shield)
.
Termi
n
als
1,
2
and
3
on
barrier
strip
TBl
are
connected
inparallel
with
the
1/
4"
TRS
connector
.
Balanced
or
unbalanced
line
level
input
signals
may
be
connected
here
as
well.
11
high
(+)
12
low
(-)
113
ground
The
balanced
LINE
INPUT
impedance
is
46.3k
ohms
.
Unbalanced
input
impedance
is
23.lk
ohms
.
Maximum
input
level
is
+18dBV.
10
