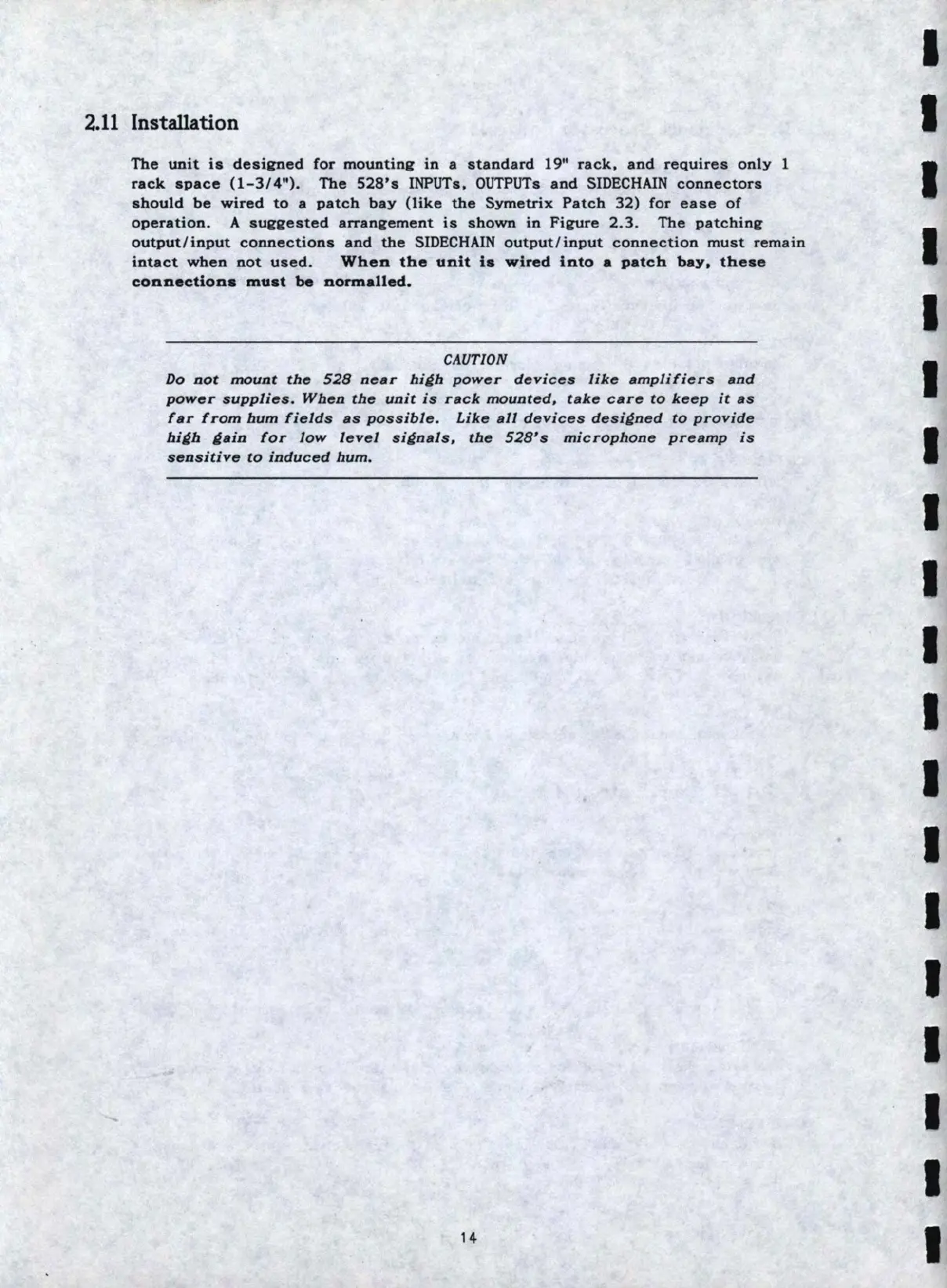

2.11 Installation
The unit is deaisrned for mountit12 in a standard 19" rack , and requires only 1
rack apace (1-3/4"). The 528's lNPUTs, OUTPUTs and SlDECHAIN connectors
should be wired to a patch bay (like the Symetrix Patch 32) for ease of
operation. A su22eated arran2ement is shown in Fi20re 2.3. The patchin2
output / input connections and the SlDECHAIN output / input connection must remain
intact when not used. When the unit i ■ wired into a patch bay, these
connection ■ mu ■ t be normalled.
CAUTION
Do not mount the 528 near hieh power devices like amplifiers and
power supplies. When the unit is rack mounted, take care to keep it as
far from bum fields as possible. Like all devices desiened to provide
bieb eain for low level sienals, the 528's microphone preamp is
sensitive to induced hum.
