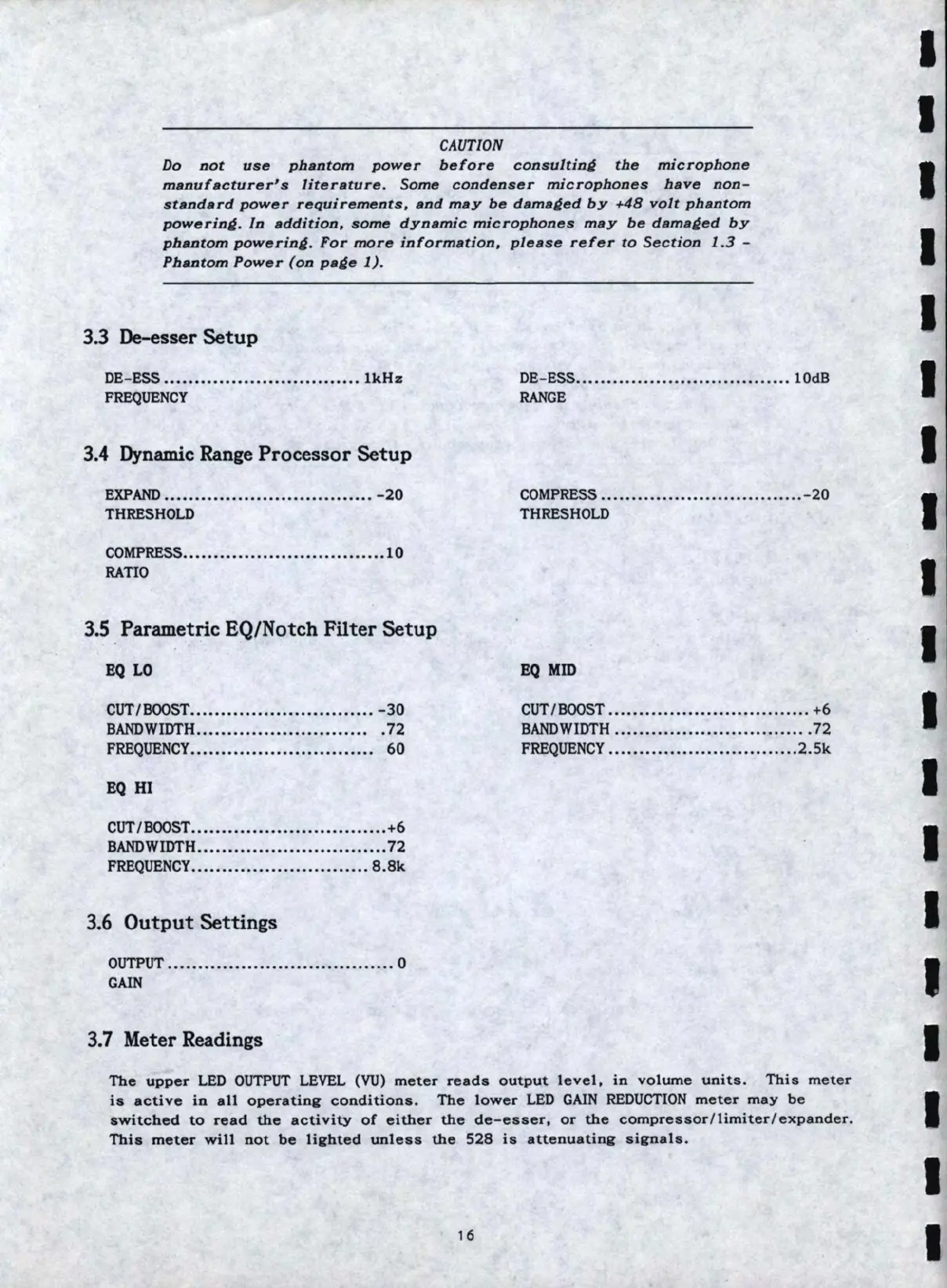

CAUTION
Do not use phantom power before consultinR the microphone
manufacturer's literature. Some condenser microphones have non-
standard power requirements, and may be damaRed by +48 volt phantom
powerinR. la addition, some dynamic microphones may be damaRed by
phantom powerinR. For more information, please refer to Section 1.3 -
Phantom Power (on paRe 1).
3.3 De-esser Setup
DE-ESS .••••••••••••••••.•••••••••••.•• lkHz
FREQUENCY
3.4 Dynamic Range Processor Setup
EXPAND •••••••••••.•••••••.••••••••••••.• -20
THRESHOLD
CO MP RESS .••.••••••••••••••••••.••.••••••• 1 0
RATIO
3.5 Parametric EQ/Notch Filter Setup
EQ LO
CUT/ BOOST .•.••••••••.•.•••••.••.••••.•• -30
BANDWIDTH............................ . 72
FREQUENCY.............................. 60
EQ HI
CUT I BOOST •••••••••••••••••••.•••••••••••• +6
BAND WIDTH •••••••..•••••.•.••.••• ... •• ..• 72
FREQUENCY •••••..••....••....•... . •• ... 8. 8k
3.6 Output Settings
OUTPUT ••• .. .••..•••••..••• .•••.• .. ...•...•. 0
GAIN
3. 7 Meter Readings
DE-ESS .•••••.• •.•...••••••••.••.••. .••••. 1 OdB
RANGE
COMPRESS ••••••••••••••••••••••••••••••••• -20
THRESHOLD
EQ MID
CUT/ BOOST .•.•...•••.•.••••••••••.••.••.•.• +6
BANDWIDTH .•. .. ..... . ..•...•...•.•..•..•. . 72
FREQUENCY .. ... .•.....••...•••••..•..•... 2. Sk
The upper LED OUTPUT LEVEL (VU) meter reads output level, in volume units. This meter
is active in all operatin(l conditions. The lower LED GAIN REDUCTION meter may be
switched to read the activity of either the de-esser, or the compressor/limiter/expander.
This meter will not be lighted unless the 528 is attenuatin(l signals.
1 6
