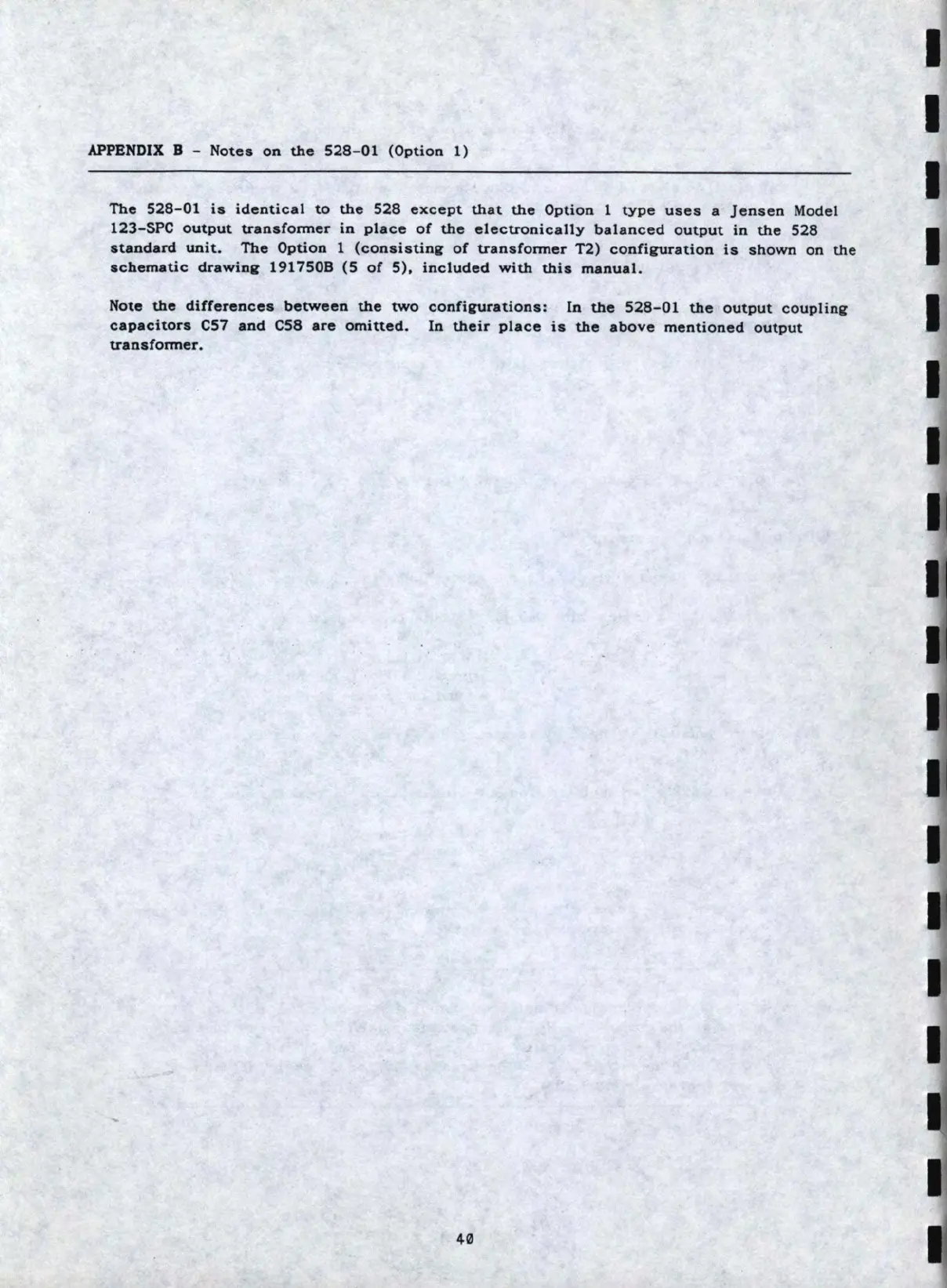

APPENDIX B - Notes on the 528-01 (Option 1)
The 528-01 is identical to the 528 except that the Option 1 type uses a Jensen Model
I
I
I
123-SPC output transformer in place of the electronically balanced output in the 528 I
standard unit. The Option 1 (consistin1r of transformer T2) confill'1Jl"ation is shown on the
schematic drawin1r 1917508 (5 of 5) , included with this manual.
Note the differences between the two confi1rUrations: In the 528-01 the output couplin&r I
capacitors C57 and C58 are omitted . In their place is the above mentioned output
transformer .
40
