Symmons Unity S-6600 - Parts Breakdown and Tools; Replacement Parts Identification; Tools Required for Installation

3
*Note: Append -STN to part number for Satin Nickel
nish.
Replacement Parts
Item Description Part Number
A Showerhead 4-141*
B
C
Shower Arm &
Flange
300S*
D
I
Handle
Assembly
RTS-064*
E Dome Cover T-19*
F
G
H
Shower
Escutcheon Kit
S-6600TS-ESC*
(S-6602, S-6600TS)
S-6600-ESC*
(S-6601, S-6600)
J
Diverter/Volume
Control Handle
RTS-066*
K Tub Spout 060*

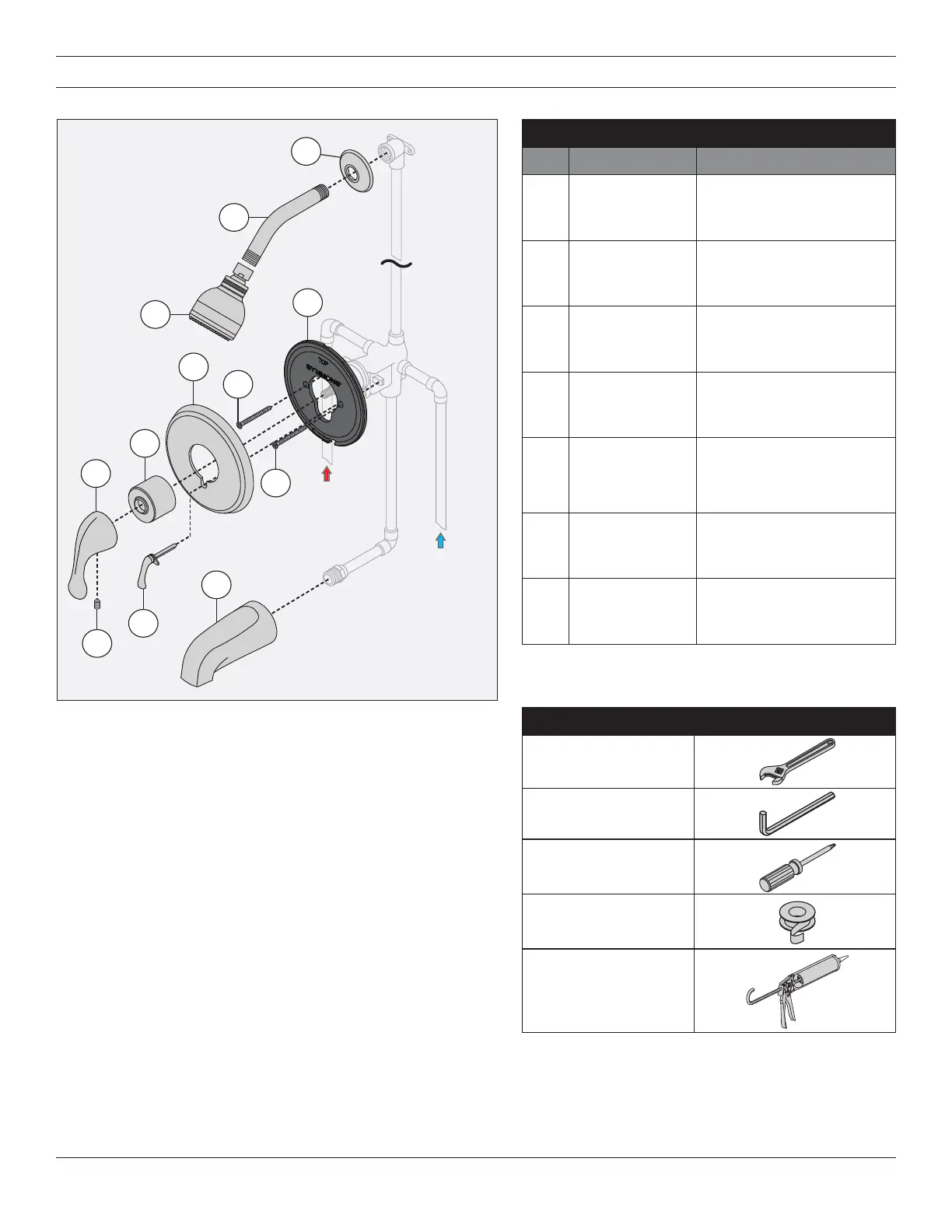

Parts Breakdown
A
HOT
Water Supply
COLD
Water Supply
B
C
D
E
J
K
I
G
G
F
H
Notes:
1) Apply a bead of silicone around the perimeter of all shower
trim installed ush to the nished wall. Leave opening on
bottom of escutcheon for weep hole.
2) Apply plumber tape to all threaded connections.
3) Escutcheon artwork is dependent on handle style.
Tools Required
Adjustable wrench
Allen wrench (1/8”)
Phillips head
screwdriver
Plumber tape
Silicone
