SYNRAD OEM v40 Operator’s Manual Version 4
User I/O connections
Figure below illustrates the output circuit’s equivalent internal schematic and the following table pro-
vides Firestar v40 output circuit specications.

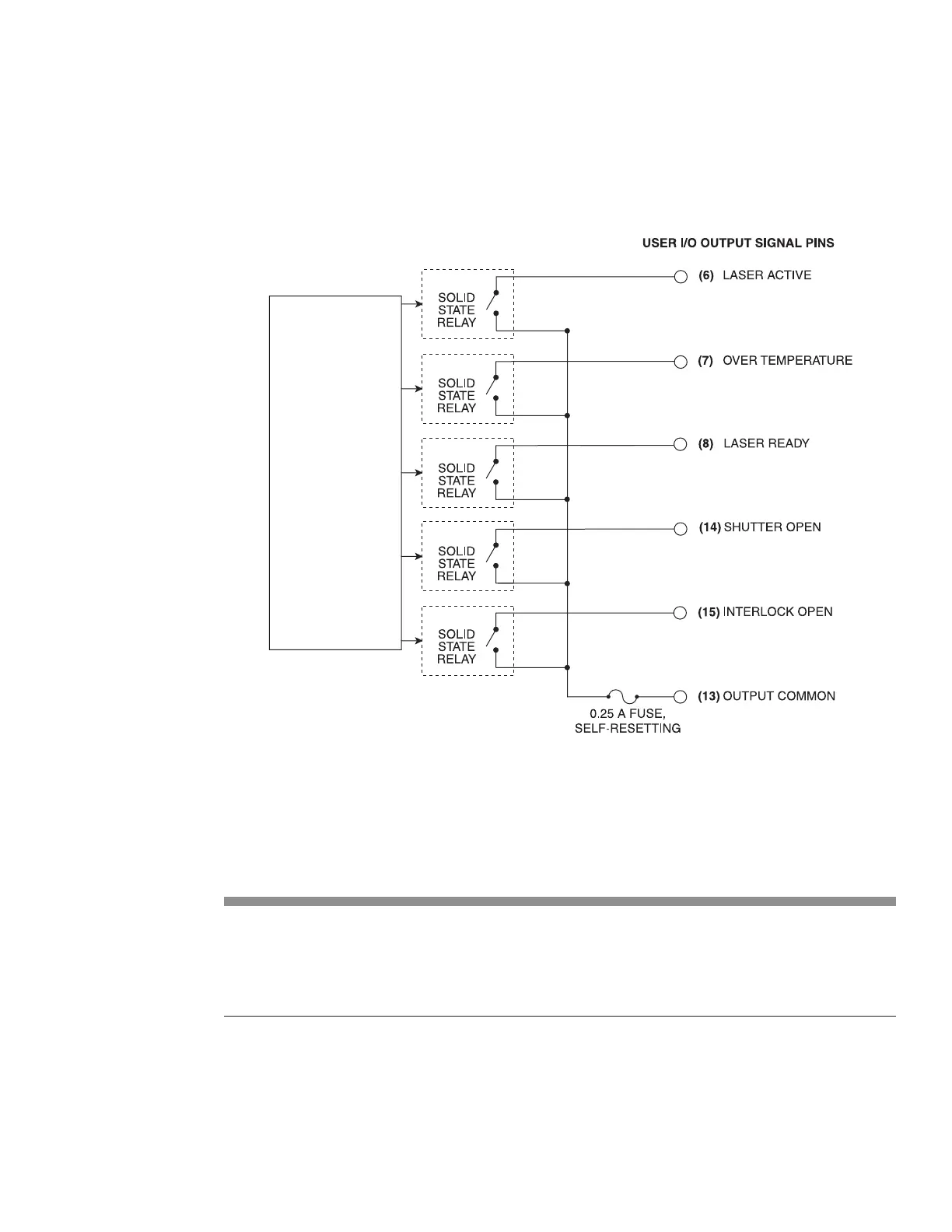

Figure 4-9 Output equivalent schematic
Table 4-5 Output circuit specications
Output Device Specications
Bi-directional CMOS 20 Ohms Rdson
10 MOhms O
Voltage ±24 VDC, max.
Current 50 mA, max.
FIRESTAR v40
OUTPUT CIRCUITRY
