3 p250 Laser Quick Start Guide Version 3.1
p250 Quick Start Guide
250
When mounting the laser to a baseplate, use only one metric or SAE fastener per mounting tab on the base-
plate. Do not use any type of jackscrew arrangement as this will twist the baseplate and may distort the tube.
SYNRAD does not recommend mounting lasers in a vertical, (head and/or tail down)
position. Please contact the factory for limitations as a vertical orientation increases the
risk of damage to the lasers optics. Consult the factory for further mounting angle guid-
ance outside >75% from the horizontal.
Readying your Laser for use:
SYNRAD recommends performing the initial startup procedure located at the end of this guide at initial op-
eration for new lasers and/or after relocation of your laser.
Caution
Possible
Equipment
Damage
Mounting:
3. Choose your mounting type & refer to the Outline and Mounting drawings online.
a. Mounting from above (with mounting feet)- See the following gure, O&M drawings, torque,
thread engagement, and washer data below.
b. Mounting from below- Assemble three spherical washer sets as shown in Detail B in the O&M
drawing.
4. You will need to mount your laser to a mounting surface with three (3) M8 x 1.25 (Metric) or 5/16-18
mm (English) fasteners. Drill and tap three corresponding holes in the mounting surface. See
the gure below, Evenly tighten all three fasteners. Maximum torque 12 Nm (106 in-lb). Minimum
thread engagement should be 16 mm or 0.625 in. *Recommend using low-outgassing thread lock
Caution
Possible
Equipment
Damage
The spherical cup and washer sets are positioned between the laser’s mounting brackets
and the mounting surface to eliminate any possible distortion caused by variations in the
atness of the surface.
Variances in mounting surface will lead to tube distortion resulting in laser damage!
INVISIBLE LASER RADI ATIO N
AVOID EYE OR SKIN EXPOSURE TO
DIRECT OR SC ATTERED RADI ATION
CLASS 4 LASER PRODUCT
EN-60825-1, 2007
xxxx WATTS MA X
10200-10800 NANOMETERS

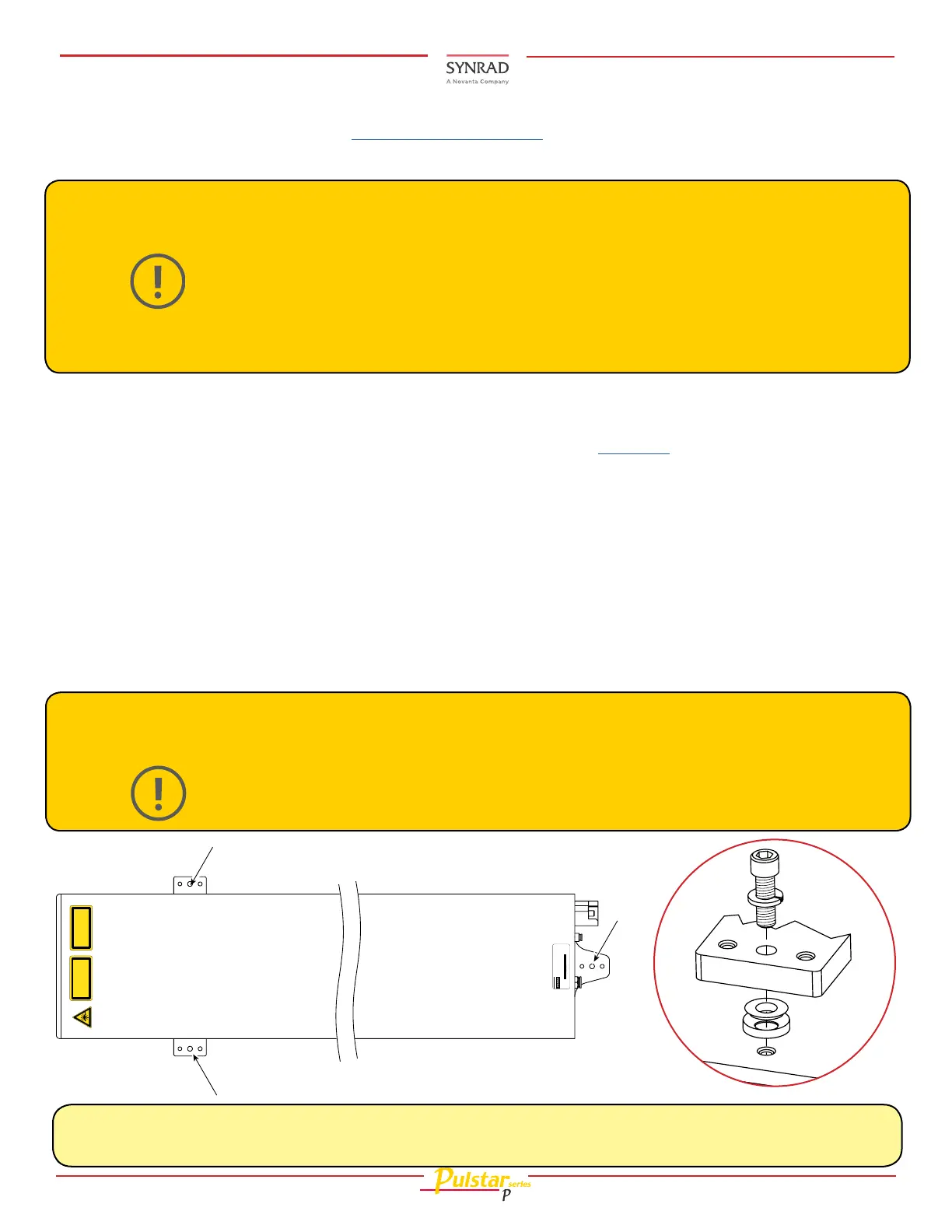

p250 Top View
A
A
A
MODEL #: PSP250SB SERIAL #: P250136130001 TESTED AT
48 Volts MFG May 16, 2013
This laser component does not comply with standards for complete
laser products as specified by 21 CFR 1040.10 or IEC 60825-1.
SYNRAD, Inc. 4600 Campus Place, Mukilteo WA 98275 425.349.3500
Note: Use metric or SAE fasteners with the laser’s mounting bracket/spherical washer set into a threaded
mounting surface.
