5. When mounting the p250, you can choose to fasten from below, into the mounting surface, into the
laser’s mounting brackets. See the gure below.

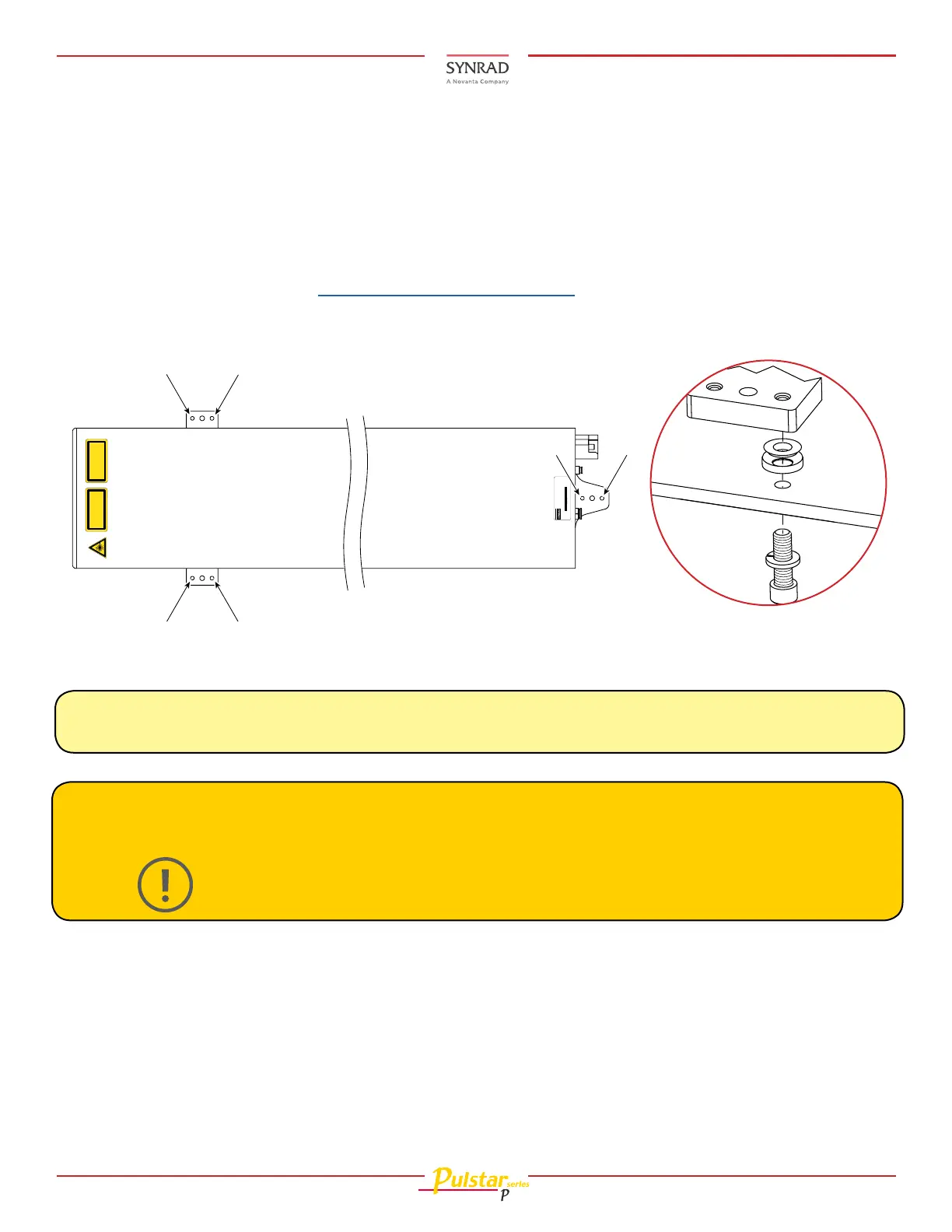

Assemble three spherical washer sets as shown in Detail in the following drawing. These hole locations
should correspond to the threaded holes labeled “M”, for metric, or “S”, for standard. Insert the appropriate
fasteners through the mounting surface and spherical washers into the threaded holes in the mounting
brackets. Evenly tighten all three fasteners.
Once mounting is complete, click here to go to the cooling section.
When mounting the Pulstar laser, use only one metric or SAE fastener per mounting tab
on the baseplate. Do not use any type of jackscrew arrangement as this will twist the
baseplate and may distort the tube. Refer to the mounting drawings in the Technical
Reference chapter in the Pulstar p250 Operation Manual.
INVISIBLE LASER RADI AT IO N
AVOID EYE OR SKIN EXPOSURE TO
DIRECT OR SC ATTERED RADI ATION
CLASS 4 LASER PRODUCT
EN-60825-1, 2007
xxxx WATTS MA X
10200-10800 NANOMETERS
p250 Top View
M
M
MODEL #: PSP250SB
SERIAL #: P250136130001
TESTED AT
48 Volts MFG May 16, 2013
This laser component does not comply with standards for complete
laser products as specified by 21 CFR 1040.10 or IEC 60825-1.
SYNRAD, Inc. 4600 Campus Place, Mukilteo WA 98275 425.349.3500
S
S
Caution
Possible
Equipment
Damage
Note: Use metric or SAE fasteners with the laser’s mounting bracket/spherical washer set into a threaded
mounting surface.
