3060386 | Geniox Air Handling Unit - User Manual
F.1 Air handling unit in operation
The pressure difference between interior and exterior of the unit must not exceed 8 in w.g..
Before start-up of the unit, all ducts and protective devices must be mounted to prevent any access to rotating fan impellers. All
inspection doors must be closed and locked when the unit is in operation.
Donotusetheunitwithoutlters.
G Instructions for unloading on the site as well as installation and connection
G.1 Unloading on the site
The air handling unit – AHU - is delivered as one section or in several sections, which are to be assembled on site. The AHU is delivered
on transport pallets, legs or on a base frame. Loading and unloading as well as transport on the site is possible by fork-lift truck or by
crane using suitable lifting straps.

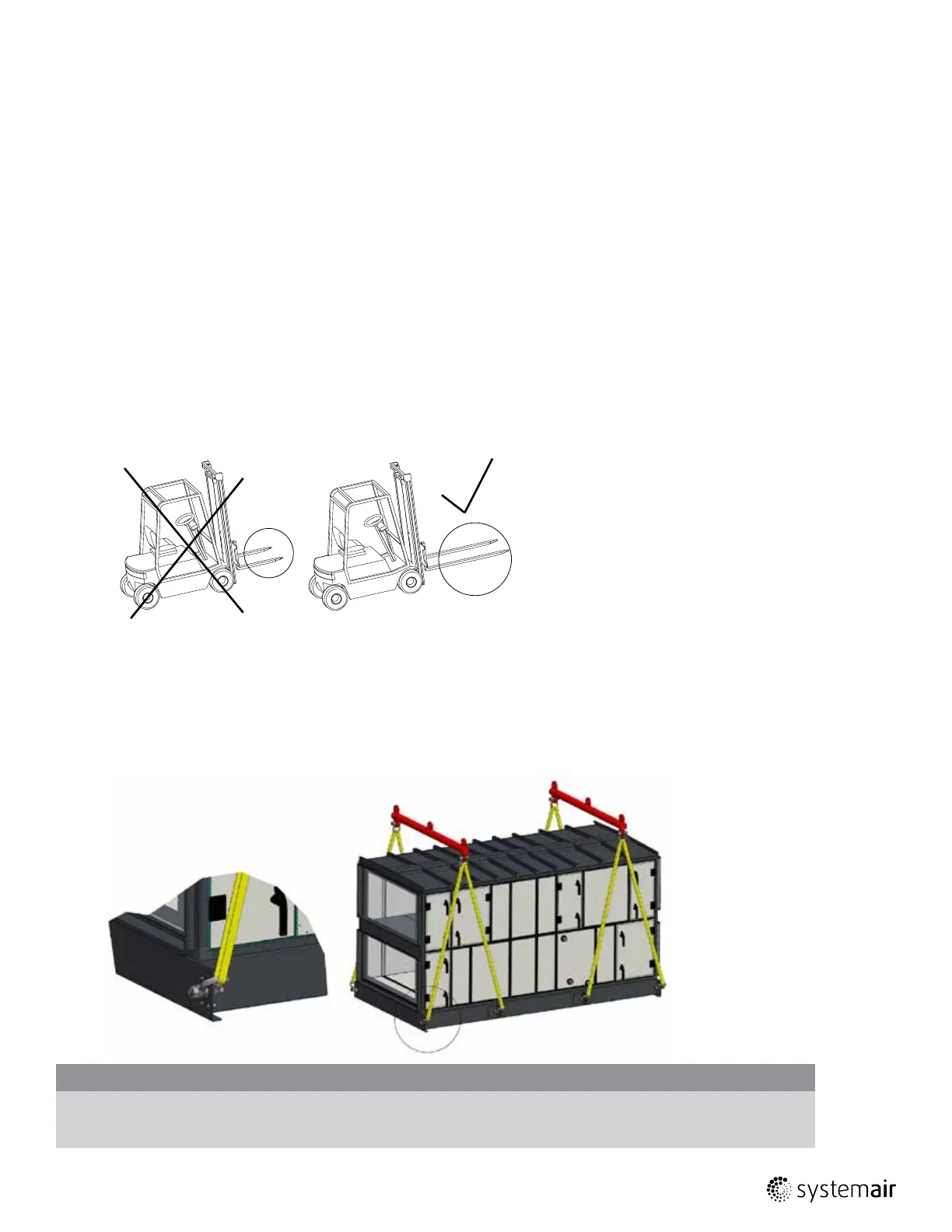

G.1.1 Unloading by fork-lift truck
TheforksofthetruckmustbesufcientlylongtoavoidanydamagetotheAHUunderside.
G.1.2 Lifting a unit with straps
Useanappropriateliftingbeamwithasufcientspantoavoidthatthestrapstouchanddamagethedripnoseprolesandtheinspec-
tion side with handles, pipes and accessories – for example manometers, cabinets, tabs for measuring the pressure.
G.1.3 Lifting a unit with preinstalled brackets on the base frame for lifting.
Instruction for unloading on the site as well as installation and connection | 11
Important
It is recommended that while lifting the Geniox unit (whether provided in sections or a single piece) ,all lifting points
be used to prevent uneven weight distribution. Not doing so could result in undue stress being placed on the unit base
frame.OfoadingandsafelyriggingtheunitisthesoleresponsibilityoftheclientandnotofthefactoryorSystemair.
