Section 1 • System Overview
9) Zone splitters enable zones to be divided into
two areas.
10)Four infra-red 'window emitters' can be
plugged directly into dedicated mini jack
sockets.
11)Components featuring an RC-5 bus can be
plugged directly into a dedicated RC-5 output.
12)The TX configuration terminal allows multiple
controllers to be linked together, and still use
just one set of IR emitters.
6) All zones can be put into standby from
any zone on any controller in multiple
controller installations.
7) A built-in Paging input allows zones to
receive PA announcements or to Mute
when the doorbell rings!
8) The system incorporates a near universal
infra-red link which remains active even
when a zone is in standby. Simply point
any remote at a DMS module to relay the
command back to the source
components.

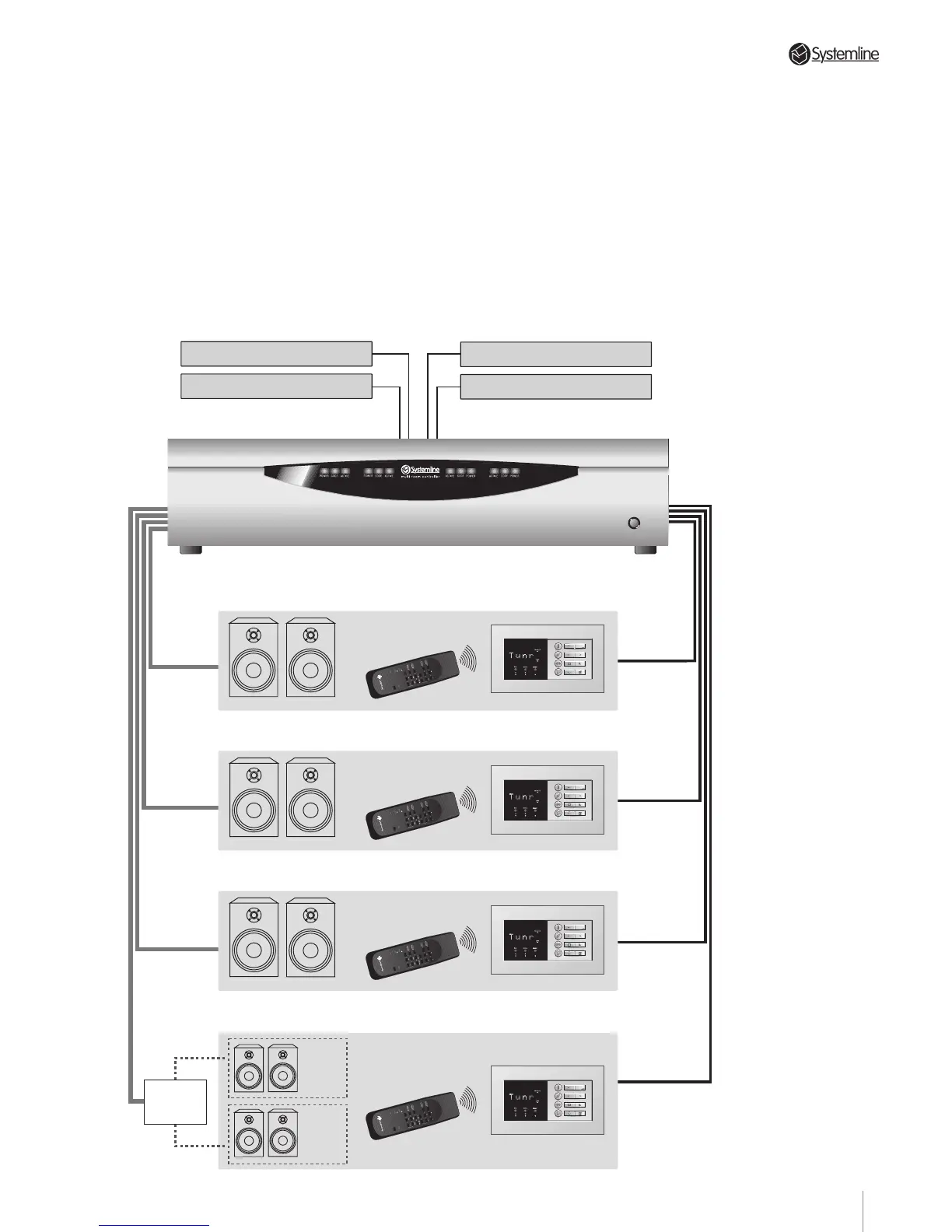

Living Room
Family Room
Kitchen
Bedroom
Area
1
Area
2
AB CD
TUNER
CD
FAV STN PRESETS
STOP SKIP
RANDOM DISC
TAPE/SAT STOP
VIDEO/LD
STOP
PAUSE CHNL
X
VOL
VOL
MUTE
STBY
TUNER
CD
FAV STN PRESETS
STOP SKIP
RANDOM DISC
TAPE/SAT STOP
VIDEO/LD
STOP
PAUSE CHNL
X
VOL
VOL
MUTE
STBY
TUNER
CD
FAV STN PRESETS
STOP SKIP
RANDOM DISC
TAPE/SAT STOP
VIDEO/LD
STOP
PAUSE CHNL
X
VOL
VOL
MUTE
STBY
TUNER
CD
FAV STN PRESETS
STOP SKIP
RANDOM DISC
TAPE/SAT STOP
VIDEO/LD
STOP
PAUSE CHNL
X
VOL
VOL
MUTE
STBY
ZONE
SPLITTER
D.V.D./L.D./V.C.R./C.D.2/Tuner 2
Compact Disc Player
AM/FM Tuner
Tape Deck/Satellite/Cable
2
