Systemline S4.3 - Component Description; 2.1 S4.3 Controller

PAGE

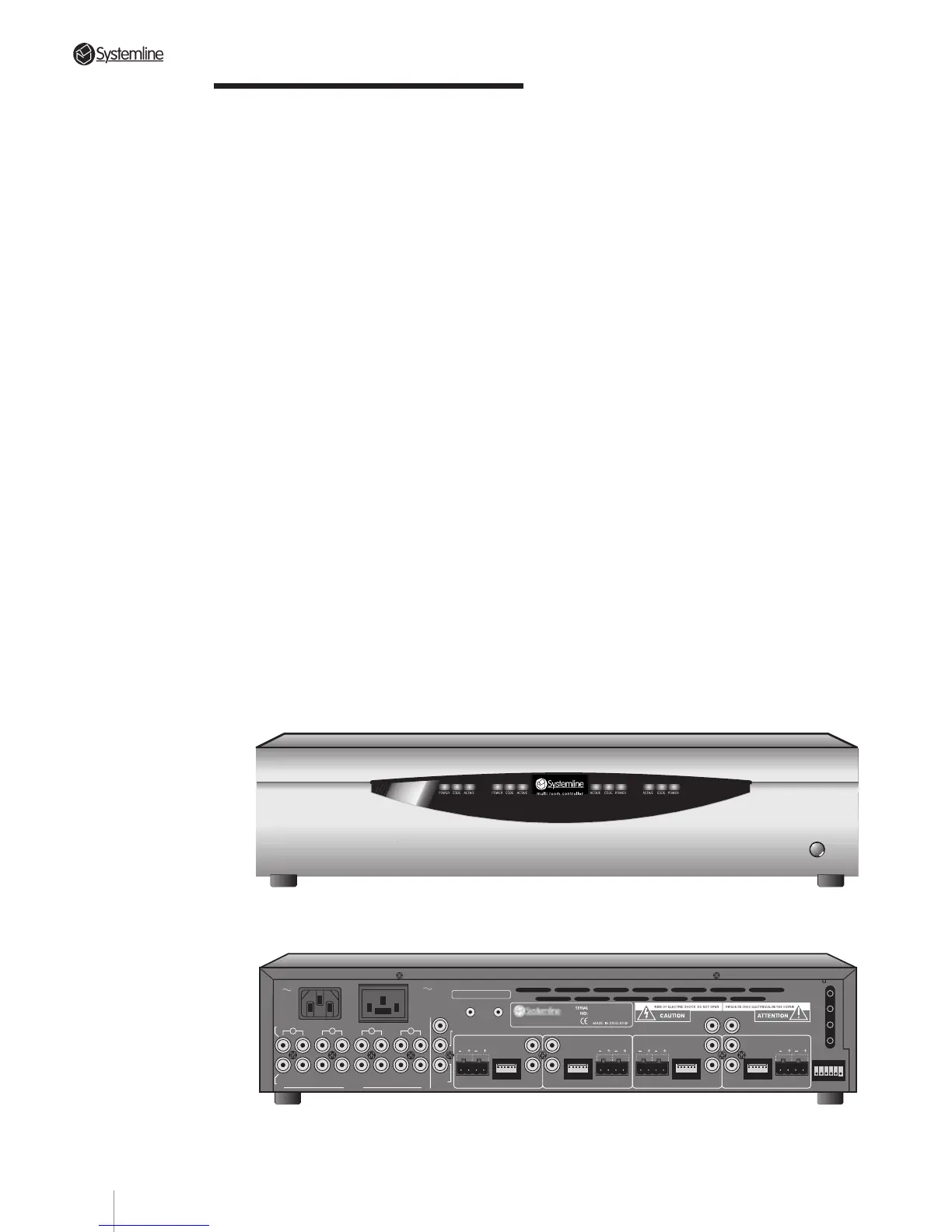

2.1 S4.3 Controller
The S4.3 Controller is the heart of the
S4.3 Controller Multi-Room Control
System. It features:
•Four separate microprocessor-controlled
stereo preamplifier/power amplifier
sections, one for each remote zone
•PHONO inputs for up to four sources
•“Buffered loop through” PHONO outputs
for connection to additional controllers or
main system amplifier
• PHONO line level preamplifier outputs
(Fixed or variable output)
Four separate plug-in Line Drivers which
enable the volume output for each zone
to be configured as either variable or
fixed
• Quick Fit speaker plugs and sockets
• PHONO line level input/ output for paging
audio source
•Compatibility with industry standard,
screened CAT-5 cable using 6-way IDC
connectors (supplied)
•PHONO output for RC-5 remote
control protocol components (direct
connection via RC-5 bus)
•Four mini-jack IR emitter outputs
•One a.c. mains outlet with 400 W
capacity, switched to allow easy
remote control of total system
power if desired
•Front panel LED indicators for each
zone showing Power On/Off, status
and command pulse processing
•High power front panel IR “flood”
emitter to transmit remote zone
commands to associated source
components
•PHONO paging 'trigger' input for
activation by suitable telephone and
doorbell systems
Section 2 • Component Description
4
3
2
RC-5
N/C
AUDIO IN
AUDIO
OUT
IN
RIGHT
INPUTS
LEFT
OUT
IN
OUT IN
OUT
IN
OUT
ZONE B
SPEAKERS
RIGHT
LEFT
ZONE C
WE1
WE2
WE3
WE4
TX-FORMAT
ZONE A
DATA
Conforms to EN55013 & EN50082-1.
E.M.C. Test Certificate No. 300/95
T
X
O
U
T
P
U
T
S
ZONE D
S4.3 MUTI-ROOM
CONTROL
LINK
IN OUT
230V AC
50Hz
POWER CONSUMPTION: 430W MAX
PRE/LINE-OUTPRE/LINE-OUTPRE/LINE-OUTPRE/LINE-OUT
TRIGGER
PAGING
AC OUTLET
230V 50Hz
SWITCHED TOTAL:
460W MAX
1
123456
DATA
123456
DATA
123456
DATA
123456
SPEAKERS
RIGHT
LEFT
SPEAKERS
RIGHT
LEFT
SPEAKERS
RIGHT
LEFT
123456
AB CD
3
