Air Chiller System (ACS) and Chiller Panel Getting Started Guide for the DMA 850 Page 44

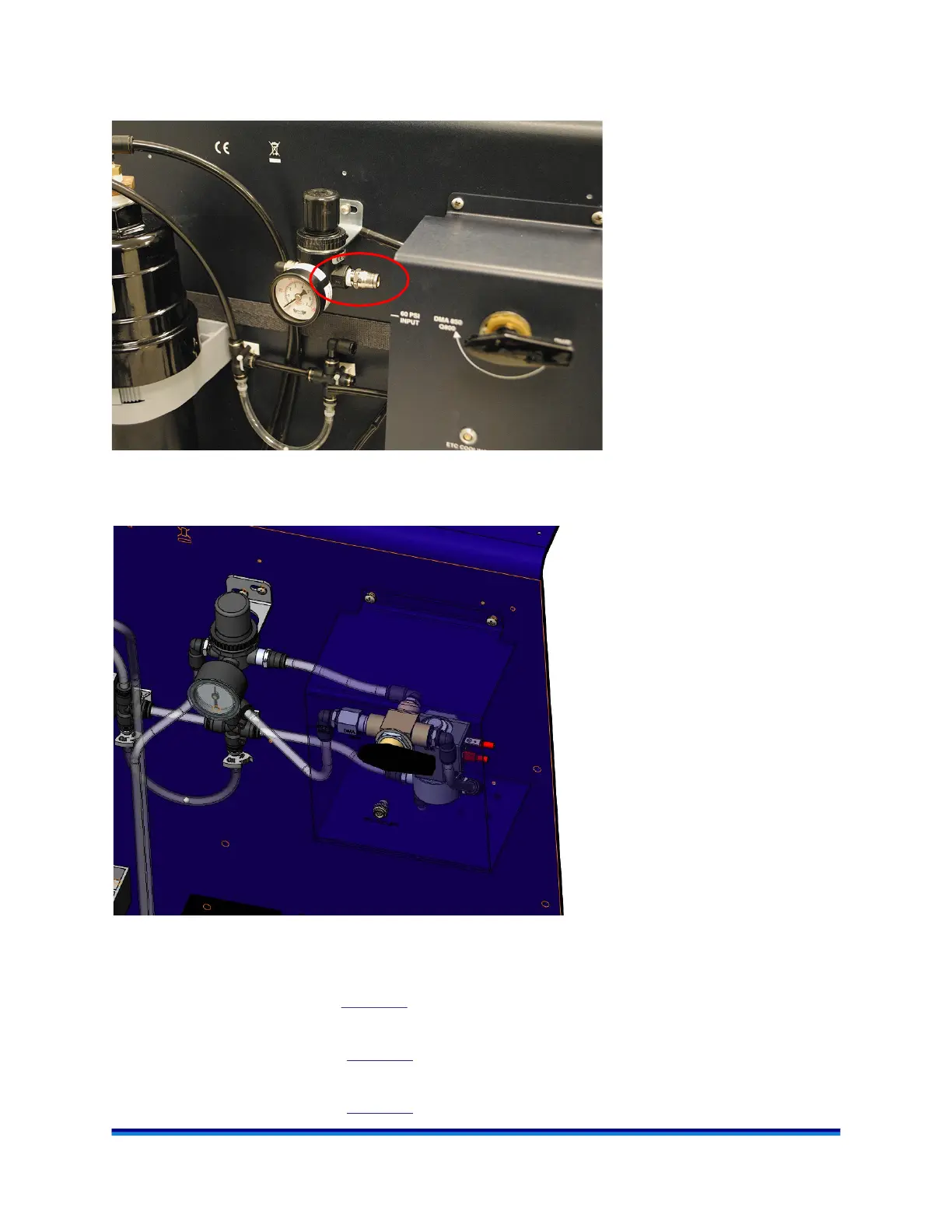

6 Install the included 8 mm push-to-connect fitting into 1/4” NPT thread on the right side of the pressure
regulator.
Figure 42 Install push-to-connect fitting.
7 Connect the tubing as follows:
Figure 43 Connect tubing.
a Take the free end of the top tube in position #1a and connect it to the push-to-connect fitting on the
regulator (position #1b) (Figure 43
).
b Take the free end of the center tube in position #2a and connect it to the elbow on top of the cross
connector (position #2b) (Figure 43
).
c Take the free end of the bottom tube in position #3a and connect it to the right side of the cross
connector (position #3b) (Figure 43
).
1a
3a
1b
2a
2b
3b
