TMA Q Series Getting Started Guide
46
4. Slide the balance enclosure into position.
5. Replace the screws, two on each side, that hold the balance
enclosure in place.
6. Reposition the thermocouple so that the tip of the thermo-
couple bends at a 90° angle and lies flat against the sample
platform. It should be close to, but not touching the
sample.
7. Replace the spring clip to hold the thermocouple in place.
8. Place the stage shield on the stage, aligning the slot in the
bottom over the thermocouple wire.

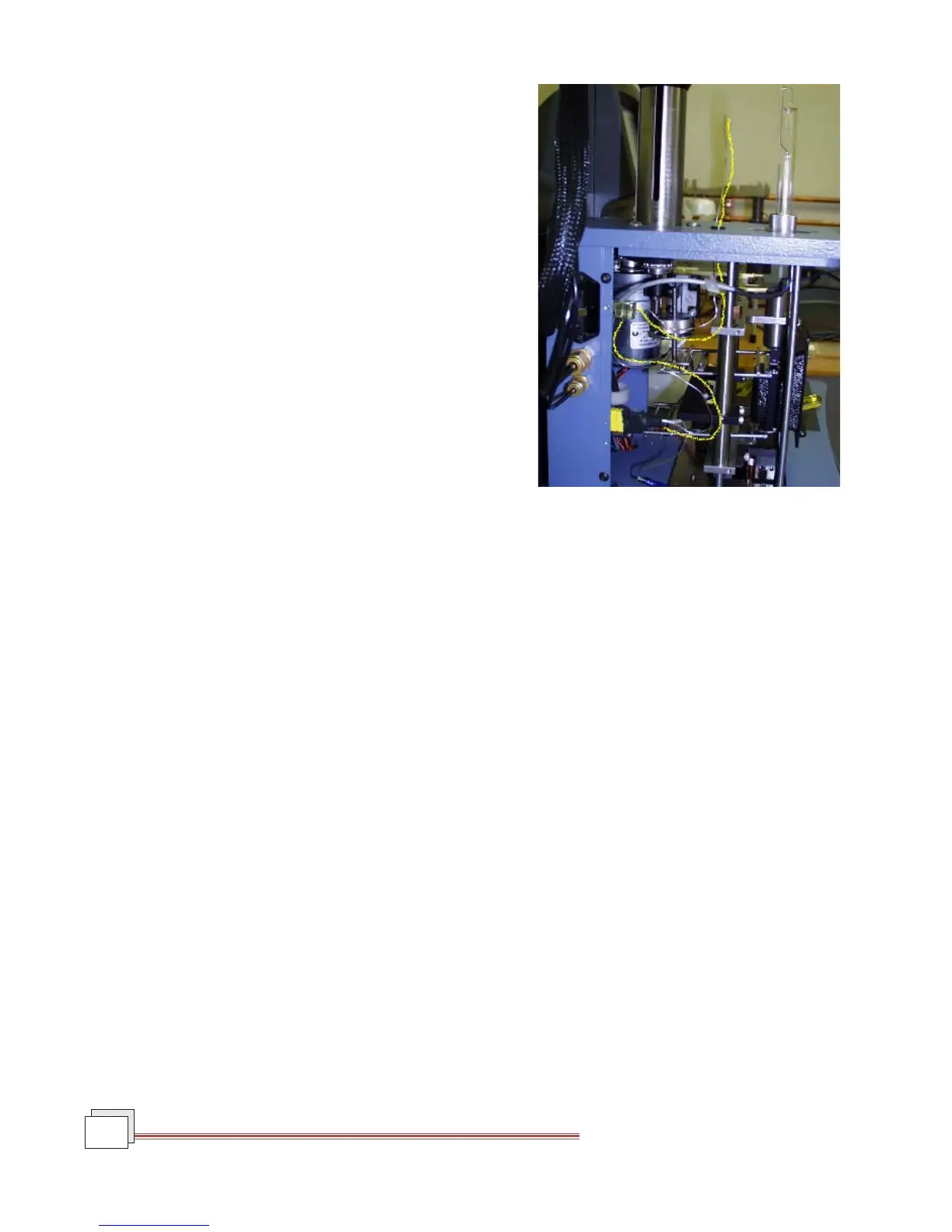

Threading the Thermocouple
