Display Accesses the display screen, which displays the signals from the instrument
such as signal display, real-time plot, instrument information, etc.
Calibrate Displays the calibration functions available for this instrument.
QNX/Platinum
TM
Control Menu

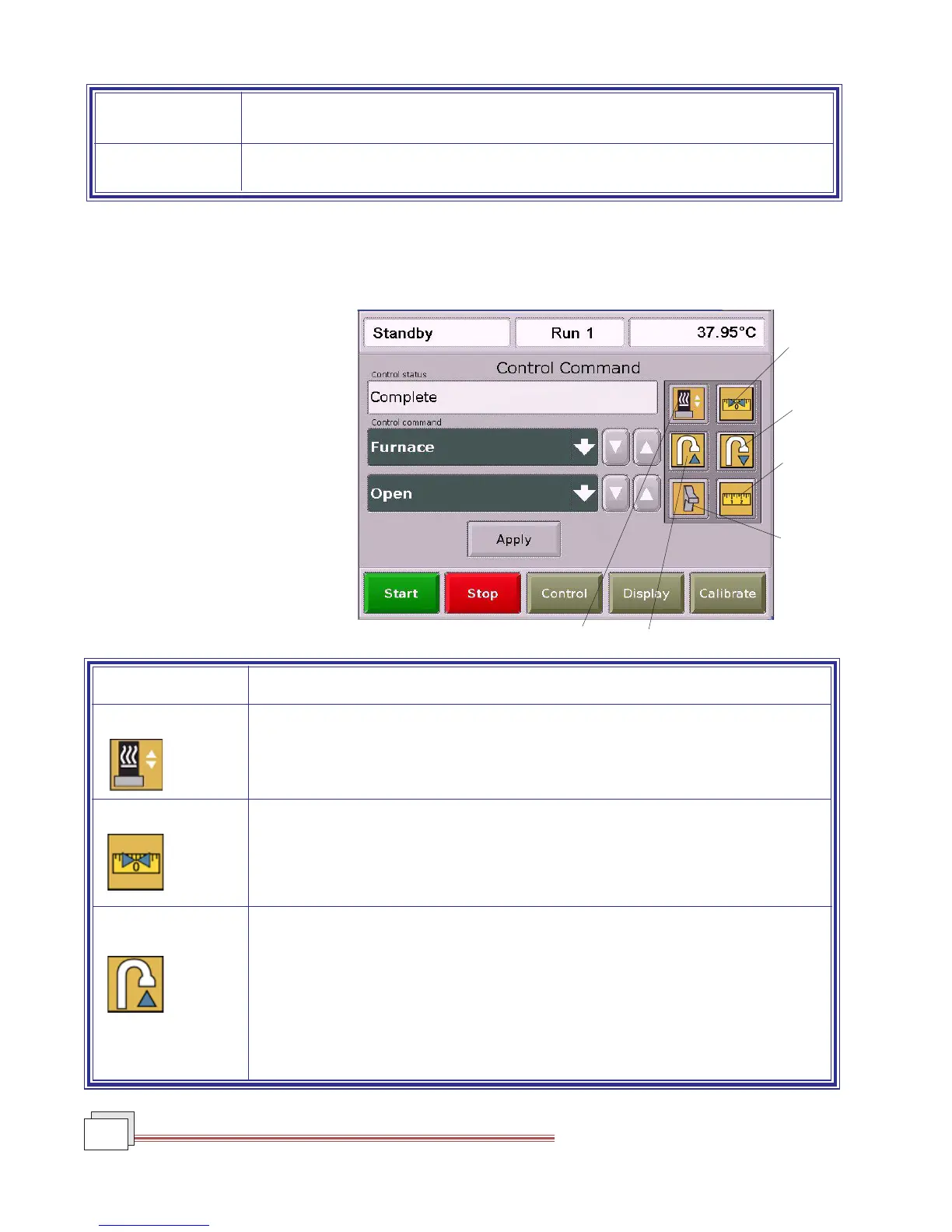

The Control Menu (see the figure to
the right) is accessed by touching the
Control key at the bottom of the touch
screen. A brief description of each
control command is provided in the
table below.
NOTE: Most of the
commands shown
are not available
during an active
experiment.
Select the desired function either from
the drop-down list of Control Com-
mands or by pressing the icon. Then
press Apply to initiate the action.
Control Command Description
FURNACE Toggles between the furnace closed (up) and furnace open (down) functions,
depending on where the furnace is when you press the key. This key can be
pressed while the furnace is moving, to reverse the direction of movement.
ZERO LENGTH Initializes the automeasure system. This operation should be performed before
a sample is loaded and any time the probe or stage is changed.
PROBE UP Used to “open” the probe, this key raises the probe 3 mm, the range of the LVDT,
when pressed one time. When the key is pressed a second time, mechanical
action occurs, moving the probe and LVDT coil to their maximum upward
position.
If the probe is moving down and PROBE UP is pushed, the probe will stop and
reverse its direction.
(table continued)
Zero
Length
Zero
Length
Measure
Shutdown
Furnace Probe Up
