tae TA-U110 User Manual

TA-U1...U280
Instruction and Operating Manual
Misprints and technical changes reserved
21
3.3.9 Encoderboard "Resolver 0403" (12 Bit)
X5 Connection to controlboard
S1 GND Connections of the input terminals
33,35 and 38 (Z,/Z,AB)
BR1 Motor temperature sensor terminal 22
open: thermo switch and PT100
closed: KTY and PTC
BR2 Motor temperature sensor terminal 21
open: thermo switch and PT100
closed: KTY and PTC
BR3 Zero point signal Z1
Pin 1-2 closed: Zero point signal from
encoder
Pin 2-3 closed: machine proximiti switch,
factory adjustment
BR4 Scan frequency (NC) factory adjustment
open
BR5 Scan frequency (NC) factory adjustment
open
BR6 Frequency output terminal 39, track A
Pin 1-2 closed: actual speed value,
factory adjustment
Pin 2-3 closed: special
funktion
BR7 Frequency output terminal 40, track B
Pin 1-2 closed: actual speed value,
factory adjustment
Pin 2-3 closed: special funktion
BR8 Motor temperature sensor terminal 21
open: thermo switch and PT100
closed: KTY and PTC
BR9 Motor temperature sensor terminal 22
open: thermo switch and PT100
closed: KTY and PTC
LD1 Green - +5V
29
28
27
26
25
24
31
30
35
36
37
38
39
40
41
34
33
32
23
22
21
4
3
2
1
X5
Encoder Resolver 0403
TP18
TP17
TP14
TP13
TP9
TP7
TP6
TP5
TP4
TP3
TP2
TP1
TP19
TP11
TP18
LD1
BR6
BR4
DIP switch S1
(Factory adjustment)
refer to chapter 5.3.3
OFFON
1
2
3
4
0 000
BR3
BR9BR8
BR2
BR1
S1
BR5
BR7

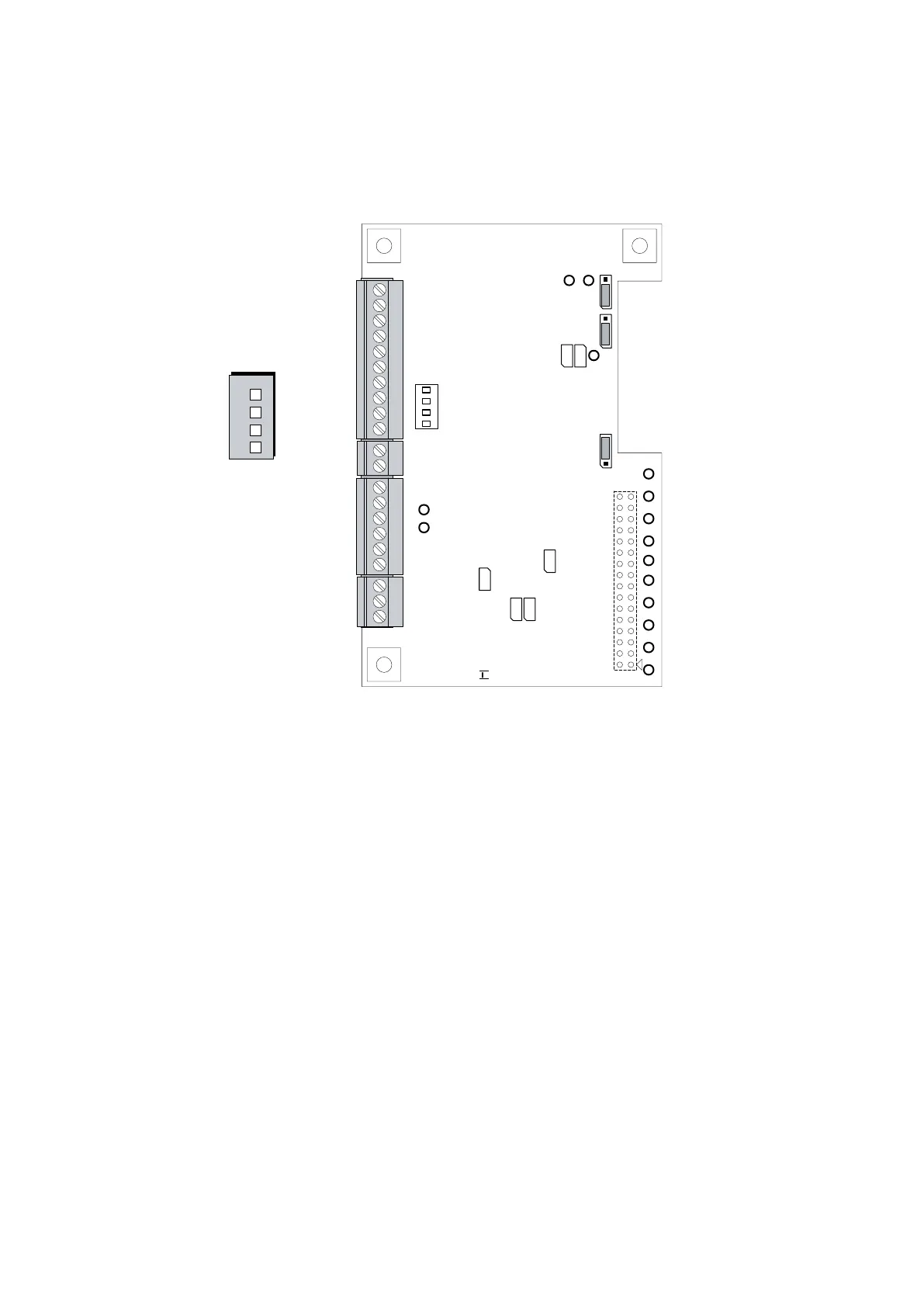

Ilustration of Jumper BR on board, is factory adjustment
3
2
1
3
2
1
3
2
1
