18. Applications
18.1 RAMP & SOAK
z RAMP：
I. SET2.1=1ÎTo display AL3
II. SET4.1=1ÎTo display ALD3
III. ALD3=9ÎOpen RAMP option
IV. Then, AL3 will not display. It was replaced by RAMP.
RAMP
0 0.0 0
Range：00.00 ~ 99.99(℃/ min)
(If RAMP is not used，please set
ALD3 to 0)
z SOAK：
I. ALD1 / ALD2=19
Î To use Sock Timer.
II. AL1 / AL2 will display as below:
AL1
0 0 . 0 0
Range：00.00 ~ 99.59(Hour.Minute)
z Example：

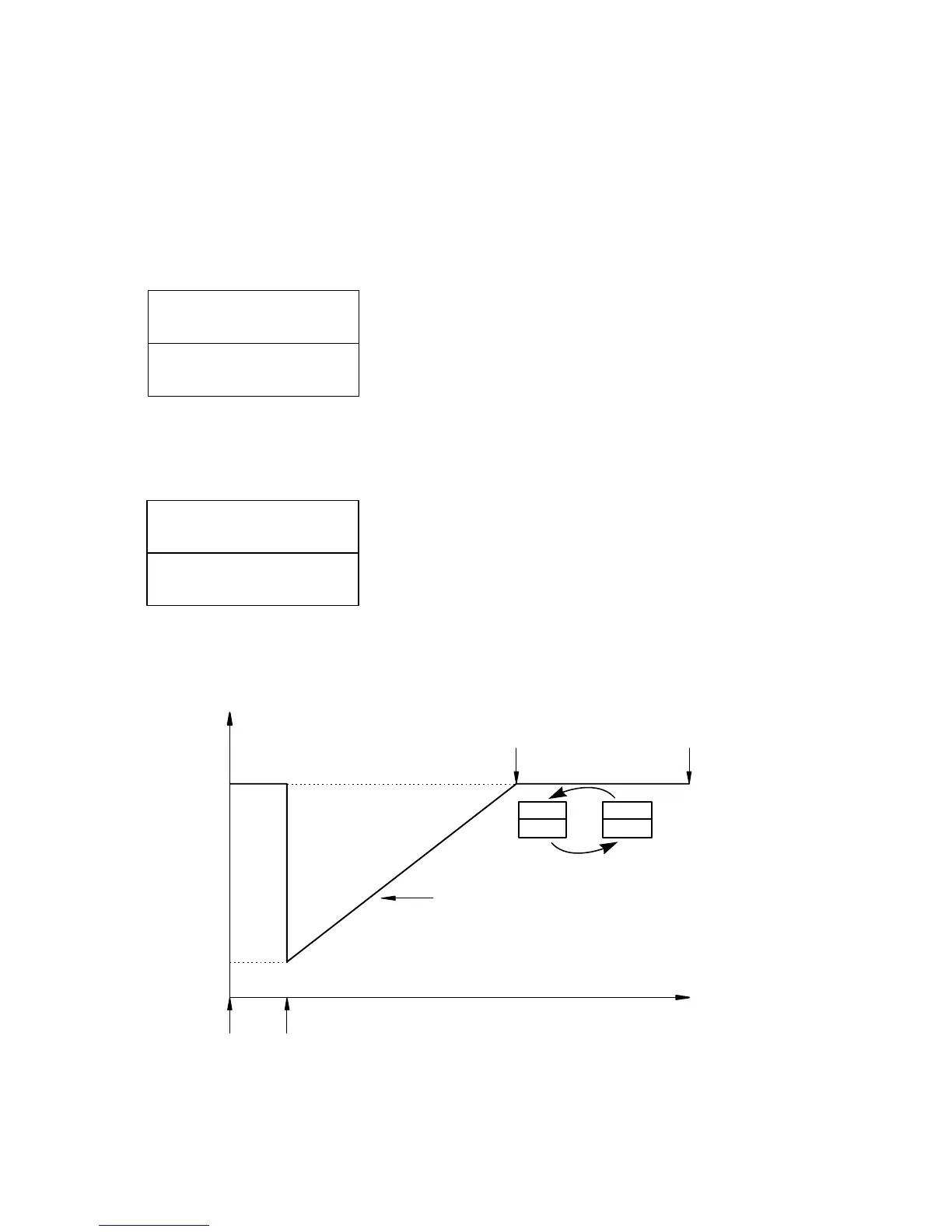

SV=100℃，RAMP=10.00 ( /min)℃ ，AL1=00.10 min，PV=25℃
100℃
PV=25℃
℃
ｔ
5 seccons(Start RAMP function)
Time on
if PV > = SV(100℃)
Time up
AL1 on
SV=PV (When start RAMP function)
SV=SV+RAMP
AL1
00.10
00.01
00.10
Sock Timer
counts
1sec.
Power on
