1. Notice before start-up
FY series controller has got the CE approvals as below:
LVD： D/N EN61010-1
EMC： EN 55 022 1994 /A1：1995/ A2：1997
EN 61 000-3-2： 1995 / -3-3： 1995
EN 61 000-4-2： 1995 / -4-3： 1996 / -4-5： 1995 / -4-6
1996 / -4-8： 1993 / -4-11：1996/ EN 50 204： 1995
Please confirm the specification of controller is to totally with your requirement before
using it, also read this manual in detail.
Danger
1. Danger! Electric Shock!
DON'T touch AC power wiring terminals when controller has been
powered!
Keep the power off until all of the wirings are completed!
Warning
1. Please confirm the AC power wiring to controller is correct, otherwise it would be
caused aggravated damage on controller. ( FY400 connecting with Pin 1 and 6,
FY100/FY101/FY600/700/800/900 with Pin 1 and 2).
2. Be sure to use the rated power supply (AC85~265V or DC24V), otherwise it would be
caused aggravated damage on controller.
3. Please confirm wires are connected with correct terminal (Input, Output).

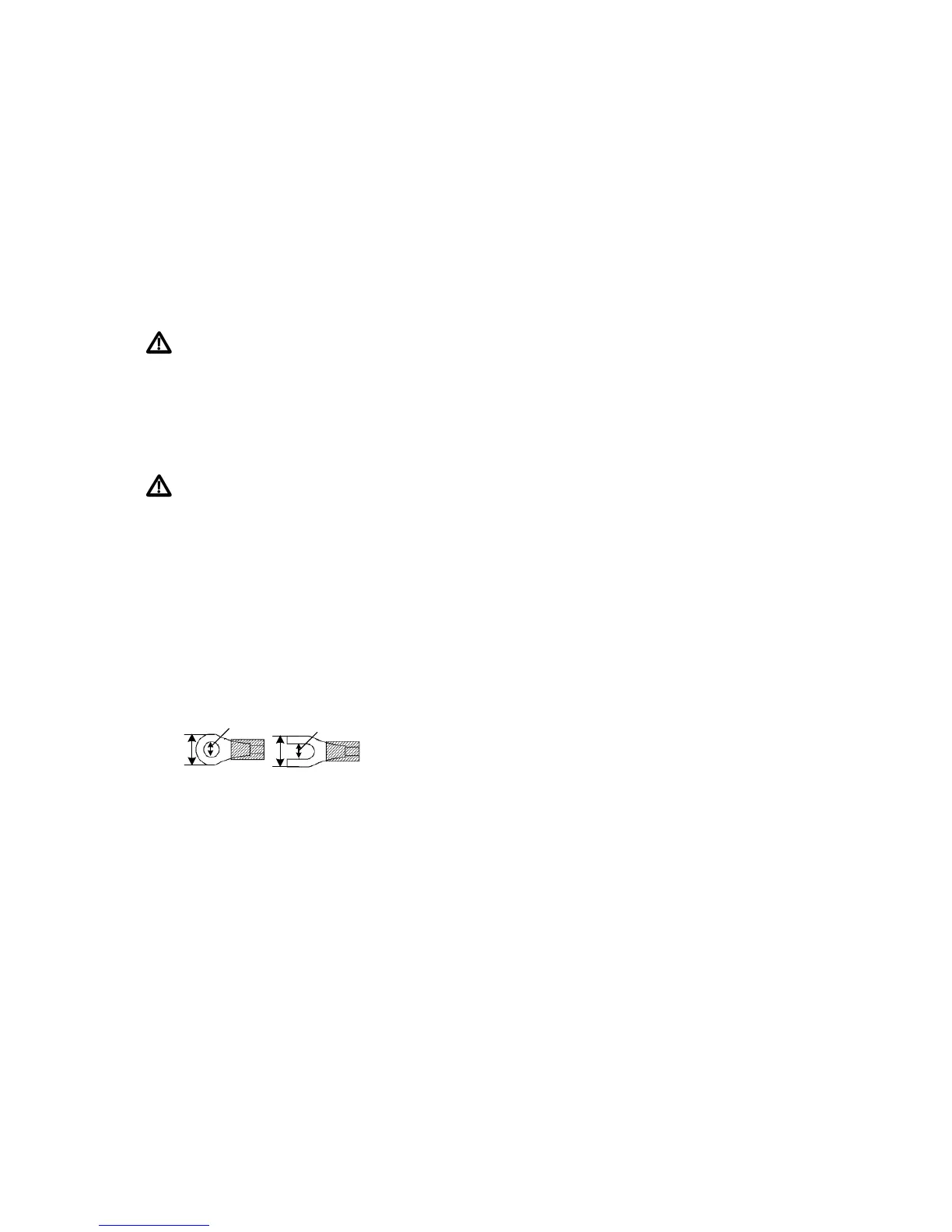

4. Use M3 screw-compatible crimp-on terminals with an insulation sleeve, as shown
below
3.2mm
3.2mm
Torque : 0.4 N.m (4kgf.cm)
5. Avoid installing controller in following spaces:
I. A place where the ambient temperature may reach beyond the range
from 0 to 50℃
II. A place where the ambient humidity may reach beyond the range
from 20 to 90% RH.
III. A place where the controller likely to come into contact with water, oil,
chemicals, steam and vapor.
IV. A place where the controller is subject to interface with static
electricity, magnetism and noise.
6. For thermocouple (TC) input, use shield compensating lead wire.
7. For RTD input, use shield wires which have low resistance and no
resistance difference between the 3 wires.
