56
18.5 3
ψ

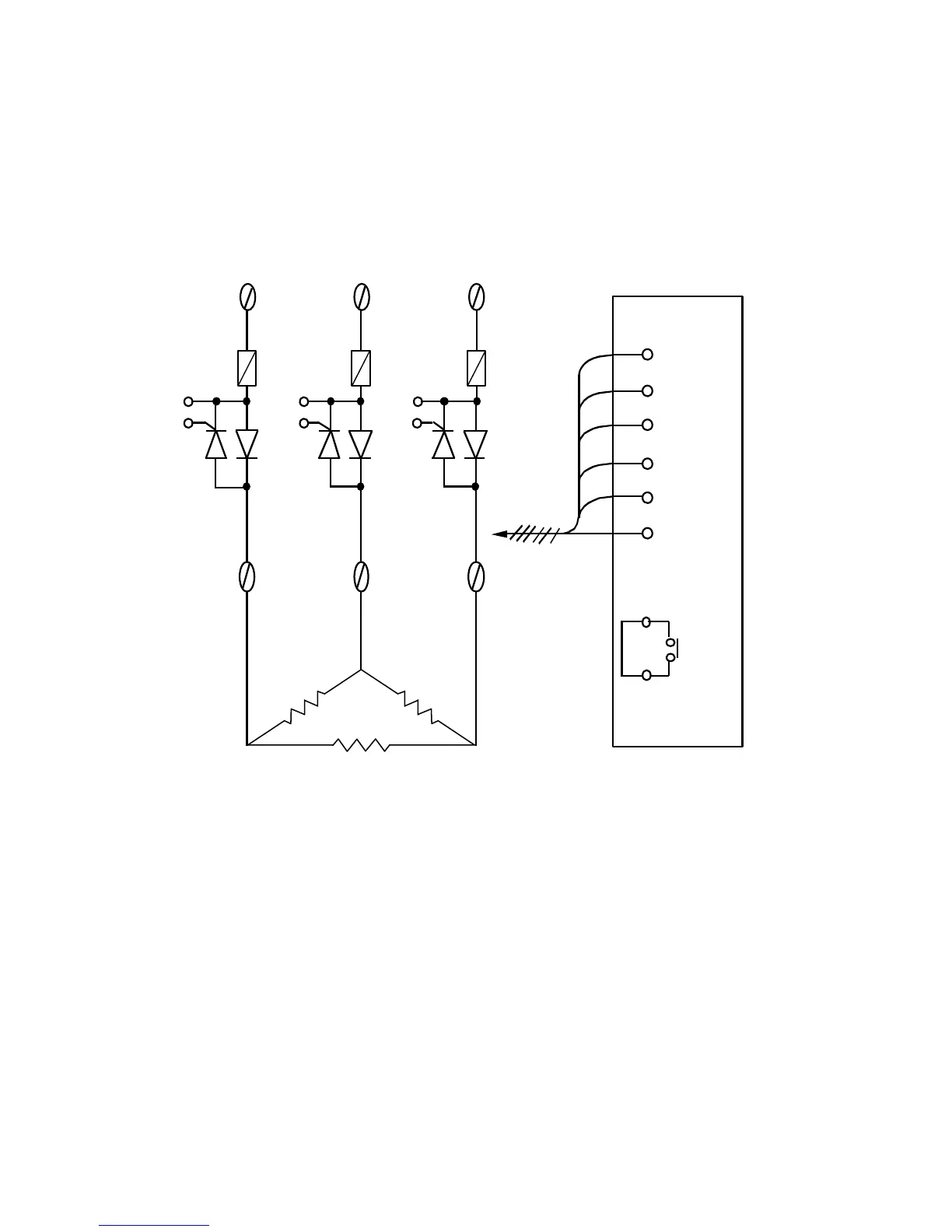

Phase angle control (B
y DIODE/SCR module)
z
A
vailable
Models
：
FY900 / PFY900
z
OUT1:
3
ψ
SCR phase angle control
z
Parameter
setting
：
OUTY=5
CLO1=0
，
CHO1=4500 only if use for resistance load
CLO1=0
，
CHO1=4000 if use for inductor load
CONTROLLER
Short
K 1
G 1
K 2
G 2
K 3
G 3
T
S
R
FA
ST
FUSE
U
V
DIODE/SCR
Module
W
K 2
G 2
K 3
PROT
G 3
G 1
3
φ
LOAD
K 1
57
59
Table of Contents
Default Chapter
2
Table of Contents
2
1 Notice before Start-Up
4
2 FU Series
5
Specifications
5
Outer Dimension
6
Terminal Wiring Diagram
7
Assembly & Wiring
8
3 FY Series
12
4 Terminal Arrangement
12
FY400 / FU48 Terminals ( 48Mm X 48Mm , DIN 1/16 )
12
FY600 Terminals ( 96Mm X 48Mm , DIN 1/8 )
13
FY700 / FU72 Terminals ( 72Mm X 72Mm)
14
FY800 / FU86 Terminals ( 48Mm X 96Mm , DIN 1/8 )
15
FY900 / FU96 Terminals ( 96Mm X 96Mm , DIN 1/4 )
16
FY100 Terminals ( 175Mm X 110Mm )
17
FY101 Terminals ( 90Mm X 90Mm )
18
5 External Dimension and Panel Cutout〈Unit：MM
19
Fy100
19
Fy101
19
Fy400~900 & Fu48~96
20
6 Parts Description
21
7 Operations
22
Power on
22
Change the Set Value (SV)
22
Change the Alarm Value
22
Autotuning (AT)
23
Programmable RAMP / SOAK (Only Available for PFY Model)
24
8 Operation Levels
25
Levels Diagram
25
Lock Function
25
9 Parameters
26
Level 1 (User Level)
26
Level 2 (PID Level)
27
Level 2 Parameters Display / Hiding Condition
27
Description of Parameters
28
Level 3 (Input Level)
29
Level 4 (SET Level)
31
How to Hide Parameters (Use SET1~SET7)
31
Special Functions (Use SET8 / SET9 / SET0)
32
Remote SV Type Selection
33
Output Mode Selection (Use OUTY)
33
Modify Caution
33
Program Level (Only Displayed in Programmable Controller)
34
Description of Parameters
34
Description of Operation
35
10 Input Type Table (INP1 Selection)
36
11 Alarm
38
Alarm Time (ALT1/ALT2/ALT3)
38
Seta
38
Alarm Mode (ALD1 / ALD2 / ALD3)
39
Heater Break Alarm (HBA)
40
HBA Wiring Example
40
HBA Function Description
40
HBA Setting Procedure
41
Parameters for HBA Function
41
Activated Conditions of HBA
42
Remarks
42
CT Specifications
43
SC-80T Specifications
43
SC-100T Specifications
43
SC-80T Linear Diagram
44
13 Error Codes
45
14 Modify Input Type (“TC” “RTD”)
48
Fu48~96
48
Fy100~Fy101
48
15 Modify Input Type : Linear Input (Ma ,V)
50
FY400~900 & FU48~96 Hardware
50
FY100/101 Hardware
51
Calibration
52
16 Modify Output Type: Relay, SSR, 4~20Ma
53
17 Modify Output Mode: OUT1/ALARM, OUT1/OUT2
53
18 Applications
54
Ramp & Soak
54
TTL Communication：sv Output and RATE Function
55
Phase Angle Control (by SCR Module)
56
Phase Angle Control (by TRIAC)
57
Phase Angle Control (by DIODE/SCR Module)
58
1Ψzero Crossing Control (by SCR Module)
59
3Ψzero Crossing Control (by TRIAC)
60
Wires Proportional Motor Valve Control
63
Wiring Diagram of PC Communication
64
