Taie FU400 - Zero; Phase Control (Cont. 2)

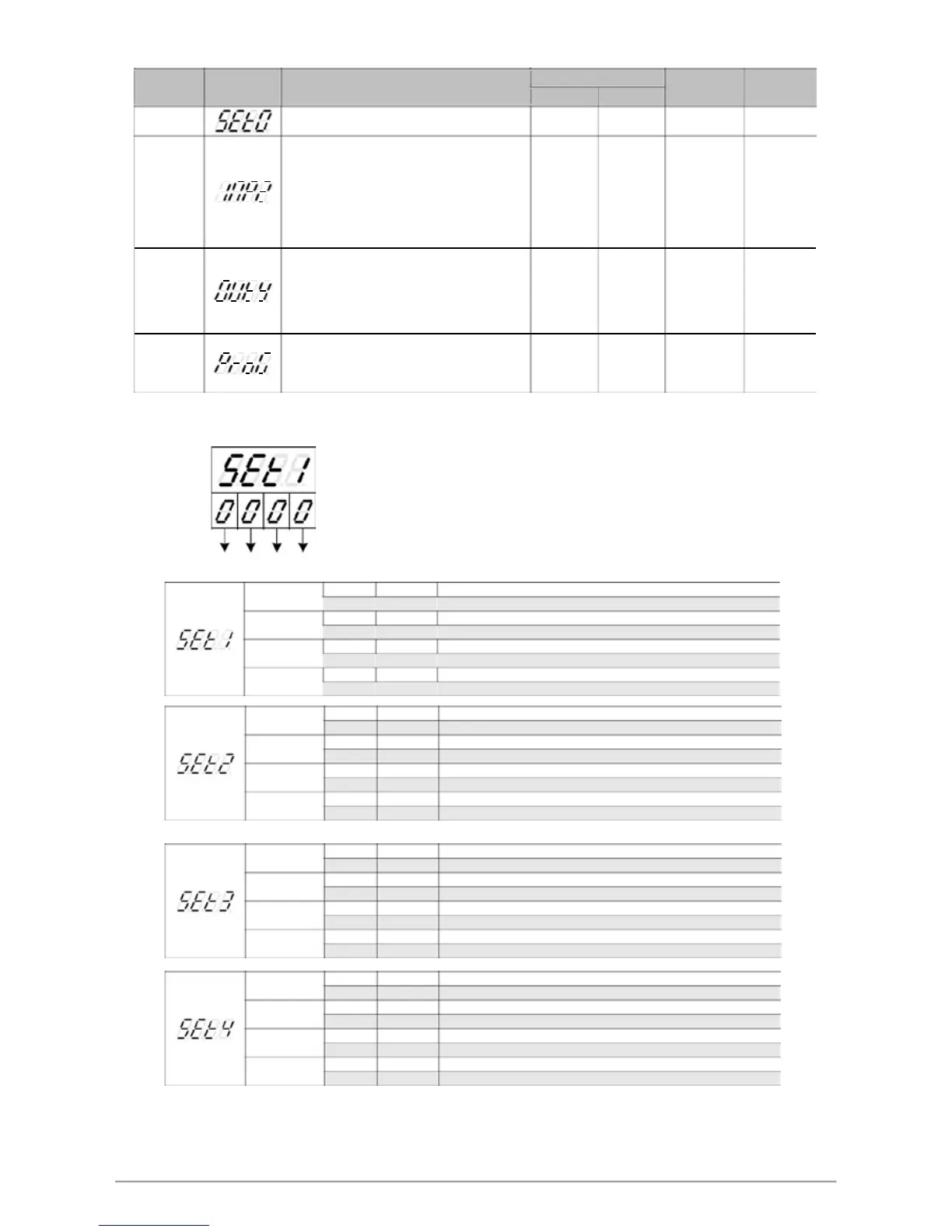

10.11 LEVEL_4 Parameter
tnetnoC lobmyS retemaraP
Range
Default
Hide/
MAX MIN
Display
SET0 --- 00001111 elbasid/elbane noitcnuF ---
Sub input type selection
0 : none
1 : 10~50mV / 4~20mA / 1~5V / 2~10V
INP2
(remote SV use)
4 0 0 ---
2 : 0~50mV / 0~20mA / 0~5V / 0~10V
(remote SV use)
3 : valve feedback
4 : CT input
Hardware drive selection
0 : single output control
OUTY
1 : dual output control
4 0 0 ---
2 : valve control with feedback
3 : valve control without feedback selection
4 : single phase control
Program function enable
PROG
0 : OFF , SV source from keypad or
ON OFF OFF ---
communication
1 : ON , SV source from program
10.12
Parameters Hide/Display Table on Level 4
SET1 _4 _3 _2 _1
SET1_1
0
Hide OUTL
1 Display OUTL
SET1_2
0
Hide AT
1
Display AT
SET1_3
0
Hide AL1
1
Display AL1
SET1_4
0
Hide AL2
1
Display AL2
SET2_1
0
Hide AL3
1
Display AL3
SET2_2
0
Hide ANL1 ANH1 DP
1 Display ANL1 ANH1 DP
SET2_3
0
Hide LSPL USPL
1
Display LSPL USPL
SET2_4
0
Hide ANL2 ANH2
1
Display ANL2 ANH2
SET3_1
0
Hide ALD1
1 Display ALD1
SET3_2
0
Hide ALT1
1 Display ALT1
SET3_3
0
Hide ALD2
1 Display ALD2
SET3_4
0
Hide ALT2
1 Display ALT2
SET4_1
0
Hide ALD3
1
Display ALD3
SET4_2
0
Hide ALT3
1
Display ALT3
SET4_3
0
Hide HYSA
1
Display HYSA
SET4_4
0
Hide CLO1 CHO1
1 Display CLO1 CHO1
29 FY/FU operation manual
