11.2 Retransmission
Description
The retransmission function of the FY series controller can provide digital values for parameters such as SV or PV etc.
Analog signals are transmitted to external devices according to the set range (EX: PLC AI module, inverter, etc.).
transmission output signal selectable: 4~20mA, 0~20mA, 0~5V, 0~10V, 1~5V, 2~10V

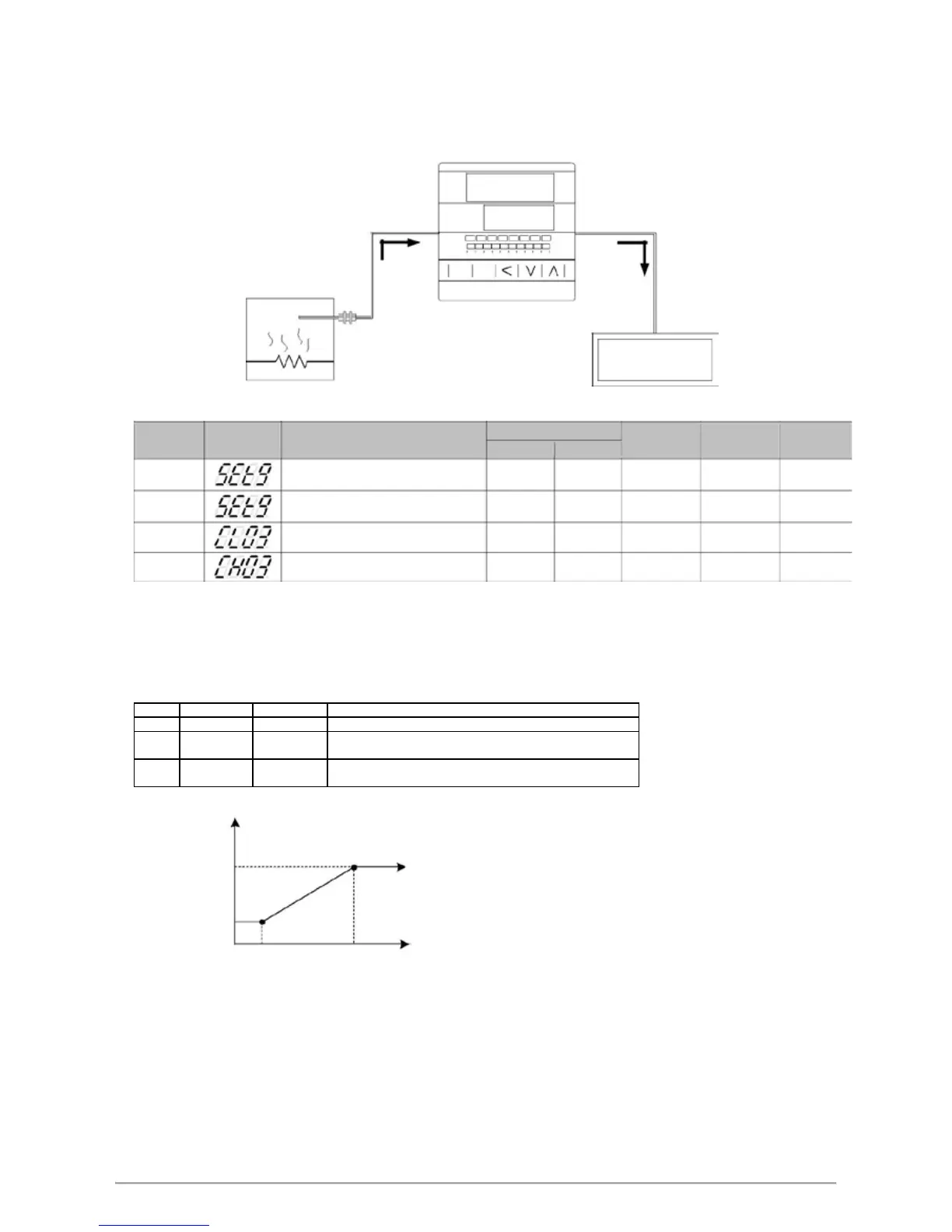

Function Diagram
PV
100.0
SV
200.0
Sensor input Retransmission outpu
t
OUT1 OUT2 ATAL1 A L2
AL3M AN
PRO
OUT1 %
0 20 40 60 80 100
Electric
SET A/M
furnace
TAIE
FY900
Sensor
12.00
mA
ammeter
Parameter
Parameter Symbol Content
Range
Default Level
Hide/
yalpsiD NIMXAM
SET9.3
0 : Retransmission SV disable
1 0 0 Level 4 ---
1 : Retransmission SV enable
SET9.4
0 : Retransmission PV disable
1 0 0 Level 4 ---
1 : Retransmission PV enable
CLO3 Retransmission zero calibration 9999 0 0 Level 3 SET5.2
CHO3 Retransmission span calibration 9999 0 3600 Level 3 SET5.2
Examples
Assume the input range (LSPL & USPL) = -50.0~600.0 retransmit PV
When the PV value is between -50.0 and 600.0, the retransmission signal is based on the PV value,
and the linear output analog signal is presented.
When the PV is less than -50.0, the retransmission signal remains at 4mA
When the PV value is greater than 600.0, the retransmission signal remains at 20mA
Parameter setting
Level Paramete
r
Set value Description
3 SET9.4 1 Retransmission PV
3 CLO3 3133
Retransmission si
g
nal low point calibration value
(each controller calibrate value is different)
3 CHO3 3508
Retransmission si
g
nal hi
g
h point calibration value
(each controller calibrate value is different)
mA
20
Measured
value(PV)
4
0
Scaling value
50.0(LSPL) 200.0(USPL)
Notes
1. To order TRS function, please confirm the type of retransmission output signal and retransmit signal range.
2. The user can select the source to be transmitted according to the parameter SET9.4 or SET9.3. The factory default is
to retransmit the PV.
3. Modify the parameter INP1/UNIT will reset the retransmission range.
4. CLO3 & CHO3 are the calibration parameters of the re-transmission signal. It has been calibrated before leaving the factory.
Do not change this parameter value.
5. The user only needs to set SET9.4 or SET9.3, the rest of the parameters will be set & calibrated at the factory.
33 FY/FU operation manual
