10.5

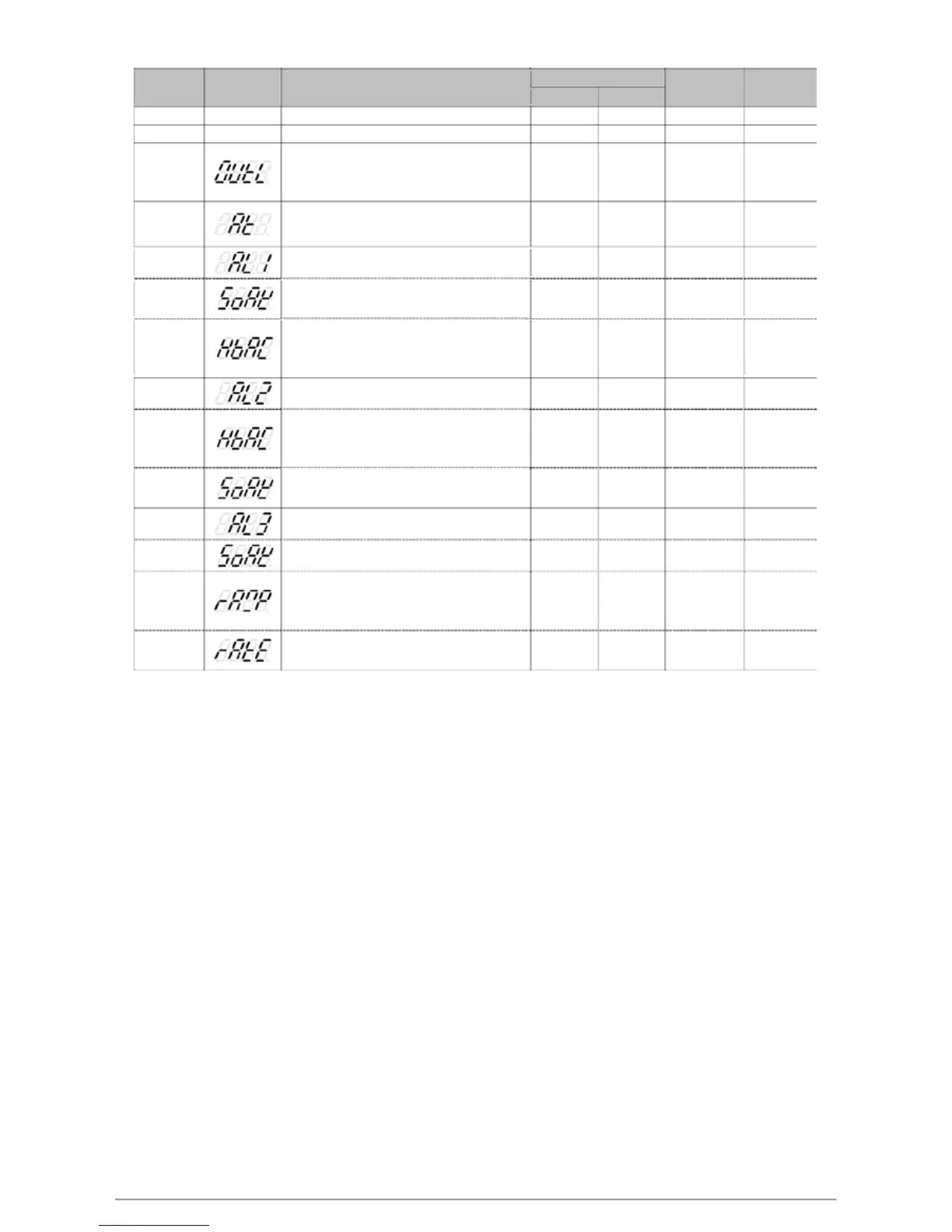

LEVEL_1 Parameter
Parameter
Symbol
Content
Range
Default
Hide/
MAX
MIN
Display
PV
---
LPSU eulav ssecorP
LSPL
--- ---
SV
---
LPSU eulav teS
LSPL
--- ---
High limit setting of manipulated value main
OUTL
output
100.0 0.0
100.0
SET1.1
when PID gain > OUTL use OUTL as
manipulated value
AT
Auto-tuning execute selection
0 : NO PID control
YES NO NO
SET1.2
1 : YES execute auto tuning
*AL1
Alarm1 set value
9999 -1999
1.0
SET1.3
(Please refer to Chapter 12)
SOAK
Alarm1 soak time
99.59
0.00 0.10
ALD1=10
or
Time format : hr.min
ALD1=19
HBA current setting value
INP2=4
HBAC
Upper : heater current display
100.0
0.0 1.0
&
Down : current setting value
ALD1=9
unit : ampere(A)
*AL2
Alarm2 set value
9999
-1999
1.0
SET1.4
(Please refer to Chapter 12)
HBA current setting value
INP2=4
HBAC
Upper : heater current display
100.0
0.0 1.0
&
Down : current setting value
ALD2=9
unit : ampere(A)
SOAK
Alarm2 soak time
99.59
0.00 0.10
ALD2=10
or
Time format : hr.min
ALD2=19
*AL3
Alarm3 set value
9999
-1999
1.0
SET2.1
(Please refer to Chapter 12)
SOAK
Alarm3 soak time
99.59
0.00 0.10
ALD3=10
Time format : hr.min
The rate of change during SV ramp
ALD3=9
RAMP
operation
99.99
-19.99
10.00
&
format : °C / minute
SET2.1
(Please refer to Chapter 11.7)
RATE
Slave SV rate
9999
0
9999
SET2.1
&
RATE SV = SV x (RATE/9999)
SET0.2
* Automatically display corresponding parameters according to different setting conditions
EX1: When alarm1 is used as HBA function, original AL1 will become HBAC display
EX2: When alarm2 is used as SOAK_B function(ALDX= 19), original AL2 will become
SOAK display
EX3: When alarm3 is used as RAMP function, original AL3 will become RAMP display
FY/FU operation manual 22
